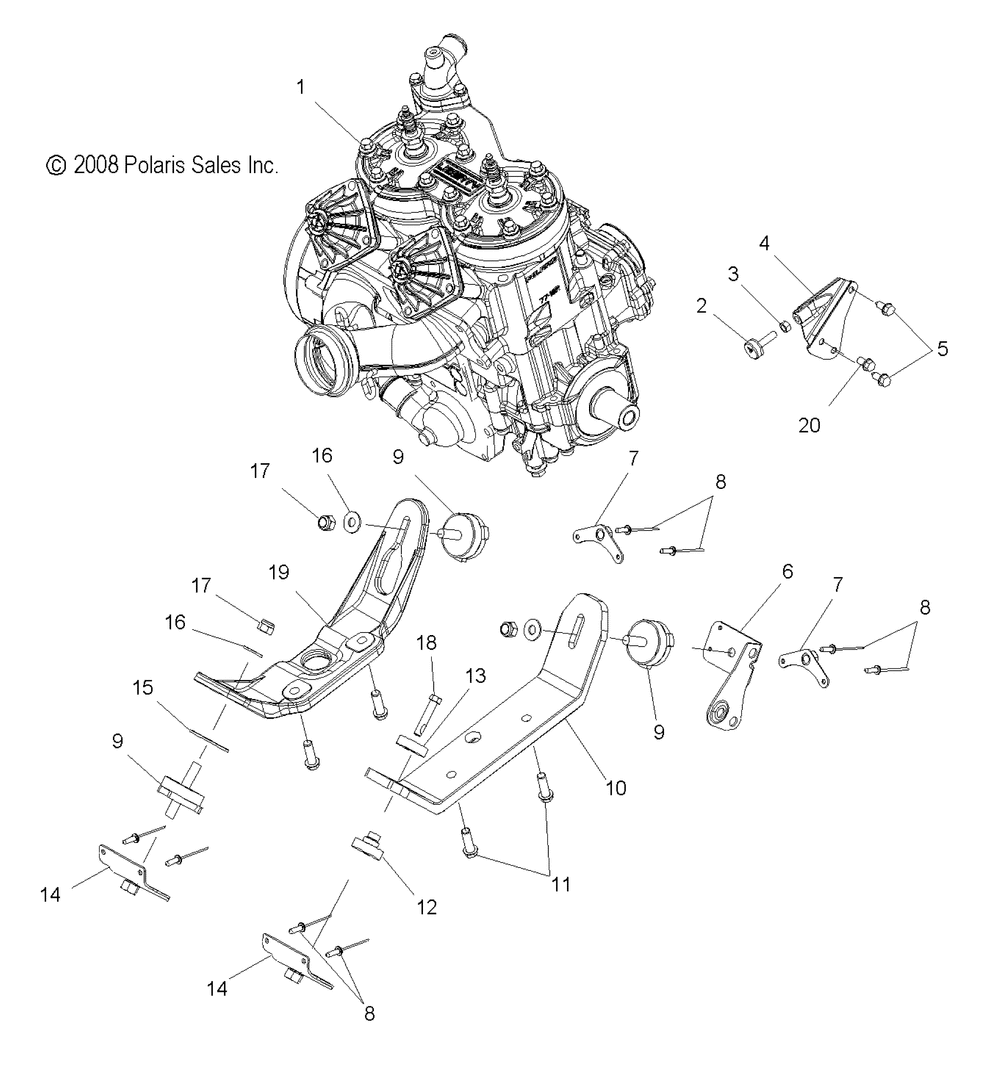

ENGINE MOUNTING - S10PT6HSL / HSM / HEM (49SNOWENGINEMOUNT09600TRG)

№	Наименование	Кол-во
1	KIT-SHT BLK S3468-6044-PU6H [600 IQ LX][600 IQ Dragon] NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is required for warranty consideration.	1
2	STOP-TORQUECOURSE3/8-16 1.50	2
3	NUT	1
4	WELD-TORQUE STOP	1
5	SCR-3/8-16X1-P30-SPEC-Y	2
6	WELD-TORQUE STOP/ENGINE MOUNT	1
7	WELD-NUT PLATE REAR	2
8	RIVETINTERLOCKZ(50) * (50 per pack)	8
9	ISOLATOR-RUBBER	3
10	STRAP-ENGINE MNTLHSDI	1
11	SCR-M10X1.50X35 HX/FL	4
12	MOUNT-ENGINE RUBBERBOTTOM 3/8	1
13	MOUNT-ENGINE RUBBER TOP3/8	1
14	ASM- CLINCH NUT PLATE	2
15	WASHERFLAT(10) (10 per pack)	1
16	WASHERFLAT(10) (10 per pack)	3
17	NUT NYLOK(10) * (10 per pack)	3
18	BOLT3/8-16X2.25HXCSGR8-YSPPT	1
19	STRAP-ENGINERHMACH	1
20	SCREW	1
