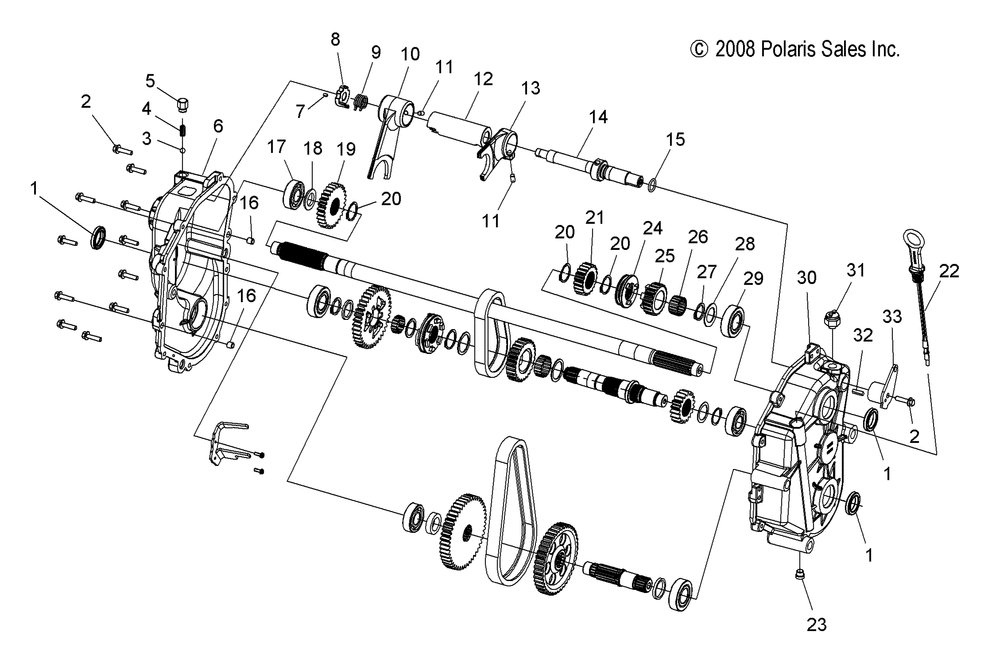

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| SUBSTITUTED BY 9990000 [Incl. 1-33 and All from Drive Train Gearcase [2 or 2] page.] | 1 | ||
| 1 | SEAL-DUAL LIP .0984X1.500X.25 | 3 | |
| 2 | SCR-1/4-20X1 HXFLG HD SERR-Y | 12 | |
| 3 | BALL DETENT (10) (10 per pack) | 1 | |
| 4 | SPRINGSHIFTER DETENT | 1 | |
| 5 | DETENT-EXTEN .750 9/16 HEX | 1 | |
| 6 | GEARCASERHWT | 1 | |
| 7 | KEY-1/8X1/4 | 1 | |
| 8 | SHIFT-INDEXWDT | 1 | |
| 9 | SPRING-TORSION W/T .100 SQWIRE | 1 | |
| 10 | SHIFT FORKLOW | 1 | |
| 11 | PIN-DOWEL .25X..625 | 2 | |
| 12 | SHIFT-DRUMWDT | 1 | |
| 13 | SHIFTFORKHIGH | 1 | |
| 14 | SHAFTSHIFT | 1 | |
| 15 | O RING | 1 | |
| 16 | KNOCK PIPE-.375X.286X.370 | 2 | |
| 17 | BRG-BALL 6204 C3 20X47X14 | 1 | |
| 19 | GEAR27T | 1 | |
| 20 | RING-RET 1.125X1.041X.050 | 3 | |
| 21 | SPROCKET19T | 1 | |
| 22 | O-RING | 2 | |
| 22 | STICK-OIL LEVEL INDICATOR | 1 | |
| 23 | PLUG-7/16-20W/MAG HX-PLATED | 1 | |
| 24 | DOGENGAGEHIGH NOTE: MUST ORDER WITH REF. 25 | 1 | |
| 25 | SPROCKET19T.75W NOTE: MUST ORDER WITH REF. 24 | 1 | |
| 26 | BRG-NEEDLE CAGE 25X31X17 | 1 | |
| 27 | RING-RET BSC EXT.984X.906X.078 | 1 | |
| 28 | WASHER-THRUST 1.007X1.542X.062 | 1 | |
| 29 | BEARING205W/O SEAL tahos_6205 | 1 | |
| 30 | GEARCASELH | 1 | |
| 31 | SWREV./NEUT.INDIC. | 1 | |
| 32 | KEY-3/16X3/4 | 1 | |
| 33 | WELD-BELLCRANKW/T | 1 |
