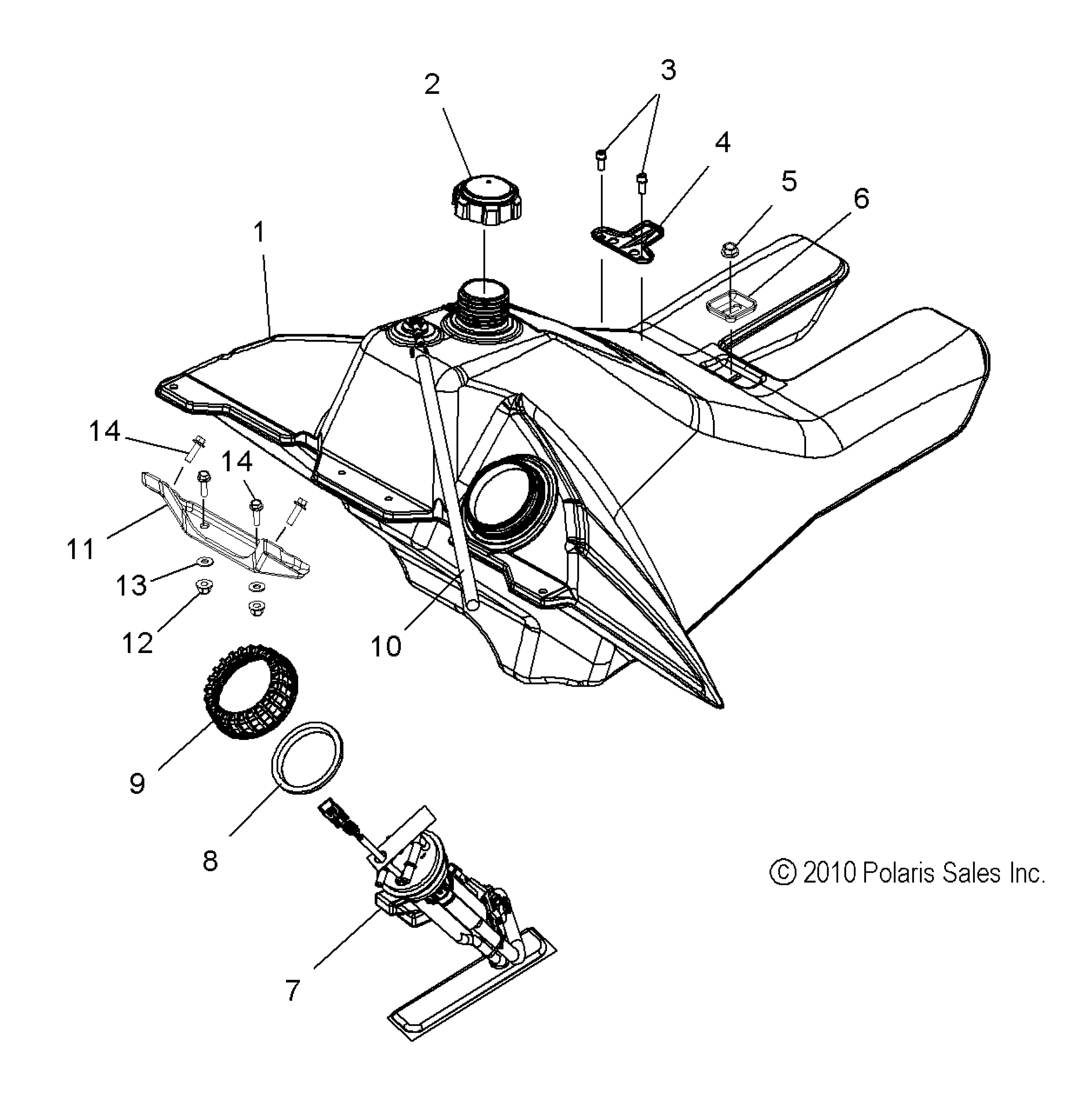

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | ASM-TANK FUEL SVC W/DECALS | 1 | |
| 2 | CAP-FUEL TANK"PREMIUM" | 1 | |
| 3 | SCREW(10) * (10 per pack) | 2 | |
| 4 | BRKT-SEAT MOUNT | 1 | |
| 5 | NUT-M6X1.0FLG-NYLOC-OLIVE D | 1 | |
| 6 | WASHER-FUEL TANK | 1 | |
| 7 | ASM-PUMP FUEL | 1 | |
| 7 | FLOAT-PLASTIC | 1 | |
| 7 | ASM-PICK-UPW/FILTER [Pick-Up w/Filter] | 1 | |
| 8 | GASKET-PFA | 1 | |
| 9 | NUT-PFA | 1 | |
| 10 | LINE-VENT5/16 ID104 CM [SVC] | 0 | |
| 11 | BRKT-FUEL TANK | 1 | |
| 13 | WASHER | 2 | |
| 14 | BOLT-M6X1.0X20HXFLGOLIVE D | 4 |
