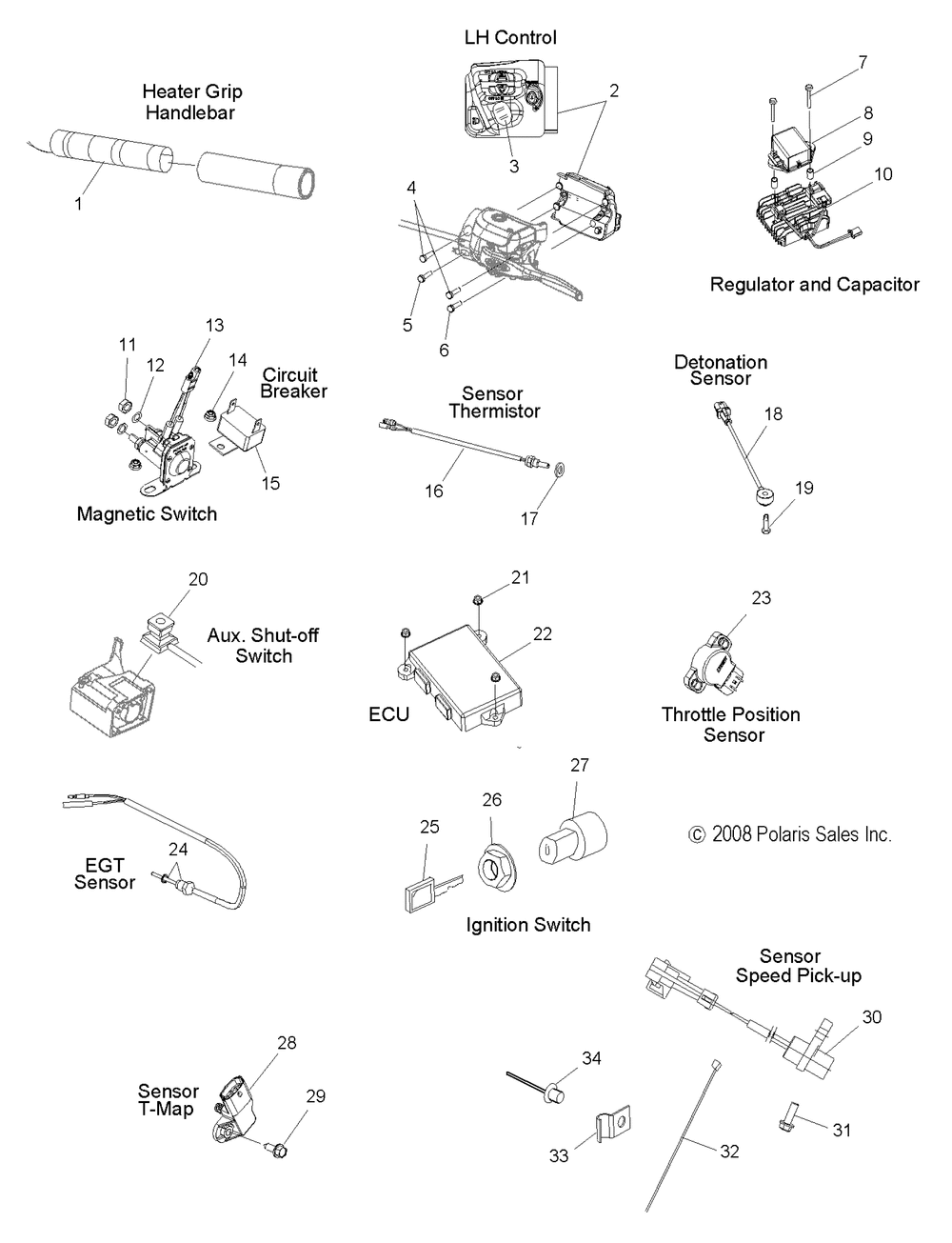

ELECTRICAL SWITCHES SENSORS and COMPONENTS - S09PM7JS / JSL (49SNOWELECT09700RMK)

Polaris S09PM7JS/JSL 700 RMK 155/ES S09PM7JS/JSL 700 RMK 155/ES ELECTRICAL SWITCHES SENSORS and COMPONENTS - S09PM7JS / JSL (49SNOWELECT09700RMK)

№	Наименование	Кол-во
1	HEATER-GRIPLO/MED/HISHORT	2
2	ASM-CONTROLLHMFGREV	1
3	BUTTON SWITCH HI/LO LH CONTROL	1
4	SCREW .75	2
5	SCREW 1.12(10) (10 per pack)	1
6	SCREW 1.50	1
7	SCR-M5X.8X50MM	2
8	CAPACITOR	1
9	SPACER	2
10	REGULATOR-ZERO CROSS	1
11	NUT HEX	2
12	WASHER SPRING LOCK(10) (10 per pack)	2
13	SWITCH-MAGNETIC	1
14	NUT-tahos_10-24 NYLOK INSERT	2
15	CKT.BREAKER12A.	1
16	SENSOR-WATER TEMP	1
17	WASHER-18X12X2.5MM-COPPER	1
18	SENSOR-DETONATION BOSCH	1
19	SCR-M8X1.25X30HX/FL-YD	1
20	SWITCH-AUX SHUT-OFFHON	1
21	NUT-M6 FLANGENYLOK	3
22	ECU-BASEKOK600/700/800 SDI	1
23	SENSOR-THROTTLE POSITION	1
24	WASHER-EGT SENSOR	1
24	SENSOR-EGT	1
25	SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.].	1
26	NUTIGNITION	1
27	KIT-IGNITION SWITCHESCOMPLT	1
28	SENSOR-TMAP DSS3-TF	1
29	SCREW	1
30	SENSOR-SPEED PICKUP	1
31	BOLT(10) (10 per pack)	1
32	CABLE TIE (10) (10 per pack)	1
33	RETAINER-"J"CLP (10) * (10 per pack)	2
34	RIVETINTERLOCKZ(50) * (50 per pack)	2
