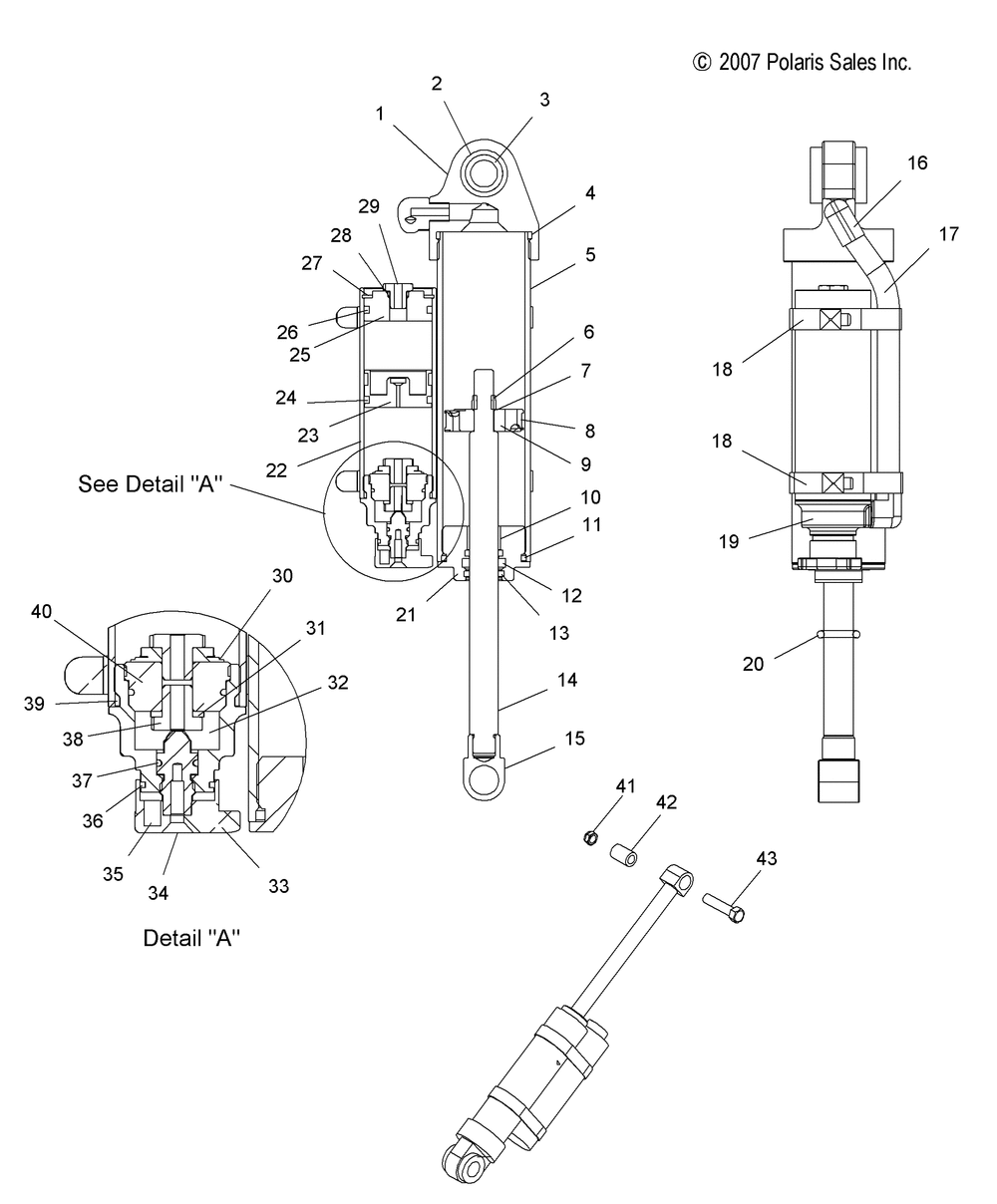

SUSPENSION SHOCK REAR TRACK (WALKER EVANS) - S09MX6JS / JE (49SNOWSHOCKREAR08600IQ)

Корзина пуста
Polaris S09MX6JS/JE 600 IQ RACER/EURO S09MX6JS/JE 600 IQ RACER/EURO SUSPENSION SHOCK REAR TRACK (WALKER EVANS) - S09MX6JS / JE (49SNOWSHOCKREAR08600IQ)
SUSPENSION SHOCK REAR TRACK (WALKER EVANS) - S09MX6JS / JE (49SNOWSHOCKREAR08600IQ)
№ Наименование Примечание Кол-во
SHOCK-REAR TRACKW/E 1
1 LOOP-BODY (320146) 1
2 BUSHING/URETHANE 2
3 SLEEVE 1.202"L 1
4 O-RING EXT.LOOP (320310) 1
5 BODY-SHOCK (320153) 1
6 NUT7/16 (220314) 1
7 WASHER-.090 X 1.000(10) (10 per pack) 1
8 WEAR BANDTEFLON (220302) 1
9 PISTON W/BAND (724126) 1
10 SHAFT BUSHING 1
11 O-RING-EXT 1
12 SHAFT SEAL U CUP 1
13 WIPER D/TYPE 1
14 SHAFT5/8" (400158) 1
15 EYELET 1
16 ELBOW-1/8" NPT 90 2
17 HOSE 1
18 CLAMP-HOSERES (400216) 2
19 HOUSING-ADJ. 1
20 O-RING(10) (10 per pack) 1
21 ASM-HOUSINGSHAFT SEAL 1
22 BODY-RESERVOIR 1
23 BLEED SCREW 1
23 O-RING-BLEED SCREW 1
24 O-RING RESERVOIR (10) (10 per pack) 1
25 CAP-END 1
27 RESERVOIR SNAP RING (10) (10 per pack) 1
28 O-RING(10) (10 per pack) 1
28 VALVE-NEEDLE 1
29 SCREW-BUTTON HEAD 8/32(10) (10 per pack) 1
30 VALVE-.025 X 1.100(10) (10 per pack) 1
31 SHIM-VALVE .010X.700 (10) (10 per pack) 1
32 3/8" AN WASHER (10) (10 per pack) 1
33 KNOB 1
34 SCREW 1
35 BALL-D-TENT(10) (10 per pack) 2
35 SPRING-D-TENT(10) (10 per pack) 2
36 O-RINGKNOB 1
37 O-RING(10) (10 per pack) 1
38 SCREW W/THRU HOLE 1
39 O-RING BODY (10) (10 per pack) 1
40 PISTON 1
41 NUTFLEXLOC(10) (10 per pack) 1
42 BUSHING 1
43 BOLT 1
