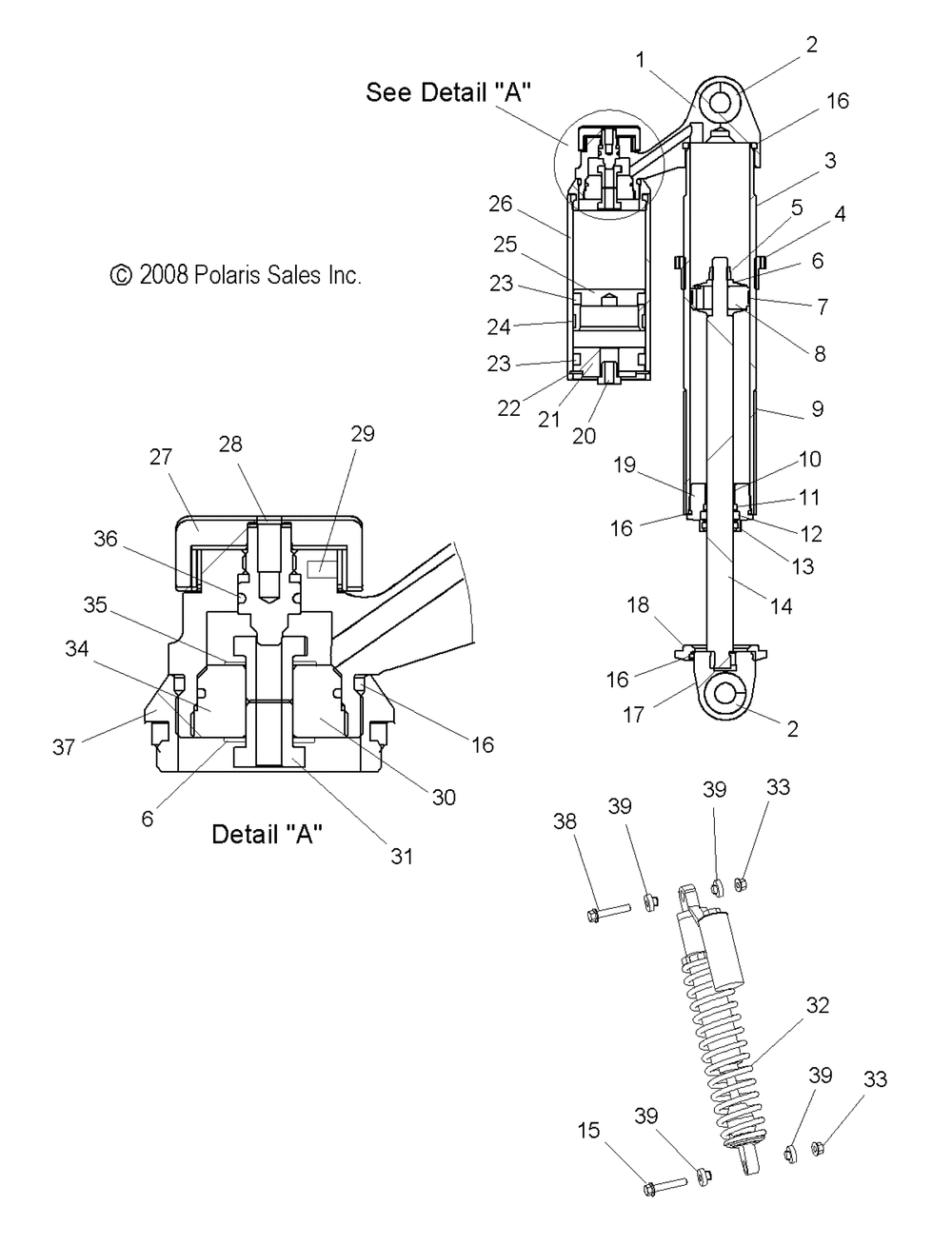

SUSPENSION SHOCK IFS - S09PE6HE / HEL (49SNOWSHOCKIFS7043452)

№	Наименование	Кол-во
	SHOCK-IFS WE NEEDLE PIGGYBACK	2
1	BODY LOOP W/SNP RING (800146)	1
2	END CAP SNAP RING (10) (10 per pack)	4
2	BEARING	2
3	BODYSHOCK IFS THD (800152)	1
4	SPRING RETAINER	1
5	3/8" CRIMP NUT (10) (10 per pack)	1
6	WASHER	1
8	ASM-PISTON W/BAND CONVEX	1
9	WEAR SLEEVE	1
10	SHAFT BUSHING	1
11	O-RING SHAFT SEAL HEAD (10) (10 per pack)	1
12	SHAFT SEAL U CUP	1
13	WIPER D/TYPE	1
14	SHAFT 5/8" (600159))	1
15	SCR-3/8-16X2 FLG HX GR5 Z	2
16	O-RING BODY (10) (10 per pack)	3
17	EYELET W/O-RING (700160)	1
18	SPRING-RETAINING RING	1
19	ASM-SHAFT SEAL HOUSING	1
20	VALVE-NEEDLE	1
20	O-RING(10) (10 per pack)	1
20	SCREW-BUTTON HEAD 8/32(10) (10 per pack)	1
21	END CAP (420207)	1
22	SNAP RING (220207)	1
23	O-RING (220308)	2
24	WEAR BAND (220302)	1
25	BLEED SCREW	1
25	PISTON RESERVOIR (220204)	1
25	O-RING-BLEED SCREW	1
26	BODY RESERVOIR (620334)	1
27	KNOB (500604)	1
28	SCREW	1
29	SPRING-D-TENT(10) (10 per pack)	1
29	BALL-D-TENT(10) (10 per pack)	1
31	SCREW W/THRU HOLE	2
32	SPRG-COMP IFS 10.25 100tahos_ RED	2
33	NUT-FLANGED3/8-16 NYLON-Z (10) (10 per pack)	4
34	PISTON	1
35	SHIM-VALVE .010X.700 (10) (10 per pack)	1
36	O-RING(10) (10 per pack)	1
37	ADAPTOR RESERVOIR (620335)	1
38	SCR-3/8-16X2.25 HX FLG GR5 Y	4
39	SPACER-.375X.50X.577	8
