SKI-DOO EXPEDITION - LE-SE 4-STROKE EXPEDITION - LE-SE 4-STROKE 08- Rear Suspension B

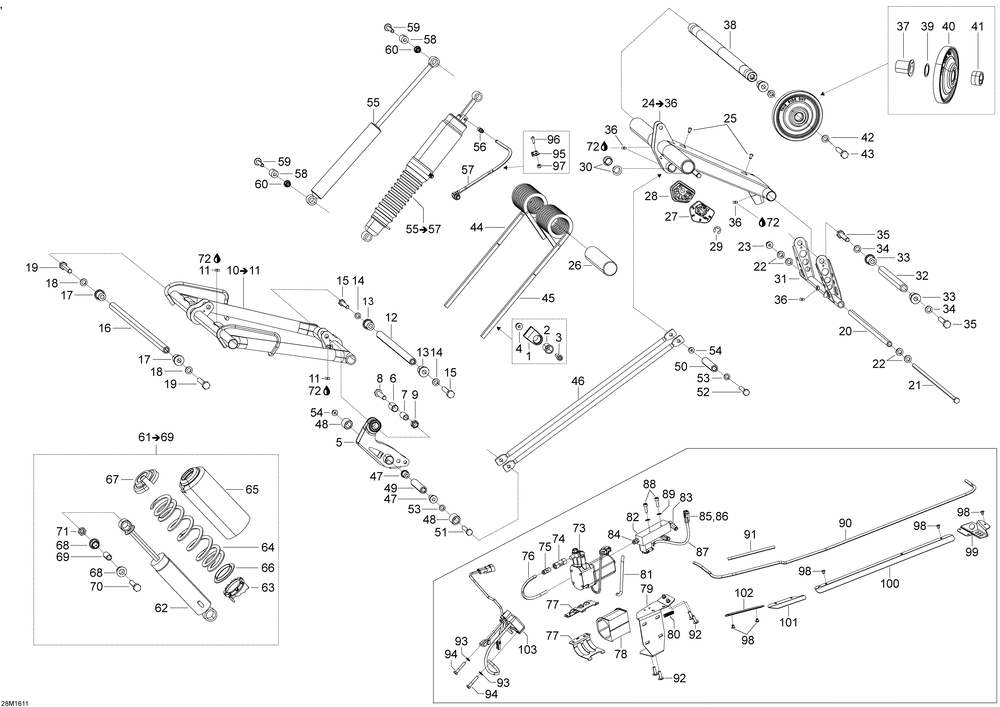

08- Rear Suspension B
№ Наименование Примечание Кол-во
1 SPRING SUPPORT 2
2 RETAINER CUSHION (2.000 per pack) 2
3 Socket Head Screw M8 X 25 2
4 Hex. Flanged Elastic Nut M8 2
5 ROCKER 1
6 COUSSINET *CUSHION 1
7 Bushing 1
8 HEX. SCREW M10 X 50 (10.000 per pack) 1
9 ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 1
10 FRONT ARM ASSY Includes 10 To 11 1
11 GREASE FITTING (10.000 per pack) 2
12 LOWER SHAFT 1
13 CUSHION (2.000 per pack) 2
14 Washer 2
15 HEX. SCREWS.GRIP M10 X 55 2
16 UPPER SHAFT 1
18 RONDELLE *WASHER (10.000 per pack) 2
20 AXLE PIVOT 1
21 BOLT 369MM 1
22 Washer 4
24 REAR ARM ASS Y Includes 24 To 36 1
25 DART GS Black A19N Model (10.000 per pack) 2
27 LH CAM ADJUSTER 1
28 RH CAM ADJUSTER 1
29 E-Circlip 2
30 SWIVEL BUSHING 2
31 WELDED ARM PIVOT 1
32 LOWER SHAFT 1
33 CUSHION 2
34 RONDELLE *WASHER (5.000 per pack) 2
35 SOCKET HEAD SCREW M12 X 35 2
37 CUSHION 2
38 UPPER SHAFT 1
39 RONDELLE *WASHER 2
40 BLACK WHEEL ASS Y 155 MM 2
41 RETAINING RING 2
42 RONDELLE *WASHER (5.000 per pack) 2
43 SOCKET SCREW M12 X 35 (2.000 per pack) 2
44 BLACK RH SQUARE SPRING 1
45 BLACK LH SQUARE SPRING 1
46 TIGE ACCEL *LINK ROD Model-SE 2
46 TIGE ACCEL *LINK ROD Model-LE 2
48 SPACER Model-SE 2
49 BAR AXLE (SHORT) Model-SE 1
49 AXLE BAR (LONG) Model-LE 1
51 HEX. SCREW M8 X 90 Model-LE (5.000 per pack) 1
51 HEX. SCREW M8 X 130 Model-SE 1
55 REAR SHOCK Model-LE 1
55 REAR SHOCK ASS Y Includes 55 To 57 Model-SE 1
56 MALE PNEUMATIC CONNECTOR 1
57 PNEUMATIC HOSE ASS Y 1
58 CUSHION Model-LE & SE (2.000 per pack) 2
59 Hex. Flanged Screw M8 X 40 2
62 CENTER SHOCK Model-Europe 1
62 CENTER SHOCK Model-North America 1
63 ADJUSTEMENT CAM 1
64 BLACK SPRING 1
65 PROTECTOR 1
66 SPRING GUIDE 1
67 SPRING STOPPER Model-Europe 1
67 Spring Stopper 1
68 Bushing Urethane 2
73 Compressor 1
74 CHECK VALVE Model-SE 1
75 Connector 1
76 Hose 1
77 Compressor Bracket 2
78 Compressor Isolator 1
79 SUPPORT Model-SE 1
81 Tubing 6 mm  (3.000 per pack) 0
82 AIR MANIFOLD ASS Y Includes 82 To 87 Model-SE 1
83 ELBOW 90 2
85 MALE TERMINAL (10.000 per pack) 2
86 MALE TERMINAL HOUSING 2 CIRCUITS RTS 1
88 SOCKET HEAD SCREW M6 X 20 SCOTCH GRIP Model-SE (5.000 per pack) 2
89 FLAT WASHER 6 MM (10.000 per pack) 2
90 TUBE Model-SE 1
92 Torx Screw M6 X 20 4
94 Hex. Flanged Screw M6 X 35 2
95 CLAMP Model-SE 1
96 TORX SCREW M5 X 14 (2.000 per pack) 1
97 FLANGED ELASTIC NUT M5 (4.000 per pack) 1
98 Rivet 3/16" 7
99 BRACKET Model-SE 1
100 HOSE PROTECTOR Model-SE 1
101 HOSE PROTECTOR Model-SE 1
102 HOSE PROTECTOR PAINTED Model-SE 1
103 COMPRESSOR MODULE Model-SE 1
