SKI-DOO EXPEDITION - LE-SE-Xtreme 2-STROKE EXPEDITION - LE-SE-Xtreme 2-STROKE 01- Cooling System - 600 E-TEC

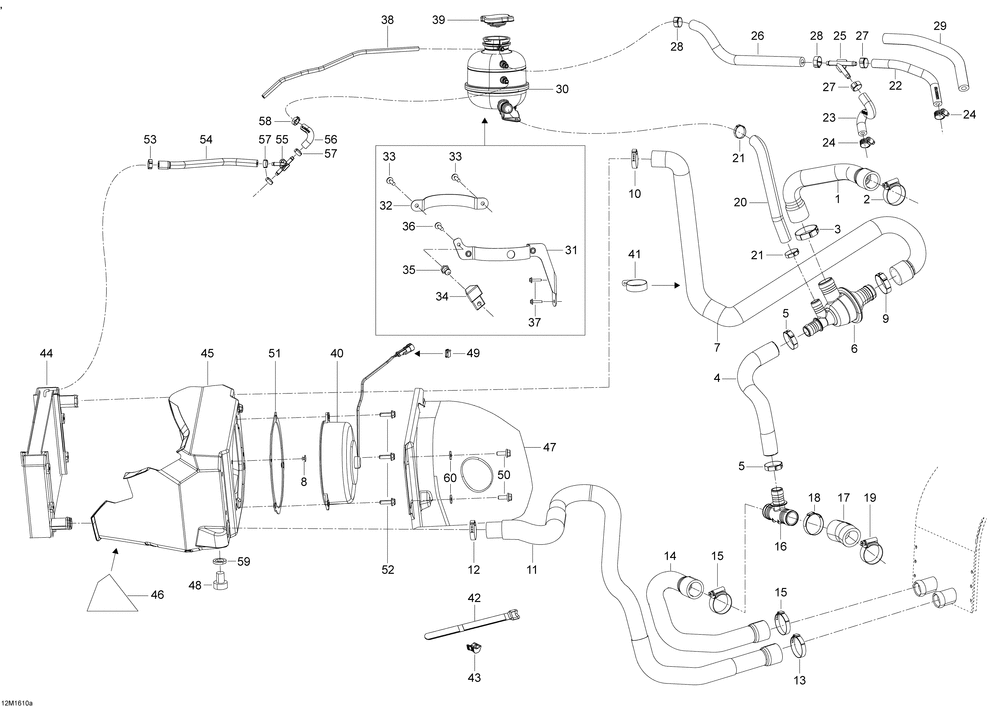

01- Cooling System - 600 E-TEC
№ Наименование Примечание Кол-во
1 ENGINE OUTLET HOSE 1
2 ABA GEAR CLAMP 1
3 OETIKER CLAMP 1
4 BYPASS HOSE 1
5 Crimp Clamp 2
6 THERMOSTAT HOUSING 1
7 HOSE RADIATOR 1
8 Rivet 3/16" 1
11 AIR RADIATOR HOSE 1
14 RETURN RADIATOR HOSE 1
16 T-FITTING 1
17 ENGINE INLET HOSE 1
20 FILLING HOSE 1
21 Oetiker Gear Clamp 2
22 BLEEDER HOSE 1
23 BLEEDER HOSE 1
24 TRIDON GEAR CLAMP (10.000 per pack) 2
25 Y-FITTING 1
26 BOYAU PURGE *BREATHER HOSE 1
27 Oetiker Clamp 2
28 Crimp Clamp 2
29 PROTECTOR TUBE 16 MM 1
30 COOLANT TANK 1
31 RESERVOIR SUPPORT 1
32 SUPPORT 1
33 FORMING SCREW M5 X 16 2
34 SUPPORT 1
35 KNOB (6.000 per pack) 1
36 Torx Screw K50 X 16 1
37 Screw M4 X 16 2
38 HOSE 6 MM (15.000 per pack) 1
39 Pressure Cap 1
40 FAN 1
42 BANDE VELCRO *VELCRO-STRIP 2
43 BUMPER 1
44 RADIATOR 1
45 COOLING FAN SHROUD 1
46 FOAM 1
47 DEFLECTOR 1
48 RUBBER BUMPER (2.000 per pack) 1
49 CLIP 1
50 Hex. Flanged Screw M6 X 12 4
51 SCREW PLATE 1
52 HEX. FLANGED SCREW M6 X 20 (5.000 per pack) 3
53 OETIKER CLAMP (5.000 per pack) 1
54 FORMED HOSE 1
55 Y-FITTING 1
56 FORMED HOSE 1
59 SPACER 1
60 Flat Washer 6 mm 2
