SKI-DOO EXPEDITION - LE-SE-Xtreme 2-STROKE EXPEDITION - LE-SE-Xtreme 2-STROKE 01- Exhaust System

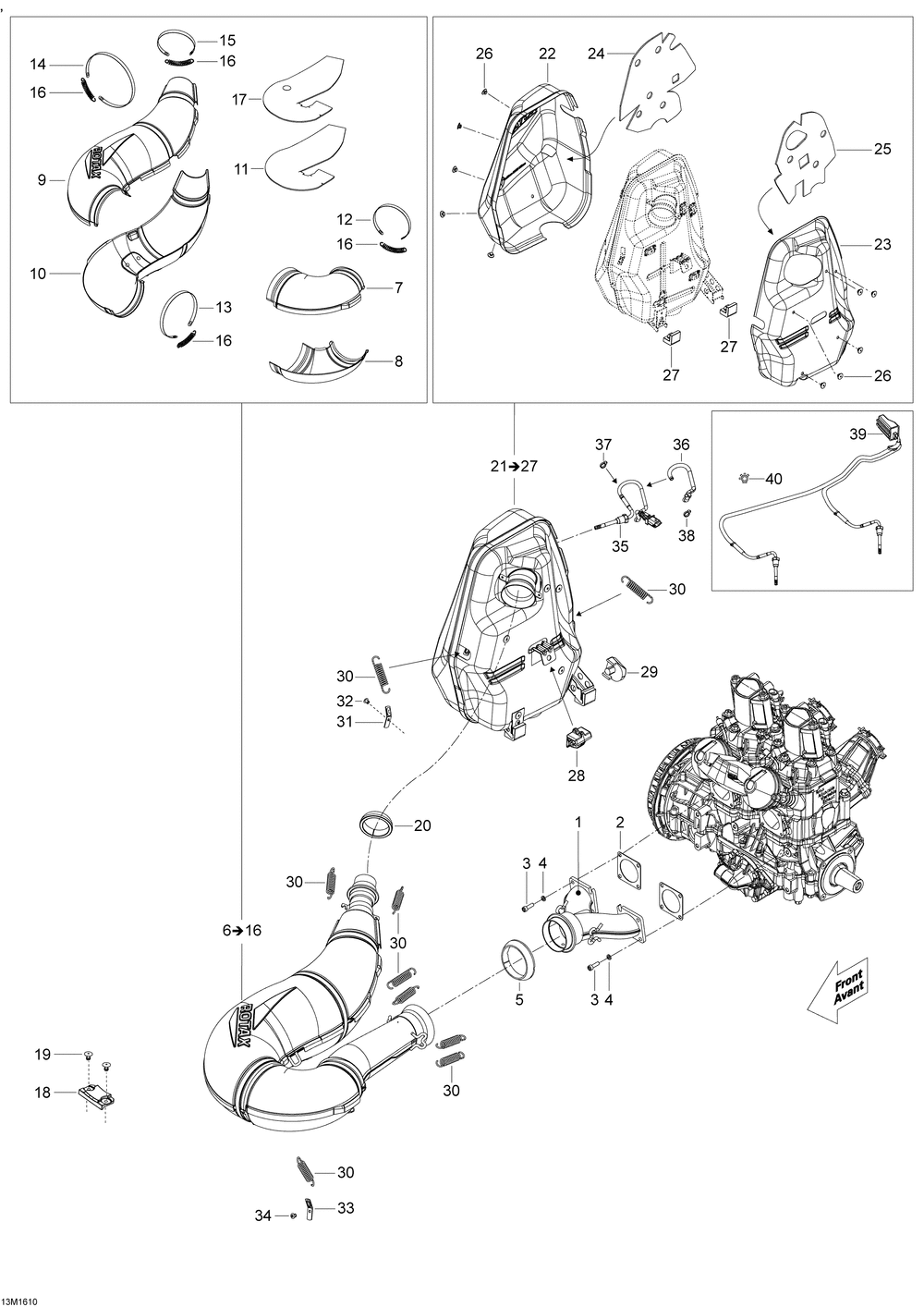

01- Exhaust System
№ Наименование Примечание Кол-во
1 EXHAUST MANIFOLD 1
1 EXHAUST MANIFOLD 1
2 JOINT *GASKET (6.000 per pack) 2
2 JOINT *GASKET 2
3 SOCKET HEAD SCREW M8 X 22 (4.000 per pack) 8
3 SOCKET HEAD SCREW M6 X 22 SCOTCH GRIP (5.000 per pack) 8
4 Washer 8
4 RONDELLE *WASHER Not Shown (10.000 per pack) 8
5 EXHAUST GASKET (2.000 per pack) 1
6 TUNED PIPE ASS Y Includes 6 To 16 1
6 TUNE PIPE Includes 6 To 17 Model-800 E-TEC 1
7 FRONT UPPER HALF ENVELOPPE 1
8 FRONT LOWER HALF ENVELOPPE 1
9 ENVELOPPE SUP. **ENVELOP-UPP 1
9 ENVELOPPE SUP. **ENVELOP-UPP 800R E-TEC Except Package-Backountry Bacountry X 1
10 DEMI-ENV. INF.AR*HALF-ENV.LOW. RR.ASSY 1
11 LAINE ISOLANTE *WOOL 2
12 RETAINING STRAP 1
13 RETAINING STRAP 1
14 RETAINING STRAP 1
15 RETAINING STRAP 1
16 SPRING 4
17 LAINE ISOLANTE *WOOL 1
18 BUTOIR *BUMPER 1
19 Black Pop Rivet 3/16" 2
20 EXHAUST GASKET 600 1
20 Exhaust Gasket 1
21 MUFFLER ASS Y Includes 20 To 26 1
21 MUFFLER ASS Y Includes 21 To 27 Model-800 E-TEC 1
22 RH DEFLECTOR 600 HO E-TEC 1
22 RH DEFLECTOR 800R E-TEC 1
23 LH DEFLECTOR 1
24 LAINE ISOLANTE *WOOL 1
25 LAINE ISOLANTE *WOOL 1
26 POP RIVET 3/16tahos_ (25.000 per pack) 11
27 LOWER STOPPER 2
28 UPPER STOPPER 1
29 RUBBER BUMBER 1
30 Spring 9
31 SPRING BRACKET 1
32 Pop Rivet 3/16" 1
33 SPRING BRACKET 1
34 HEMLOCK RIVET (10.000 per pack) 1
35 TEMPERATURE SENSOR 1
36 Tubing 6 mm  (3.000 per pack) 1
37 Tie-Rap 94 mm 1
38 Tie-Rap 180 mm 1
39 KIT MODULE *EGTS MODULE KIT Model-800 E-TEC 1
40 TAB LOCK 1
