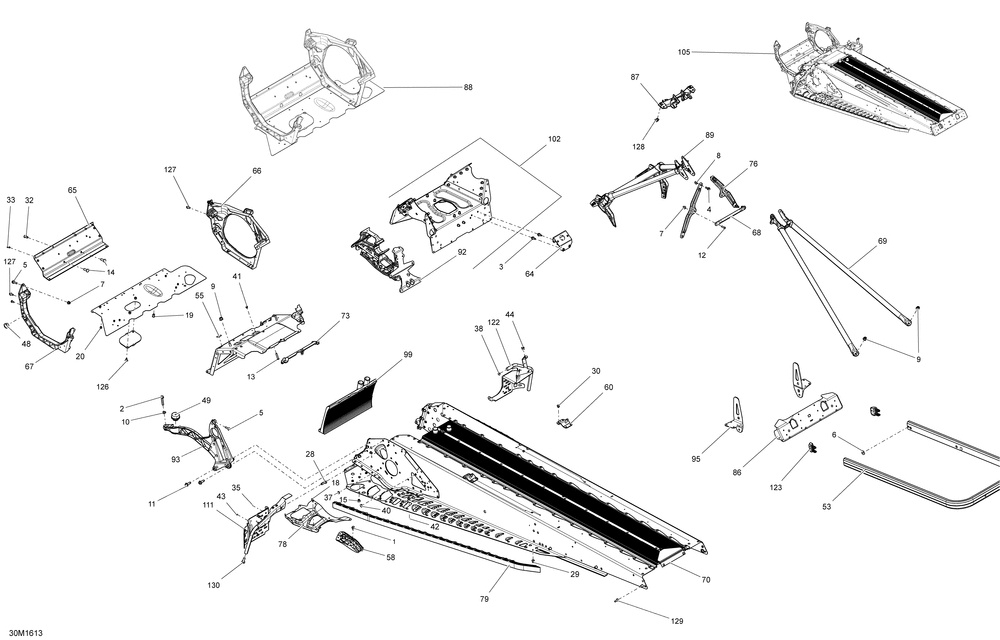

SKI-DOO EXPEDITION - SPORT 4-STROKE EXPEDITION - SPORT 4-STROKE 09- Frame
09- Frame
№ Наименование Примечание Кол-во
1 Hex. Flanged Screw M6 X 12, Scotch Grip 2
2 Hex. Flanged Screw Scotch Grip 1
3 Hex. Flanged Screw M6 X 16 2
4 Hex. Flanged Screw M6 X 20 2
5 Hex. Flanged Screw M6 X 25 0
6 FLAT WASHER (10.000 per pack) 2
7 Hex. Flanged Nut M6 0
8 Elastic Flanged Nut M6 X 1.0 2
9 Hex. Flanged Elastic Nut M8 0
10 CONICAL SPRING WASHER M8 (10.000 per pack) 1
11 HEX. FLANGED SCREW M8 X 25 NYLON (5.000 per pack) 2
12 CLINCH STUD M6 X 20 0
13 CLINCH STUD M6 X 30 Eingine 600 H.O. E-TEC (2-Strokes) (4.000 per pack) 2
14 CLINCH STUD 2
15 Pop Rivet 3/16" 4
18 HEMLOCK RIVET 6.5 MM (5.000 per pack) 0
19 HEMLOCK RIVET 6.5 MM (4.000 per pack) 0
20 STAVEX RIVET (20.000 per pack) 0
28 HENROB RIVET (10.000 per pack) 12
29 HEMLOCK RIVET (10.000 per pack) 8
30 HEMLOCK RIVET 6.4 MM (10.000 per pack) 0
32 MONOBOLT RIVET 6.4 (2.000 per pack) 2
33 MONOBOLT RIVET 4.8 MM (4.000 per pack) 6
35 INSERT 5
37 FULL MOON DART 8 MM Model-LE 3
38 FULL MOON DART 5 MM 1
40 FULL MOON DART 10 MM 2
41 Pop Rivet 3/16" 3
42 AVEX RIVET (50.000 per pack) 5
43 AVEX RIVET (50.000 per pack) 0
44 Insert 0
48 BUSHING 2
49 RUBBER MOUNT 2
53 CLEAR REAR BUMPER Package LT 1
55 ADHESIVE PATCH 1
58 RH DEFLECTOR 1
58 LH DEFLECTOR 1
60 RH REAR BASE 1
60 LH REAR BASE 1
64 ENGINE SUPPORT Model-900 ACE 1
65 FRONT MEMBER 1
66 RH SIDE MEMBER 1
67 LH SIDE MEMBER 1
68 CENTER COLUMN SUPPORT Model-900 ACE 1
69 REAR MEMBER 1
70 REAR RADIATOR ASS Y 154" 154" 1
73 JOINT *SEAL 1
76 UPPER COLUMN SUPPORT Model-900 ACE 2
78 RENFORT DR *REINFORCEMENT 1
78 RENFORT GA *REINFORCEMENT 1
79 RH ROLLER 1
79 LH ROLLER 1
86 REAR CAP 1
87 SUB A SUPPORT 1
88 "E" MODULE 1
89 FRONT MEMBER 1
92 FRONT SUSPENSION SUPPORT 1
93 BRETELLE ASS *AS BRACE Includes 53 To 54 Model-900 ACE 1
95 RH SUSPENSION BRACKET 1
95 LH SUSPENSION BRACKET 1
99 FRONT RADIATOR ASS Y 1
102 MODULE S *CROSS MEMBER 1
105 FRAME ASS Y 154 1
111 ETRIER GA *LH.STIRUP 1
122 ETRIER DROIT *RH.STIRUP 1
123 FULL MOON RH CAP 1
123 FULL MOON LH CAP 1
126 Torx Truss Screw M6 X 12 2
127 Hex. Flanged Screw M6 X 16 2
128 PANEL NUT M5 X 0.8 (10.000 per pack) 2
129 TORX-TRUSS M/S N.PATCH M6 X 18 6
130 SCREW-PAN HD.TORX M8X25 SCOTCH GRIP 3
