SKI-DOO GRAND TOURING - 2-STROKE GRAND TOURING - 2-STROKE 09- Frame

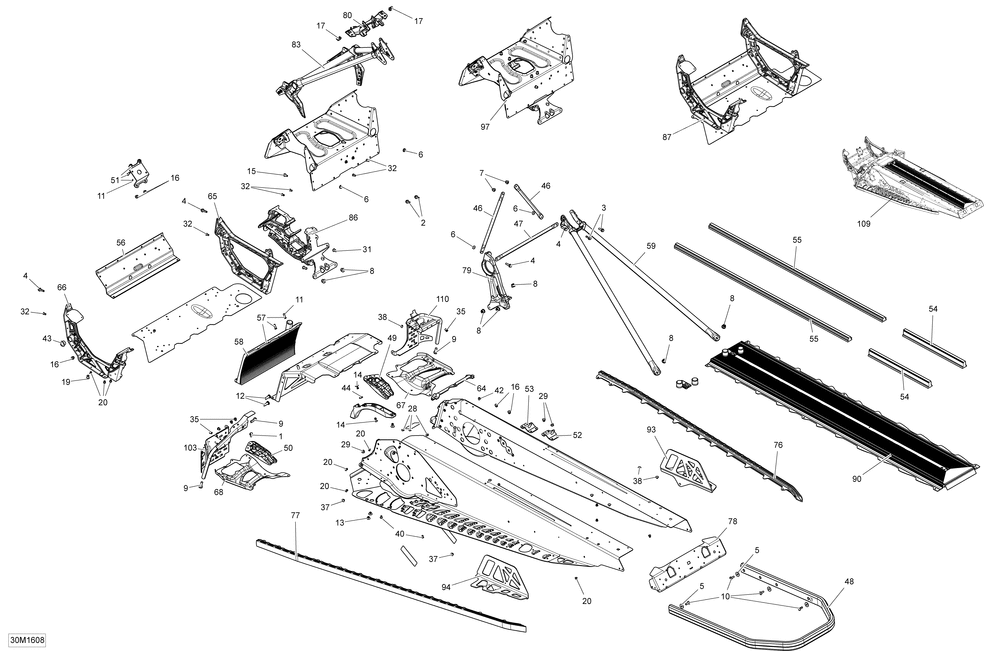

09- Frame
№ Наименование Примечание Кол-во
1 Hex. Flanged Screw M6 X 12, Scotch Grip 2
2 Hex. Flanged Screw M6 X 16 2
3 Hex. Flanged Screw M6 X 20 2
4 Hex. Flanged Screw M6 X 25 4
5 FLAT WASHER (10.000 per pack) 18
6 Hex. Flanged Elastic Nut M6 4
7 Elastic Flanged Nut M6 X 1.0 2
8 Hex. Flanged Elastic Nut M8 7
9 SCREW-PAN HD.TORX M8X25 SCOTCH GRIP 3
10 TORX-TRUSS M/S N.PATCH M6 X 18 18
11 CLINCH STUD M6 X 20 8
13 Pop Rivet 3/16" 4
14 POP RIVET 3/16tahos_ (25.000 per pack) 3
15 Hex. Flanged Screw M6 X 16 2
16 HEMLOCK RIVET 6.5 MM (5.000 per pack) 14
17 PANEL NUT M5 X 0.8 (10.000 per pack) 2
19 HEMLOCK RIVET 6.5 MM (4.000 per pack) 4
20 STAVEX RIVET (20.000 per pack) 24
28 HENROB RIVET (10.000 per pack) 12
29 HEMLOCK RIVET 6.4 MM (10.000 per pack) 5
31 MONOBOLT RIVET 6.4 (2.000 per pack) 2
32 MONOBOLT RIVET 4.8 MM (4.000 per pack) 6
35 INSERT 5
37 BLACK DART 8 MM 3
37 BLACK DART 5 MM 3
38 FULL MOON DART 5 MM 1
40 AVEX RIVET (50.000 per pack) 5
42 AVEX RIVET (50.000 per pack) 2
43 BUSHING 4
44 RONDELLE *WASHER (10.000 per pack) 1
45 BLACK REAR BUMPER Europe Model 1
46 UPPER COLUMN SUPPORT Model-1200 4-TEC 2
47 CENTER COLUMN SUPPORT 1
48 BLACK REAR BUMPER 1
49 RH DEFLECTOR 1
50 LH DEFLECTOR 1
51 MAG ENGINE SUPPORT 1
52 RH REAR BASE 1
53 LH REAR BASE 1
54 PROT. CHASSIS *TUNNEL PROT. 2
56 FRONT MEMBER 2
57 FRONT RADIATOR 1
58 FRONT RADIATOR 1
59 REAR MEMBER 1
64 JOINT *SEAL 1
65 RH MEMBER 2
66 LH MEMBER 2
67 RENFORT DR *REINFORCEMENT 1
68 RENFORT GA *REINFORCEMENT 1
73 FRONT PROTECTOR 1
76 RH ROLLER 1
77 LH ROLLER 1
78 REAR CAP 1
79 PULLEY SUPPORT 1
79 DRIVEN PULLEY SUPPORT 1
80 SUB A SUPPORT 1
83 FRONT MEMBER 1
86 FRONT SUSPENSION SUPPORT 1
87 FRONT E MODULE 2
90 REAR RADIATOR 137 1
93 RH SUSPENSION BRACKET 1
94 LH SUSPENSION BRACKET 1
97 MODULE S *CROSS MEMBER 1
103 ETRIER GA *LH.STIRUP 1
109 CHASSIS *FRAME 1
110 ETRIER DROIT *RH.STIRUP 1
112 BLACK LH CAP Europe Model 1
112 BLACK RH CAP Europe Model 1
