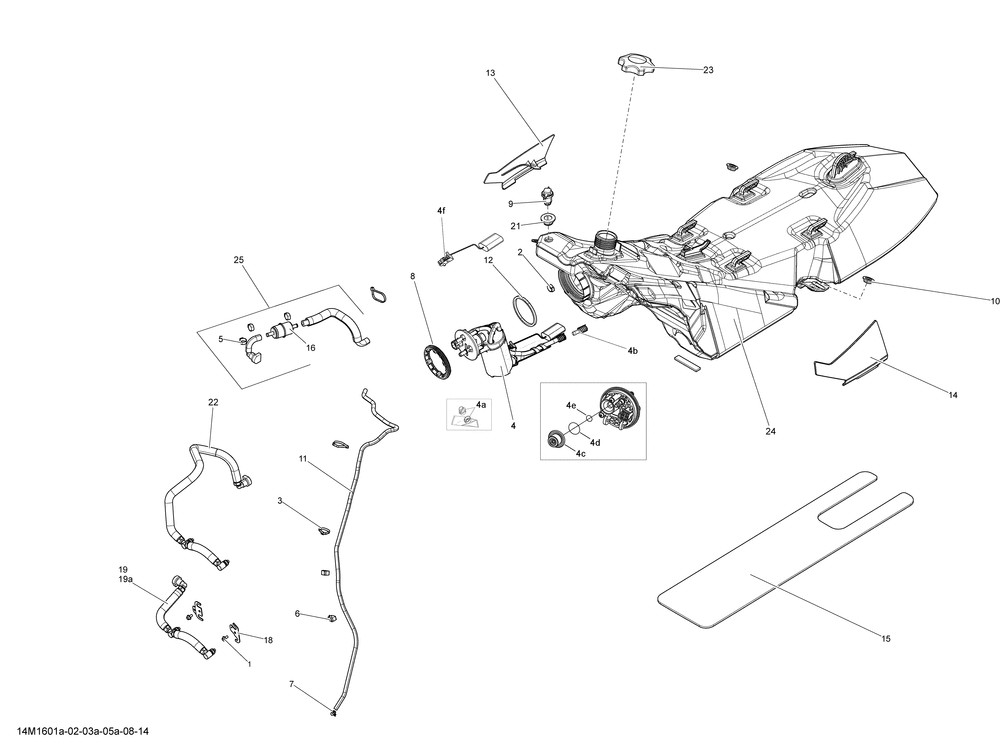

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | Flanged Hex. Screw M5 X 10 | 2 | |
| 2 | OETIKER CLAMP (5.000 per pack) | 1 | |
| 3 | Tie-Rap 180 mm | 1 | |
| 4 | FUEL PUMP | 1 | |
| 4a | FUEL FILTER | 1 | |
| 4b | FUEL FILTER | 1 | |
| 4c | REGULATOR | 1 | |
| 4d | O-RING | 1 | |
| 4e | O-RING | 1 | |
| 4f | FUEL LEVEL SENSOR | 1 | |
| 5 | Oetiker Clamp | 3 | |
| 6 | CLIP (10.000 per pack) | 2 | |
| 7 | Spring Clamp | 1 | |
| 8 | RING | 1 | |
| 9 | CHECK VALVE | 1 | |
| 10 | SHOULDER BUSHING | 2 | |
| 11 | Hose, Polyurethane | 1 | |
| 12 | GASKET | 1 | |
| 13 | CAPUCHON DROIT *R.H. CAP | 1 | |
| 14 | CAPUCHON GAU. *L.H. CAP BOM | 1 | |
| 15 | INSULATING FOAM | 1 | |
| 16 | Filter | 1 | |
| 18 | ATTACHE *BRACKET | 2 | |
| 19 | BOYAU ASSEMBLE *HOSE ASS`Y Includes 19 To 19a | 1 | |
| 19a | LOCKING CLIP (2.000 per pack) | 1 | |
| 21 | GROMMET | 1 | |
| 22 | BOYAU ASSEMBLE *HOSE ASS`Y | 1 | |
| 23 | FUEL TANK CAP Octane 91 | 1 | |
| 24 | FUEL TANK | 1 | |
| 25 | BOYAU ASSEMBLE *HOSE ASS`Y | 1 |
