SKI-DOO GRAND TOURING - 2-STROKE GRAND TOURING - 2-STROKE 09- Seat

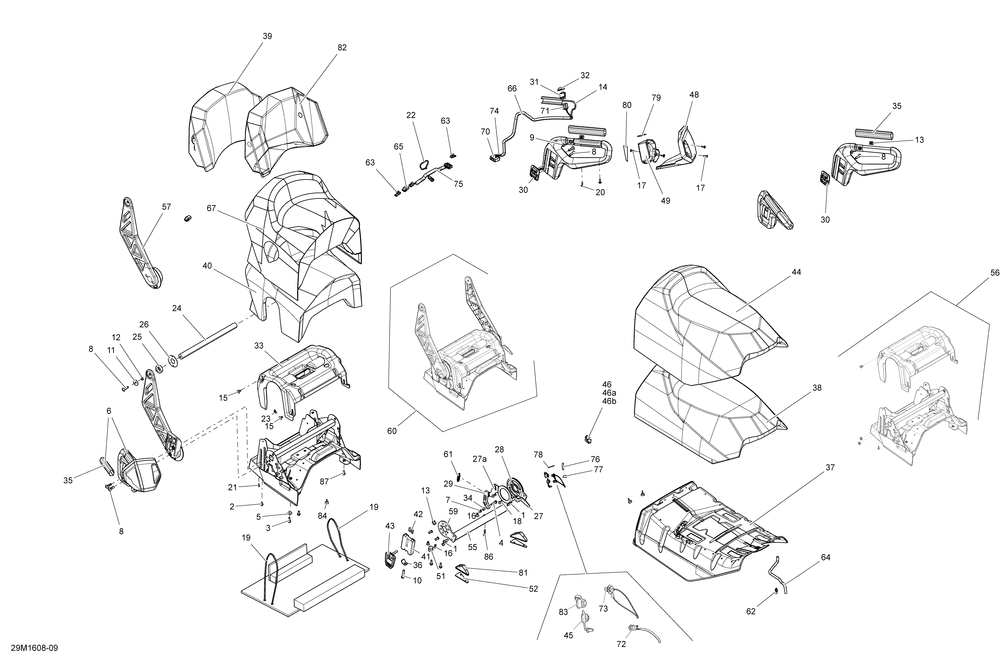

09- Seat
№ Наименование Примечание Кол-во
1 SOCKET HEAD SCREW M8 X 25 SCOTCH GRIP 4
2 FLANGED SCREW M6 X 10 SCOTCH GRIP (5.000 per pack) 2
3 Flanged Screw M6 X 20 Scotch Grip 4
4 Hex. Flanged Screw M6 X 30, Scotch Grip 1
5 FLAT WASHER (10.000 per pack) 1
6 POIGNEE DROITE *RH.HANDLE 1
6 POIGNEE GAUCHE *LH.HANDLE 1
7 Hex. Flanged Elastic Nut M6 1
8 TORX TRUSS SCREW M8 X 30 (6.000 per pack) 2
9 Torx Screw 2
10 SOCKET HEAD SCREW M8 X 45 (5.000 per pack) 2
12 SPACER 2
13 NUT M6 (6.000 per pack) 2
14 HEATED ELEMENT 2
15 POP RIVET 3/16" (50.000 per pack) 4
16 Pop Rivet 3/16" 6
17 Torx Screw K50 X 16 3
18 STEEL RIVET (4.000 per pack) 4
19 Tie-Rap 350 mm 4
20 Screw M4 X 16 5
21 Pop Rivet 3/16" 2
22 Tie-Rap 180 mm 1
23 DART GS Black A19N Model (10.000 per pack) 5
24 UPPER BACKREST AXLE 1
25 RUBBER SHIM 2
26 RONDELLE *WASHER 2
27 MANETTE NOIRE *HANDLE BLACK 1
27a GRIP 1
28 SPROCKET 1
29 ADJUSTMENT PIVOT 1
30 MOULDING 2
31 ROCKER SWITCH 1
32 SWITCH PROTECTOR 1
33 FOAM SUPPORT 1
34 BUSHING 1
35 GAINE POIGNEE *GRIP-HANDLE 2
35 RENFORT DE POIG*HANDLE REINFOR 2
36 HANDLE CLAMP (2.000 per pack) 2
37 FRONT SEAT BASE 1
38 FRONT SEAT FOAM 1
39 BACKREST FOAM 1
40 REAR SEAT FOAM 1
41 HANDLE LINK 2
42 STOPPER BLOCK 2
43 LEVIER BLOCAGE *LEVER-LOCK 2
44 HOUSSE *COVER-SEAT 1
45 CAP 1
46 SEAT CORNER FULL MOON 2
46 SEAT CORNER BLACK 2
46a RH REAR CORNER SEAT 1
46b LH REAR CORNER SEAT 1
47 RH AIR DEFLECTOR 1
48 LH AIR DEFLECTOR 1
49 HOUSING SWITCH 1
51 SEAT STUD 2
52 SPACER 2
54 LH ARM 1
55 LINK TUBE 1
56 SEAT BASE ASS Y 1
57 RH ARM 1
57 RH ARM BLACK 1
59 LINK PLATE 1
60 SEAT BASE ASS Y 1
61 SPRING 1
62 Tie Rap 1
63 Housing Support 2
64 Tubing 6 mm  (3.000 per pack) 0
65 MALE HOUSING 3 CIRCUITS (5.000 per pack) 1
66 GAINE EXP.TRES.*TUBING-EXP.BRAIDED (2.000 per pack) 0
67 HOUSSE *COVER-SEAT 1
70 MALE CONNECTOR 1
71 HANDLE HARNESS 1
72 CABLAGE *HARNESS 1
73 VISOR CONNECTOR HARNESS 1
75 SEAT HARNESS 1
76 VISOR AND LINER DECAL 1
77 HANDLE AND SEAT DECAL 1
78 INTENSITY SWITCH DECAL 1
79 HEATED HANDLE DECAL 1
80 CONNECTOR DECAL 1
81 RH SEAT ANCHOR 2
81 LH SEAT ANCHOR 2
82 BACKREST COVER 1
83 CAP 1
84 Rubber Stopper 4
86 Hex. Flanged Screw M6 X 30, Scotch Grip 2
87 HEX. SCREW M6 X 16 SCOTCH GRIP (25.000 per pack) 2
