SKI-DOO GRAND TOURING - 2-STROKE GRAND TOURING - 2-STROKE 07- Front Suspension And Ski - All Models

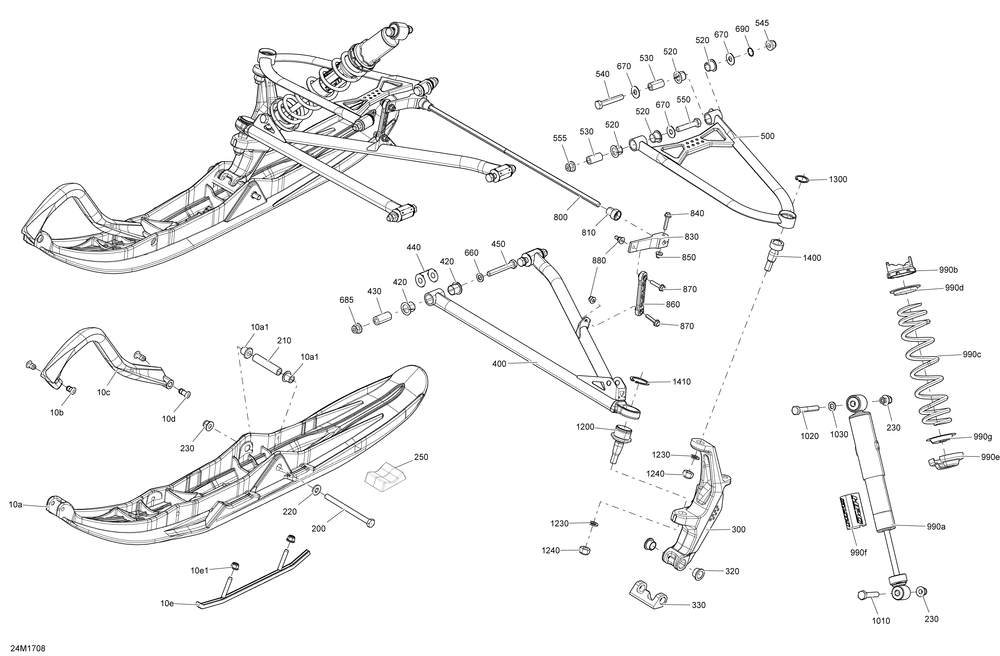

07- Front Suspension And Ski - All Models
№ Наименование Примечание Кол-во
10a PILOT SKI SL ASS Y 2
10a1 CUSHION 1
10b RETAINER (16.000 per pack) 4
10c BLACK HANDLE Model N 2
10d RETAINER 4
10e ROUND CARBIDE RUNNER 1
10e1 Hex. Flanged Elastic Nut M8 4
200 HEX. SCREW M10 X 130 2
210 SPACER (2.000 per pack) 2
220 Washer 2
230 Hex. Elast. Flanged Nut M10 2
250 SKI STOPPER 2
300 JAMBE DE SKI *SKI LEG Model-Black-Black Package-XRS 1
300 SKI-LEG MACHINED Model N 1
320 BUSHING 4
330 BUTÉE *STOPPER 2
400 RH LOWER ARM 42" Except Package-Sport 1
400 LH LOWER ARM 42" Except Package-Sport 1
420 COUSSINET *BUSHING 8
430 BUSHING 4
440 WEAR PLATE 4
450 SCREW HEX. M10 X 70 2
500 RH UPPER ARM 42" Except Package-Sport 1
500 LH UPPER ARM 42" Except Package-Sport 1
520 COUSSINET *BUSHING 8
530 BUSHING 4
540 SCREW HEX. M10 X 60 (5.000 per pack) 2
545 Hex. Flanged Elastic Nut M10 2
550 SCREW HEX. M10 X 50 (4.000 per pack) 2
660 RONDELLE *WASHER (10.000 per pack) 4
670 RONDELLE *WASHER (5.000 per pack) 6
690 O-RING 2
800 STABILISATEUR *STABILISATOR 1
810 COUSSINET *BUSHING 2
830 STABILISATOR LEVER 2
840 HEX FLANGED SCREW M6 X 30 2
850 Hex. Flanged Elastic Nut M6 2
860 Sway Bar Double Joint Link 2
990a FRONT SHOCK 2
990b ADJUSTEMENT CAM 2
990c DEEP BLACK SPRING 2
990d Spring Guide 2
990e Spring Stopper 2
990f SHOCK DECAL HPG Package-Burton SP SP-T3 2
990g Cap 2
1010 HEX SCREW M10 X 55 2
1020 HEX. SCREW M10 X 65 (5.000 per pack) 2
1200 JOINT ROTULE *BALL JOINT 2
1230 RONDELLE *WASHER (5.000 per pack) 4
1240 Hex Elastic Nut M12 X 1.25 4
1300 CIRCLIP (2.000 per pack) 2
1400 UPPER BALL JOINT 2
1410 Circlip 2
