SKI-DOO GRAND TOURING - 4-STROKE GRAND TOURING - 4-STROKE 05- Pulley System - 600-900 ACE

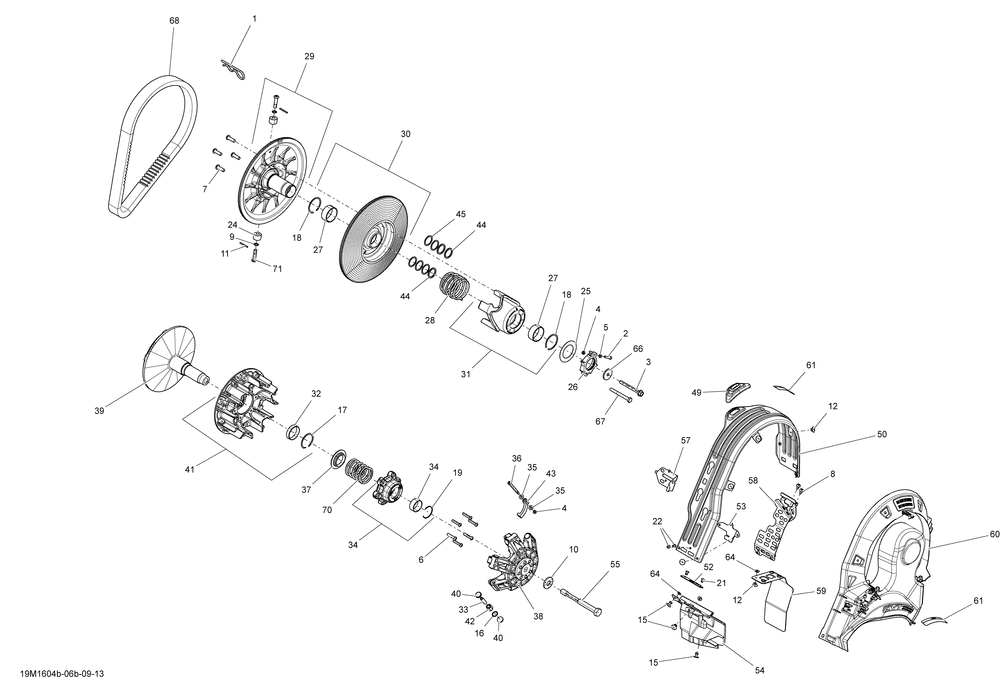

05- Pulley System - 600-900 ACE
№ Наименование Примечание Кол-во
1 GOUP.SURETE *PIN-HAIR (5.000 per pack) 1
2 SOCKET SCREW M5 X 25 (10.000 per pack) 1
3 HEX. CAP SCREW M8 X 80 1
4 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 7
5 FLAT WASHER M5 (10.000 per pack) 1
6 TORX SCREW M6 X 30 6
7 HEX. BUTTON HEAD SCREW M8 X 25 (4.000 per pack) 4
8 Torx Screw M5 X 14 4
9 Lock Washer 8 mm 2
10 CONICAL SPRING WASHER M14 1
11 SPRING PIN M3 X 30 (2.000 per pack) 2
12 Black Pop Rivet 3/16" 6
15 Pop Rivet 3/16" 3
16 JOINT TORIQUE *O RING 3
17 CIRCLIP 1
18 CIRCLIP 2
19 CIRCLIP 1
21 AVEX RIVET (50.000 per pack) 2
22 AVEX RIVET (50.000 per pack) 4
24 Roller 2
25 RONDELLE *WASHER 1
26 AJUST POULIE *PULLEY ADJUST 1
27 BUSHING 4
28 SPRING RELEASE Model-600 ACE 1
28 RESSORT RAPPEL *RELEASE SPRING 1
29 FIXE FLANGE ASS Y 1
30 SLIDER FLANGE ASS Y Includes 31 To 32 1
31 CAM ASS Y 1
31 CAME ASSEMBLE *CAM ASS Y Engine 900 ACE 1
32 BUSHING 1
33 Roller Axle 6
34 SPRING COVER ASS Y Includes 11 To 13 1
34 SPRING COVER ASS Y Includes 11 To 13 1
35 THRUST WASHER (12.000 per pack) 12
35 STOPPER WASHER 12
36 RAMP AXLE (6.000 per pack) 6
37 SEAT SPRING 1
38 GOVERNOR CUP ASS Y 1
39 FIXE FLANGE ASS Y 1
40 SLIDER SHOE (9.000 per pack) 12
41 MOBILE FLANGE ASS Y Includes 3 To 5 1
41 FLASQUE COUL.AS*FLANGE-SLID.ASSY Includes 3 To 5 1
42 ROLLER Model-900 ACE (6.000 per pack) 6
42 ROULEAU *ROLLER Model-1200 4-TEC (6.000 per pack) 6
43 RAMP 715 Engine 600 ACE (6.000 per pack) 7
43 RAMPE *RAMPE Model-1200 4-TEC (6.000 per pack) 6
44 SPACER (Adjustment Part Use If Needed) 3
45 SPACER (Adjustment Part Use If Needed) (5.000 per pack) 3
46 SIDE PROTECTOR 1
47 FRONT BELT GUARD BRACKET 1
48 REINFORCEMENT 1
49 GUIDE 1
50 BELT GUARD 1
52 REINFORCEMENT PLATE 1
53 FRONT BRACKET 1
54 FRONT SUPPORT 1
55 PULLEY DRIVE BOLT 1
56 CONDUIT D AIR *CVT AIR DUCT 1
57 STOPPER 1
58 BELT GUARD BRACKET 1
59 PLAQUE *PLATE 1
60 CONDUIT D AIR *CVT AIR DUCT 1
61 SAFETY BELT GUARD DECAL 1
61 DECAL ENGLISH 1
64 FLAT WASHER (10.000 per pack) 3
65 ATTACHE *BRACKET 1
66 STRENGTH WASHER 1
67 HEX. CAP SCREW M8 X 75 (2.000 per pack) 1
68 DRIVE BELT Model-600 ACE 1
68 COURROIE *DRIVE BELT 1
69 DECALQUE *DECAL BELT 1
70 RESSORT *CLUTCH SPRING Model-900 ACE North America 1
70 RESSORT *CLUTCH SPRING Model-1200 4-TEC 1
71 PIVOT STUD 2
