SKI-DOO MXZ - 2-STROKE MXZ - 2-STROKE 08- Rear Suspension - Package Sport

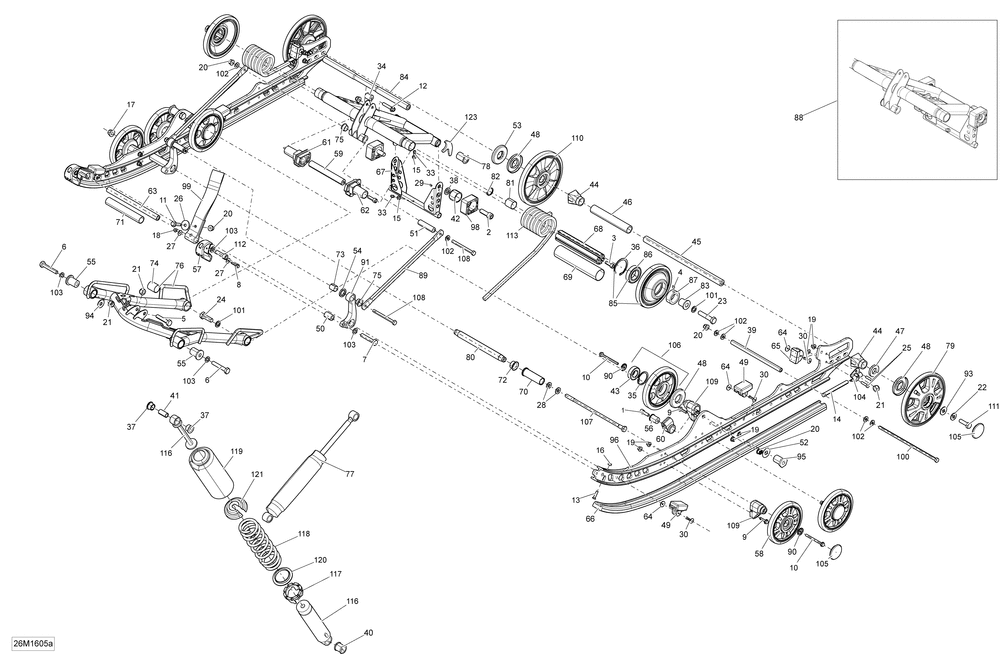

08- Rear Suspension - Package Sport
№ Наименование Примечание Кол-во
1 SOCKET SCREW M8 X 25 (2.000 per pack) 2
2 SOCKET HEAD SCREW M12 X 35 2
3 SOCKET HEAD SCREW M8 X 25 SCOTCH GRIP (4.000 per pack) 0
4 SOCKET SET SCREW M6 X 8 (5.000 per pack) 2
5 HEX. SCREW M10 X 50 (10.000 per pack) 1
6 Hex. Cap Screw M10 X 60 2
7 HEX. SCREW M10 X 55 SCOTCH GRIP RT (5.000 per pack) 1
8 HEX. FLANGED SCREW M5 X 25 2
9 HEX. FLANGE SCREW M6 X 25 6
10 HEX. FLANGE SCREW M6 X 70 6
11 HEX. FLANGED SCREW M8 X 30 (10.000 per pack) 1
12 Hex. Flanged Screw M8 X 40 1
13 PHILLIPS SCREW M6 X 25 (4.000 per pack) 1
14 HEX SCREW M10 X 100 2
15 NUT-HEXAGONAL DIN.934 (25.000 per pack) 1
16 Elastic Stop Nut M6 1
17 Flanged Elastic Nut M10 1
18 FLANGED ELASTIC NUT M5 (4.000 per pack) 2
19 Hex. Flanged Elastic Nut M6 0
20 NUT-FLANGE ELASTIC DIN.6926 0
21 Elastic Locking Nut M10 0
22 CONICAL SPRING WASHER 10 MM (10.000 per pack) 2
23 HEX. CAP SCREW M12 X 60 SCOTCH GRIP (2.000 per pack) 2
24 HEX. CAP SCREW M12 X 35 (5.000 per pack) 2
25 HEX SCREW M6 X 25 4
26 FLAT WASHER 8 MM 2
27 RONDELLE *WASHER (4.000 per pack) 4
28 FLAT WASHER 4
29 DOWEL PIN 4 X 8 MM (10.000 per pack) 2
30 POP RIVET 3/16" (10.000 per pack) 0
33 GREASE FITTING (10.000 per pack) 2
34 CUSHION Model-LE & SE (2.000 per pack) 1
35 RETAINING RING 3
36 RETAINING RING 1
37 Bushing Urethane 2
38 RONDELLE *WASHER (5.000 per pack) 2
39 PIVOT ARM AXLE 1
40 COUSSINET URETH*CUSHION-URETH. 1
41 Bushing 1
42 BLOCK GUIDE (2.000 per pack) 2
43 BALL BEARING 5
44 REAR WHEEL SPACER 3
45 REAR AXLE 1
46 SPACER 1
47 RONDELLE *WASHER 1
48 LABYRINTH SEAL 9
49 RUBBER STOPPER 4
50 DOUILLE *BUSHING 1
51 AXLE BAR (LONG) Model-LE 2
52 RONDELLE *WASHER (5.000 per pack) 2
53 LABYRINTH SEAL 1
54 PLASTIC SPACER 2
55 AXE *AXLE 2
56 RETAINER CUSHION (2.000 per pack) 2
57 RUNNER PROTECTOR 2
58 DEEP BLACK WHEEL ASS Y 141 MM 4
59 SPRING CAM AXE 1
60 SPRING SUPPORT 2
61 RH SPRING CAM 1
62 LH SPRING CAM 1
63 AXLE STRAP 1
64 RONDELLE * WASHER (6.000 per pack) 0
65 RUBBER STOPPER 2
66 BLACK SLIDER SHOE 120" 1
67 PIVOT ARM 1
68 SPRING AXLE 1
69 PLASTIC BUSHING 1
70 ENTRETOISE *SPACER 2
71 SPACER 1
72 CUSHION 2
73 COUSSINET *BUSHING 1
74 COUSSINET *BUSHING 4
75 SWIVEL BUSHING 4
76 FRONT ARM ASS Y 1
77 REAR SHOCK 1
78 CUSHION 2
79 BLACK WHEEL ASS Y 180 MM 2
80 ARBRE DE PIVOT *AXLE 1
81 COUSS. ALL *EXT. BUSHING 2
82 RONDELLE *WASHER 2
83 COUSSINET *BUSHING 2
84 UPPER SHAFT 1
85 BLACK WHEEL ASS Y 144 MM 2
86 BALL BEARING 1
87 RETAINING RING (2.000 per pack) 2
88 REAR ARM ASS Y 1
89 TIGE ACCEL. *LINK ROD 2
90 WHEEL CUP M6 6
91 LH ROCKER ARM 1
91 RH ROCKER ARM 1
93 RONDELLE *WASHER (3.000 per pack) 2
94 RONDELLE *WASHER (4.000 per pack) 2
95 LOWER AXLE 2
96 RUNNER 120 1
98 RH BLOCK 4 POSITIONS 1
98 LH BLOCK 4 POSITIONS 1
99 STOPPER STRAP 1
100 BOLT M8 X 248MM 1
101 RONDELLE *WASHER (5.000 per pack) 0
102 Washer 0
103 Washer 0
104 TENSIONER 2
105 BLACK WHEEL CAP 6
107 BOLT M10 X 251MM 1
108 SCREW M8 X 90 0
109 CASTED SUPPORT 6
110 DEEP BLACK WHEEL ASS Y 180 MM 1
111 SCREW-HEX.CAP WITH NYLON PATCH 2
112 SOCKET HEAD SCREW M10 X 35 2
113 BLACK RH SPRING SQUARE 1
113 BLACK LH SPRING SQUARE 1
116 CENTER SHOCK 1
117 ADJUSTEMENT CAM 1
118 BLACK SPRING 1
119 PROTECTOR 1
120 SPRING GUIDE 1
121 Spring Stopper 1
123 LOWER SHAFT 1
