SKI-DOO MXZ - 2-STROKE MXZ - 2-STROKE 09- Frame - Package Sport

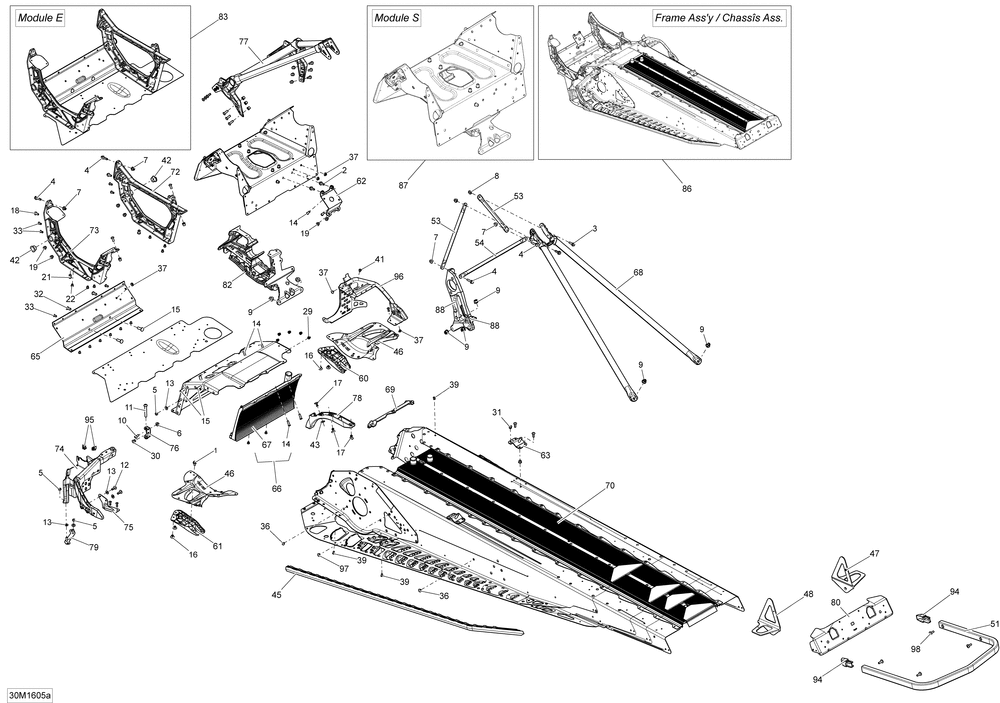

09- Frame - Package Sport
№ Наименование Примечание Кол-во
1 Hex. Flanged Screw M6 X 12, Scotch Grip 2
2 Hex. Flanged Screw M6 X 16 2
3 Hex. Flanged Screw M6 X 20 2
4 Hex. Flanged Screw M6 X 25 4
5 Elastic Stop Nut M6 0
6 Hex. Flanged Nut M6 1
7 Hex. Flanged Elastic Nut M6 4
8 Elastic Flanged Nut M6 X 1.0 2
9 Hex. Flanged Elastic Nut M8 7
10 Tork Screw M6 X 16 1
11 TORX SCREW M8 X 55 1
12 TORK SCREW M6 X 18 2
13 FLAT WASHER (10.000 per pack) 5
14 CLINCH STUD M6 X 20 9
15 CLINCH STUD 4
16 Pop Rivet 3/16" 4
17 POP RIVET 3/16tahos_ (25.000 per pack) 3
18 Hex. Flanged Screw M6 X 16 2
19 HEMLOCK RIVET 6.5 MM (5.000 per pack) 0
21 HEMLOCK RIVET 6.5 MM (4.000 per pack) 0
22 STAVEX RIVET (20.000 per pack) 0
29 HENROB RIVET (10.000 per pack) 12
30 HEMLOCK RIVET (10.000 per pack) 0
31 HEMLOCK RIVET 6.4 MM (10.000 per pack) 0
32 MONOBOLT RIVET 6.4 (2.000 per pack) 2
33 MONOBOLT RIVET 4.8 MM (4.000 per pack) 6
36 FULL MOON DART 8 MM Model-LE 3
37 FULL MOON DART 5 MM 2
37 BLACK DART 5 MM 3
39 AVEX RIVET (50.000 per pack) 5
41 AVEX RIVET (50.000 per pack) 1
42 BUSHING 2
43 RONDELLE *WASHER (10.000 per pack) 1
45 ROULEAU DROIT *ROLLER-RH 1
45 ROULEAU *ROLLER-LH 1
46 RENFORT DR *REINFORCEMENT 1
46 RENFORT GA *REINFORCEMENT 1
47 RH SLIDE BRACKET 1
48 LH SLIDE BRACKET 1
51 CLEAR REAR BUMPER 1
53 UPPER COLUMN SUPPORT Model-1200 4-TEC 2
54 CENTER COLUMN SUPPORT 1
60 RH DEFLECTOR 1
61 LH DEFLECTOR 1
62 MAG ENGINE SUPPORT 1
63 RH REAR BASE 1
63 LH REAR BASE 1
65 FRONT MEMBER 1
66 FRONT RADIATOR 1
67 FRONT RADIATOR 1
68 REAR MEMBER 1
69 JOINT *SEAL 1
70 REAR RADIATOR 120 1
72 RH MEMBER 1
73 LH MEMBER 1
74 ETRIER GA. *LH.STIRUP 1
75 SUPPORT 1
76 U-ATTACH 1
77 FRONT MEMBER Model-1200 4-TEC 1
78 FRONT PROTECTOR 1
79 ATTACHE *ATTACH 1
80 REAR CAP 1
82 FRONT SUSPENSION SUPPORT 1
83 FRONT E MODULE 1
86 FRAME ASS Y 1
87 MODULE S *CROSS MEMBER 1
88 PULLEY SUPPORT 1
94 CAPUCHON *CAP 2
95 PANEL NUT M5 X 0.8 (10.000 per pack) 2
96 ETRIER DROIT *RH.STIRUP 1
97 FULL MOON DART 10 MM 2
98 TORX-TRUSS M/S N.PATCH M6 X 18 0
