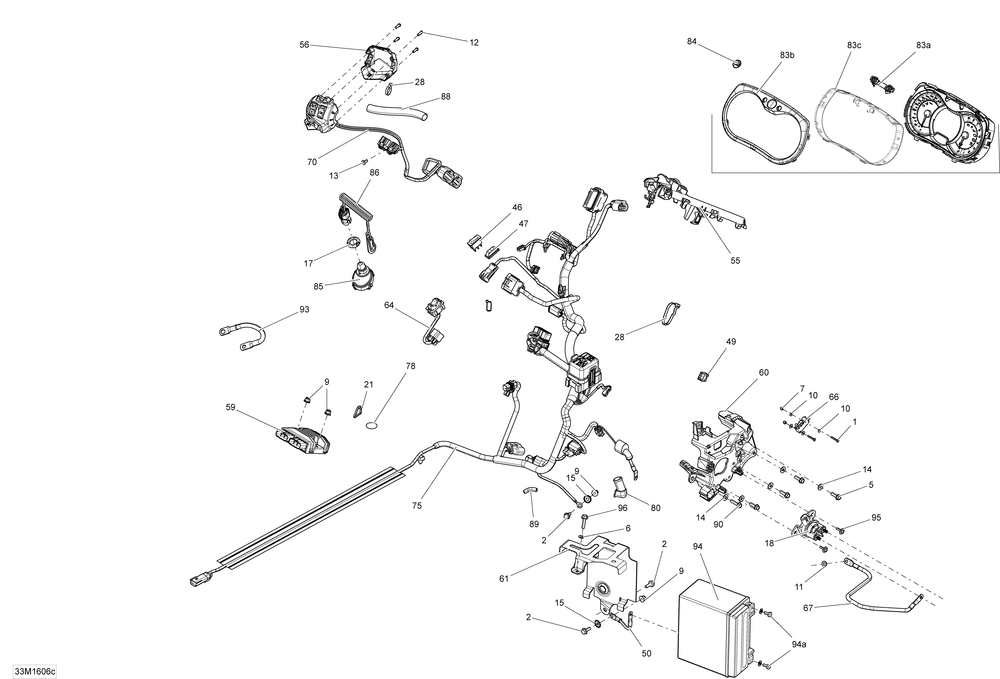

10- Electrical System - 1200 4-TEC Package Blizzard
№ Наименование Примечание Кол-во
1 HEX SCREW M3 X 20 2
2 Hex. Flanged Screw M6 X 16 3
5 HEX. FLANGED SCREW M6 X 20 (5.000 per pack) 4
6 Flat Washer 1
7 ELASTIC STOP NUT M3 (10.000 per pack) 2
8 Elastic Stop Nut M6 3
9 Hex. Flanged Elastic Nut M6 4
10 FLAT WASHER M3 STAINLESS (10.000 per pack) 4
11 FLAT WASHER 6 MM (10.000 per pack) 1
12 SCREW TYPE 8-18 HI-LO TORX T-20 4
13 PAN SCREW FORMING 7500C 1
14 FLAT WASHER (10.000 per pack) 5
15 Lock Washer Serrated M6 2
17 Safety Nut (DESS Switch) 1
18 Starter Relay 1
19 Tie-Rap 94 mm 1
21 Tie-Rap 142 mm 1
28 Tie-Rap 180 mm 0
46 ROCKER SWITCH 1
47 SWITCH PROTECTOR 1
48 MALE TERMINAL HOUSING 6 CIRCUITS 1
49 MALE TERMINAL HOUSING 4 CIRCUITS 1
50 GROUND WIRE 1
55 CONNECTOR PLATE 1
56 HOUSING PLATE 1
59 VOLTAGE REGULATOR 1
60 PLAQUE *PLATE 5
61 SUPPORT *SUPPORT 1
64 SWITCH 1
66 SWITCH ASS Y 1
67 BATTERY WIRE 1
70 LOGEMENT *HOUSING Includes 1 To 6 1
75 CABLAGE ASS. *WIRING HARNESS Includes 1 To VSS 1
78 ADHESIVE PATCH 1
80 PROTECTOR CAP 1
83 INDICATEUR *INDICATOR Includes 1 To 4 1
83a SPEEDOMETER BUTTON RS STD 1
83b GAUGE RING RS STD 1
83c Lens 1
84 BRP Logo, 20 mm 1
85 INTERRUPT.DESS *SWITCH-DESS 1
86 ENS CLE RF *RF KEY KIT 1
86 CLEF *KEY 1
88 PROTECTOR TUBE 0
89 Trim 0
90 Hex. Flanged Forming Screw M6 X 25 1
93 GROUND WIRE 1
94 LEAD BATTERY 18 AMPERES Model-LE 1
94a Battery Bolt Kit 1
95 Screw M4 X 16 2
96 Hex. Flanged Screw M6 X 25 1
