SKI-DOO MXZ - 4-STROKE MXZ - 4-STROKE 10- Electrical System - 600 ACE

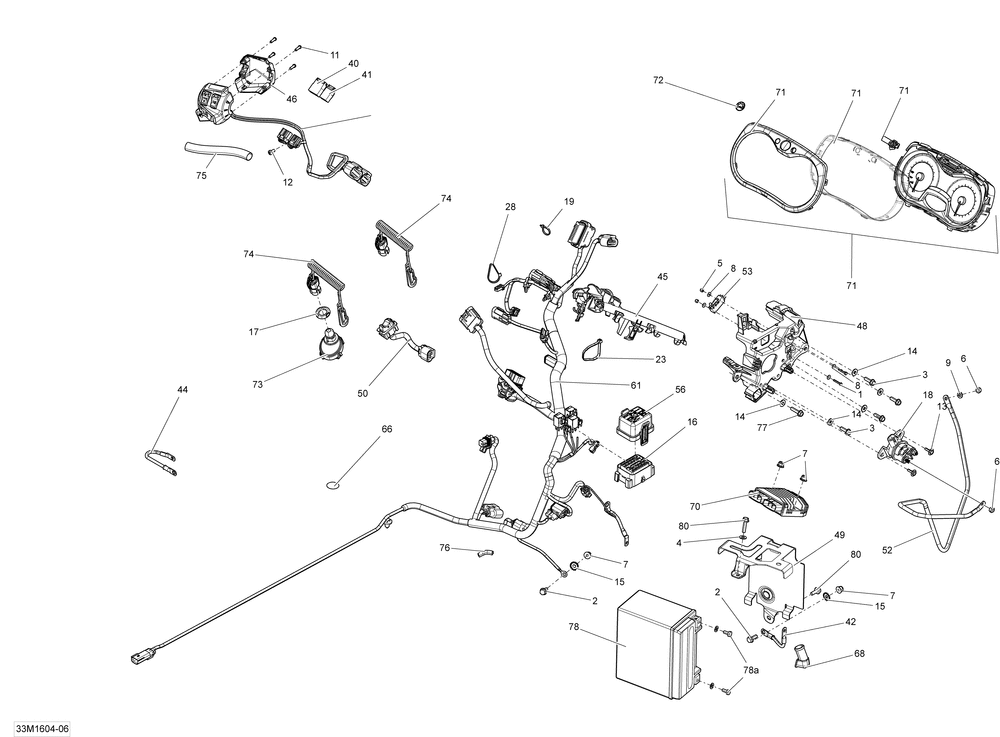

10- Electrical System - 600 ACE
№ Наименование Примечание Кол-во
1 HEX SCREW M3 X 20 2
2 Hex. Flanged Screw M6 X 16 3
3 HEX. FLANGED SCREW M6 X 20 (5.000 per pack) 4
4 Flat Washer 1
5 ELASTIC STOP NUT M3 (10.000 per pack) 2
6 Elastic Stop Nut M6 3
7 Hex. Flanged Elastic Nut M6 4
8 FLAT WASHER M3 STAINLESS (10.000 per pack) 4
9 FLAT WASHER 6 MM (10.000 per pack) 1
11 SCREW TYPE 8-18 HI-LO TORX T-20 4
12 PAN SCREW FORMING 7500C 1
13 Screw M4 X 16 2
14 FLAT WASHER (10.000 per pack) 5
15 Lock Washer Serrated M6 2
16 CASE ASS Y 1
17 Safety Nut (DESS Switch) 1
18 Starter Relay 1
19 Tie-Rap 94 mm 1
23 Tie-Rap 350 mm 1
28 Tie-Rap 180 mm 8
40 MALE TERMINAL HOUSING 6 CIRCUITS 1
41 MALE TERMINAL HOUSING 4 CIRCUITS 1
42 GROUND WIRE 1
44 GROUND WIRE 1
45 CONNECTOR PLATE 1
46 HOUSING PLATE 1
47 VOLTAGE REGULATOR 1
48 PLAQUE *PLATE 1
49 SUPPORT *SUPPORT 1
50 SWITCH 1
52 BATTERY WIRE 1
53 SWITCH ASS Y 1
56 FUSE BOX COVER 1
57 LOGEMENT *HOUSING Package-BackCountry Adrenaline 1
61 CABLAGE ASS. *WIRING HARNESS Includes 1 To VSS 1
66 ADHESIVE PATCH 1
68 PROTECTOR CAP 1
71 INDICATEUR *INDICATOR Includes 1 To 4 Model-600 ACE 1
71a Lens 1
71b SPEEDOMETER BUTTON RS STD 1
71c GAUGE RING 1
72 BRP Logo, 20 mm 1
73 INTERRUPT.DESS *SWITCH-DESS 1
74 CLEF *KEY 2
75 PROTECTOR TUBE 0
76 Trim 0
77 Hex. Flanged Forming Screw M6 X 25 1
78 LEAD BATTERY 18 AMPERES Model-LE 1
78a Battery Bolt Kit 1
80 Hex. Flanged Screw M6 X 25 1
