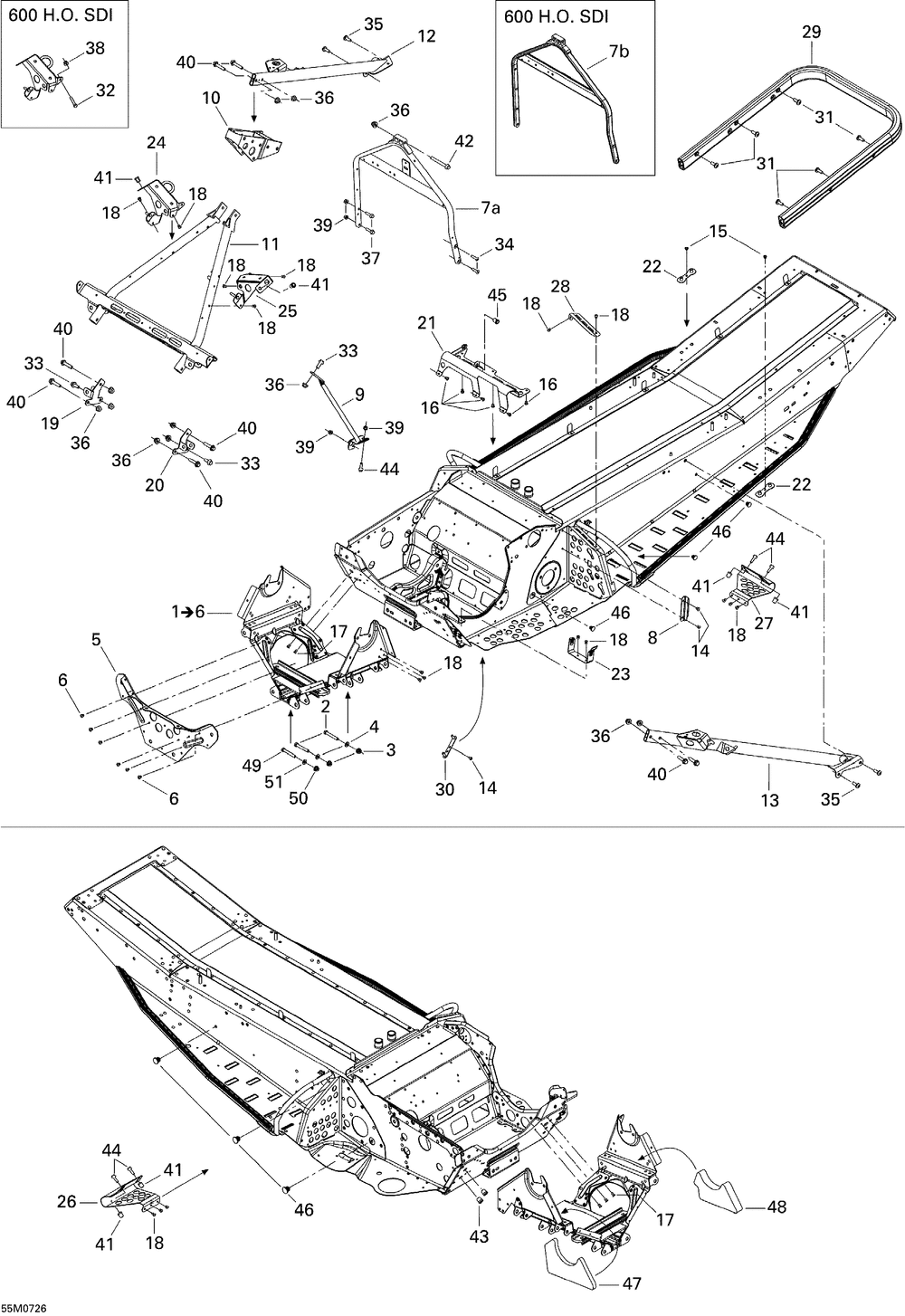

09- Frame and Components LTD 600 HO SDI

№	Наименование	Кол-во
1	CROSS MEMBER Includes 1 to 6	1
2	HEX. SCREW M8 X 55 (10.000 per pack)	2
3	Hex. Flanged Elastic Nut M8	2
4	Flat Washer 8 mm	2
5	FRONT PLATE	1
6	AVEX RIVET (50.000 per pack)	6
7b	HANDLE SUPPORT	1
8	CABLE PROTECTOR	1
9	BRACE BLACK	1
10	BRACKET BLOCK	1
11	UPPER CROSS MEMBER	1
12	RH MEMBER	1
13	LH MEMBER	1
14	Pop Rivet 3/16"	3
15	Pop Rivet 3/16"	2
18	AVEX RIVET (50.000 per pack)	18
19	RH SHOCK BRACKET	1
20	LH SHOCK BRACKET	1
21	INTAKE AIR ADMISSION SUPPORT	1
22	REAR SEAT BRACKET	2
23	GUARD BELT BRACKET BLACK	1
24	RH CONSOLE SUPPORT	1
25	LH CONSOLE SUPPORT	1
26	RH TOE HOLD	1
27	LH TOE HOLD	1
28	PLATE BLACK	1
29	REAR BUMPER C/U	1
29	REAR BUMPER EUR	1
30	TRUNK BRACKET BLACK	1
31	Hex. Screw M8 X 20	6
32	Hex. Flanged Screw M6 X 35	1
33	HEX. FLANGED SCREW M8 X 20 (10.000 per pack)	3
34	SOCKET HEAD SCREW M6 X 20 SCOTCH GRIP (4.000 per pack)	2
35	TORX SCREW M8 X 13 (10.000 per pack)	4
37	Hex. Flanged Screw M6 X 25	2
38	Hex. Flanged Elastic Nut M6	1
40	HEX. FLANGED SCREW M8 X 35 (10.000 per pack)	8
41	INSERT	6
42	HEX. FLANGED SCREW M8 X 70	1
43	INSERT	2
44	Hex. Flanged Screw M6 X 20	5
45	Insert	1
46	Fastener Panel	6
47	RH FRONT FOAM	1
48	LH FRONT FOAM	1
