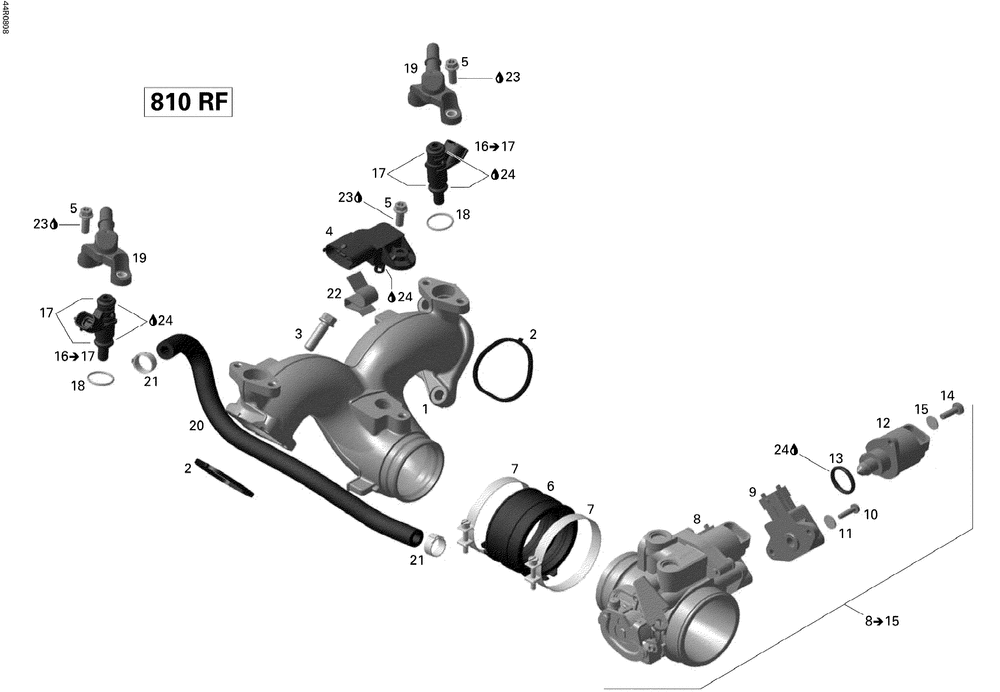

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | AIR INTAKE MANIFOLD | 1 | |
| 2 | JOINT *GASKET | 2 | |
| 3 | FLANGED TORX SCREW M8 X 25 Tightening Torque 23 Nm +/- 12% | 4 | |
| 4 | PRESSURE AND TEMPERATURE SENSOR | 1 | |
| 5 | FLANGED TORX SCREW M6 X 16 (5.000 per pack) | 5 | |
| 6 | FLANGE *INTAKE NECK | 1 | |
| 7 | CLAMP | 2 | |
| 8 | THROTTLE BODY ASS Y. Includes 8 to 15 | 1 | |
| 9 | POSITION SENSOR | 1 | |
| 10 | PHILLIPS SCREW M4 X 16 (10.000 per pack) | 2 | |
| 11 | Flat Washer 4 mm Stainless | 2 | |
| 12 | IDLE BYPASS VALVE | 1 | |
| 13 | O-RING | 1 | |
| 14 | BINDING HEAD SCREW M5 X 16 | 2 | |
| 15 | SNAP RING | 2 | |
| 16 | INJECTION VALVE | 2 | |
| 17 | O-Ring | 4 | |
| 18 | O-Ring | 2 | |
| 19 | FUEL RAIL | 2 | |
| 20 | FORMED HOSE | 1 | |
| 21 | OETIKER CLAMP (5.000 per pack) | 3 | |
| 22 | WIRE CLAMP | 1 | |
| 23 | LOCTITE 243 10 ML | 0 | |
| 24 | GRAISSE *GREASE | 0 |
