SKI-DOO MX Z 550F MX Z 550F 08- Front Arm MX Z 550F

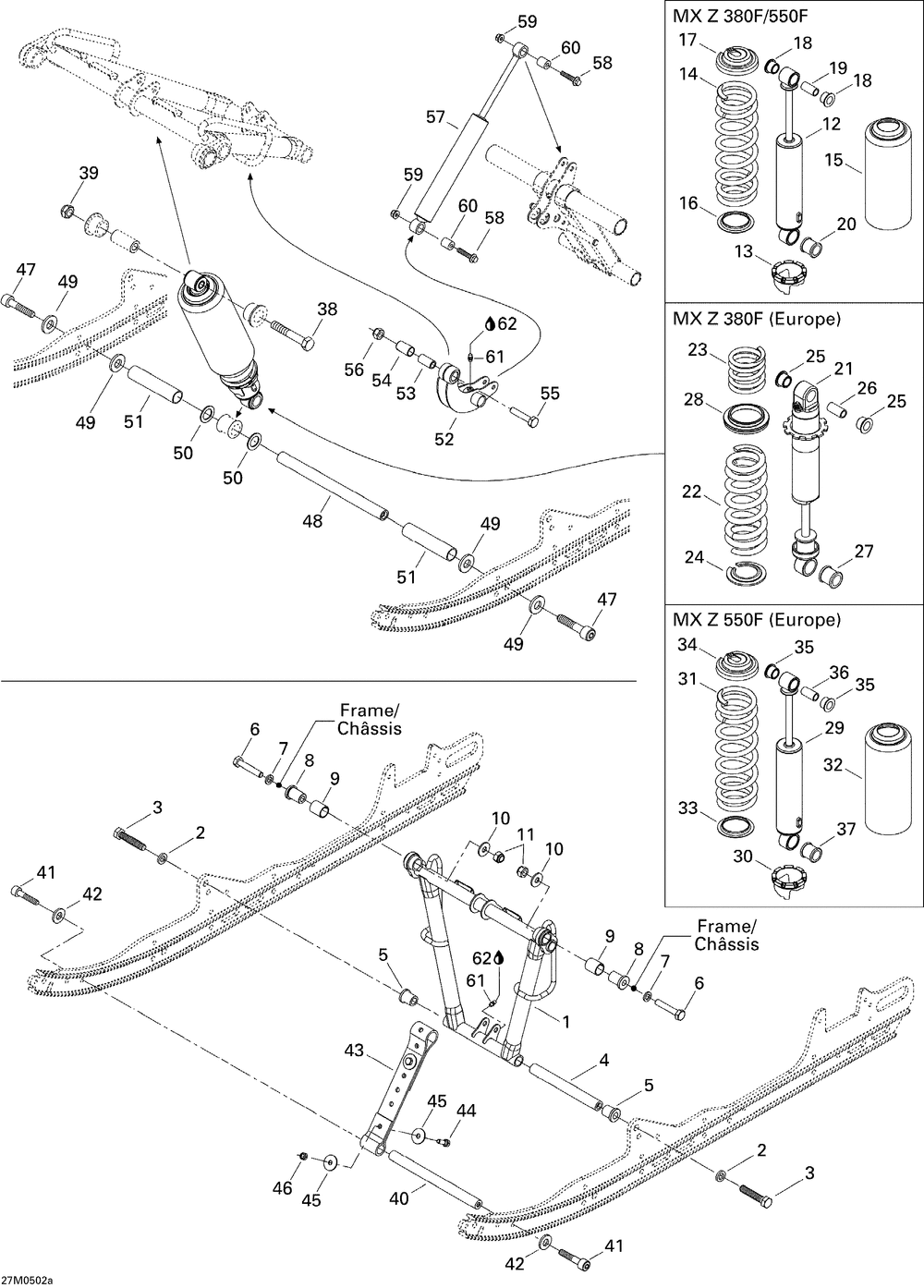

08- Front Arm MX Z 550F
№ Наименование Примечание Кол-во
1 FRONT ARM 1
2 RONDELLE *WASHER (25.000 per pack) 2
3 HEX. SCREW M12 X 60 SCOTCH GRIP (5.000 per pack) 2
4 ARBRE *SHAFT 1
5 CUSHION 2
6 HEX. SCREW M10 X 55 (5.000 per pack) 2
7 RONDELLE *WASHER (25.000 per pack) 2
8 AXE D ALLONGE *EXTENSION 2
9 EXTENDED BUSHING 2
10 RONDELLE *WASHER (10.000 per pack) 2
11 ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 2
12 CENTER SHOCK MX Z 380F / MX Z 550F 1
13 CAM 45 1
14 BLACK SPRING 1
15 PROTECTOR 1
16 Spring Guide 1
17 SPRING STOPPER 1
18 Bushing Urethane 2
19 Bushing 1
20 COUSSINET URETH*CUSHION-URETH. 1
31 SPRING Europe 1
38 HEX. SCREW M10 X 50 (10.000 per pack) 1
40 AXE *AXLE 1
41 SOCKET HEAD SCREW M10 X 35 SCOTCH GRIP (10.000 per pack) 2
42 RONDELLE *WASHER (10.000 per pack) 2
43 STOPPER STRAP 1
44 Hex. Flanged Screw M8 X 25 2
45 FLAT WASHER (25.000 per pack) 4
46 Hex. Flanged Elastic Nut M8 2
47 SOCKET HEAD SCREW M12 X 35 SCOTCH GRIP (5.000 per pack) 2
48 CENTER SHOCK SHAFT 1
50 RONDELLE *WASHER (25.000 per pack) 2
51 SPACER (2.000 per pack) 2
52 ROCKER 1
53 ROCKER AXLE 1
54 CUSHION 1
57 REAR SHOCK MX Z 380F / MX Z 550F 1
58 Hex. Flanged Screw M8 X 40 2
60 CUSHION Model-LE & SE (2.000 per pack) 2
61 GREASE FITTING (10.000 per pack) 2
62 SUSPENSION GREASE 10 X 400 G 0
