SKI-DOO MX Z 550F MX Z 550F 01- Engine Support And Muffler (550F)

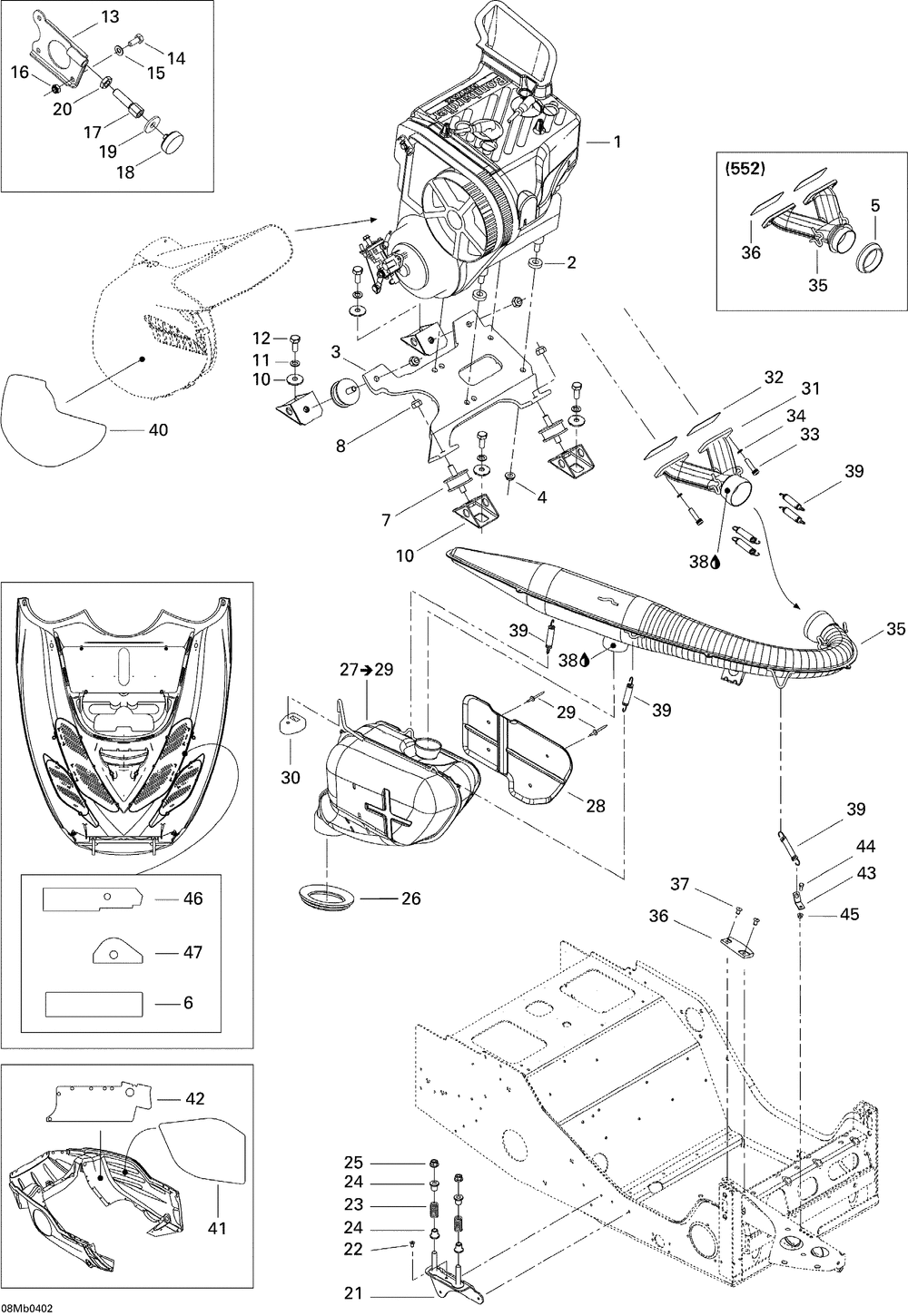

01- Engine Support And Muffler (550F)
№ Наименование Примечание Кол-во
3 ENGINE SUPPORT 1
4 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 4
5 EXHAUST GASKET 1
6 REFLECTIVE SHEET 1
7 RUBBER MOUNT 4
9 ENGINE SUPPORT 4
10 RONDELLE-FREIN *WASHER-LOCK (5.000 per pack) 4
11 WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) 4
12 HEX. SCREW M10 X 25 (10.000 per pack) 4
14 HEX. SCREW M8 X 20 (10.000 per pack) 1
15 Flat Washer 8 mm 1
16 Hex. Elastic Stop Nut M8 1
17 STOPPER SCREW 1
18 STOPPER 1
19 RONDELLE *WASHER (10.000 per pack) 1
20 RH HEX. JAM NUT M12 (5.000 per pack) 1
22 Pop Rivet 3/16" 1
23 SPRING (2.000 per pack) 2
24 GUIDE 4
25 LOCK SPRING NUT DIN.980M (10.000 per pack) 2
26 EXHAUST GROMMET 1
27 MUFFLER ASStahos_Y 550F Includes Items 27 to 29 1
28 HEAT SHIELD 1
29 POP RIVET 3/16tahos_ (25.000 per pack) 4
30 RUBBER BUMPER 1
31 EXHAUST MANIFOLD 1
32 JOINT 1MM *GASKET-1MM (2.000 per pack) 2
33 SOCKET HEAD SCREW M8 X 30 Tightening Torque 21-22 Nm (10.000 per pack) 4
34 WASHER-LOCK DIN.127B (50.000 per pack) 4
36 RUBBER PAD 1
37 Black Pop Rivet 3/16" 2
38 SEALANT LOCTITE 80 ML 0
39 Spring 7
41 REFLECTIVE SHEET 1
42 REFLECTIVE SHEET 1
43 SPRING BRACKET 1
44 HEX. SCREW M5 X 12 (10.000 per pack) 1
45 FLANGED ELASTIC NUT M5 (4.000 per pack) 1
46 REFLECTIVE SHEET BLACK CAB 1
47 REFLECTIVE SHEET BLACK CAB 1
