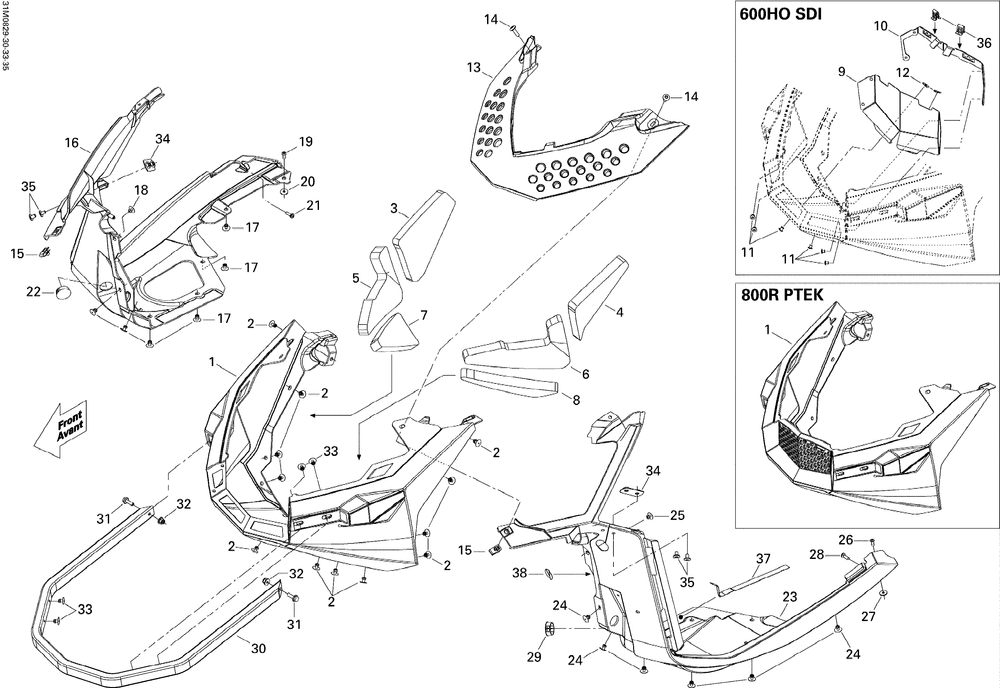

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | DEEP BLACK FRONT BOTTOM PAN 500SS | 1 | |
| 2 | Pop Rivet 3/16" | 12 | |
| 3 | RH FOAM UPPER | 1 | |
| 4 | LH FOAM UPPER | 1 | |
| 5 | RH MIDDLE FOAM | 1 | |
| 6 | LH MIDDLE FOAM | 1 | |
| 7 | RH LOWER FOAM | 1 | |
| 8 | LH LOWER FOAM | 1 | |
| 9 | BOTTOM PAN GRILL 500SS | 1 | |
| 10 | GRILL BRACKET 500SS | 1 | |
| 11 | Rivet 3/16" | 6 | |
| 12 | RONDELLE *WASHER (10.000 per pack) | 2 | |
| 13 | DEEP BLACK BOTTOM PAN CAP | 1 | |
| 14 | TORX SCREW M6 X 20 Model-RT STD | 2 | |
| 15 | Panel Nut M6 X 1.0 | 2 | |
| 16 | COQUE DROITE *PAN-BOTTOM RH | 1 | |
| 18 | Black Pop Rivet 3/16" | 1 | |
| 19 | Pop Rivet 3/16" | 1 | |
| 21 | TRUSS HEAD TORX SCREW K50 X 16 (5.000 per pack) | 1 | |
| 22 | Nylon Cap | 1 | |
| 23 | DEEP BLACK LH BOTTOM PAN | 1 | |
| 30 | BLACK FRONT BUMPER | 1 | |
| 31 | Hex. Flanged Screw M6 X 20 | 2 | |
| 32 | Hex. Flanged Elastic Nut M6 | 2 | |
| 34 | PLAQUE SOUDEE *PLATE-WELD. | 2 | |
| 35 | TORX TRUSS SCREW M6 X 10 | 4 | |
| 36 | Edge Clip | 2 | |
| 37 | Gasket, Neoprene | 0 | |
| 38 | ADHESIVE PATCH | 1 |
