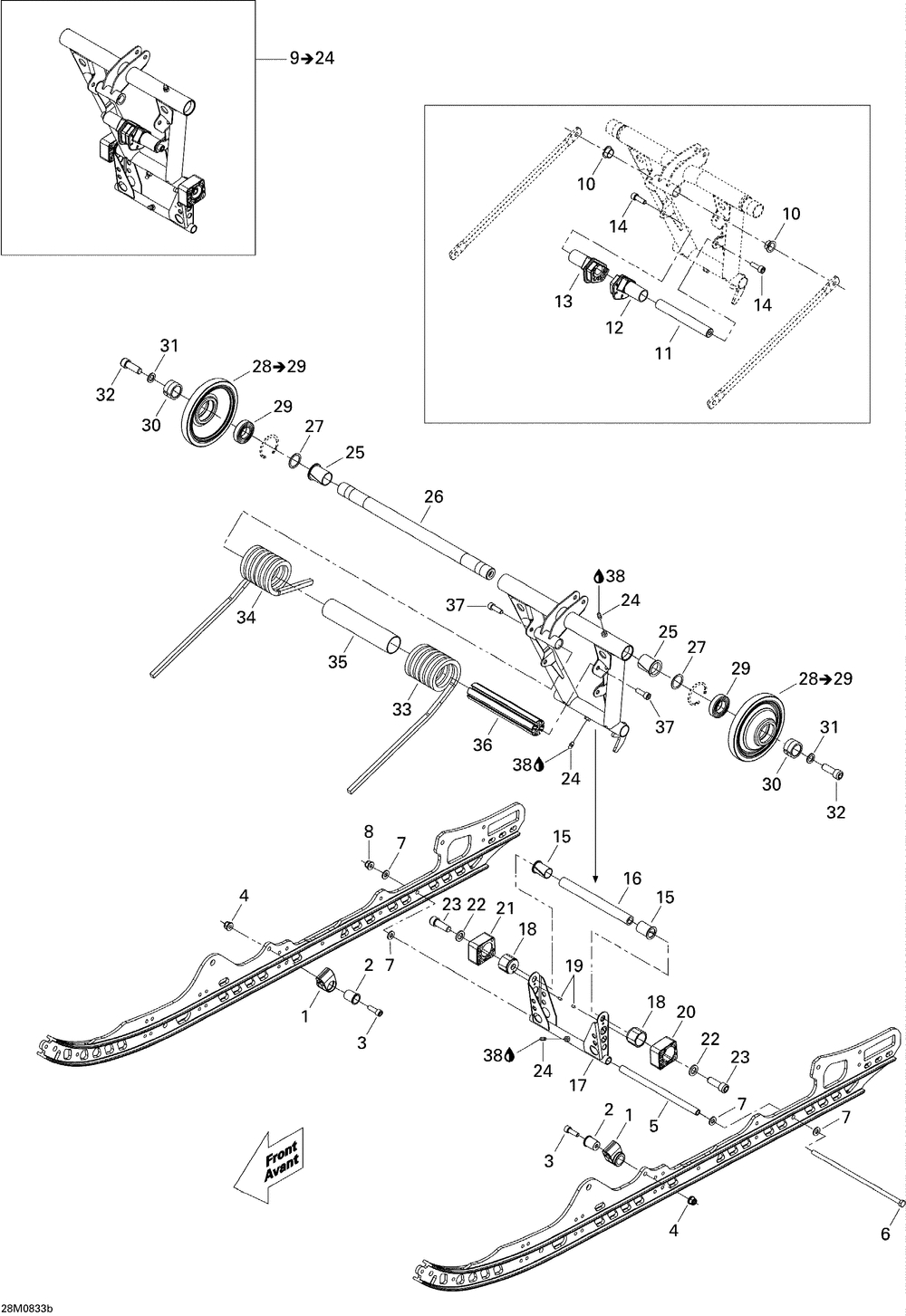

08- Rear Arm Renegade X

№	Наименование	Кол-во
1	SPRING SUPPORT	2
2	RETAINER CUSHION (2.000 per pack)	2
3	Socket Head Screw M8 X 25	2
4	Hex. Flanged Elastic Nut M8	2
5	PIVOT ARM AXLE	1
6	BOLT M8 X 248MM	1
7	Washer	4
9	REAR ARM ASS Y Includes 9 to 24	1
10	SWIVEL BUSHING	2
11	SPRING CAM AXE	1
12	LH SPRING CAM	1
13	RH SPRING CAM	1
14	SOCKET HEAD SCREW M8 X 25 SCOTCH GRIP (4.000 per pack)	2
15	CUSHION	2
16	LOWER SHAFT	1
17	PIVOT ARM	1
18	BLOCK GUIDE (2.000 per pack)	2
19	DOWEL PIN 4 X 8 MM (10.000 per pack)	2
20	RH BLOCK 4 POSITIONS	1
21	RH BLOCK 4 POSITIONS	1
22	RONDELLE *WASHER (5.000 per pack)	2
23	SOCKET HEAD SCREW M12 X 35 SCOTCH GRIP (5.000 per pack)	2
24	GREASE FITTING (10.000 per pack)	3
25	CUSHION	2
26	UPPER SHAFT	1
27	RONDELLE *WASHER	2
28	WHEEL 144 MM ASS Y	2
29	BALL BEARING	1
30	RETAINING RING	2
31	RONDELLE *WASHER (25.000 per pack)	2
33	BLACK LH SPRING SQUARE	1
33	LH SPRING SQUARE	1
34	BLACK RH SPRING SQUARE	1
34	RH SPRING SQUARE	1
35	PLASTIC BUSHING	1
36	SPRING AXLE	1
38	SUSPENSION GREASE 10 X 400 G	0
