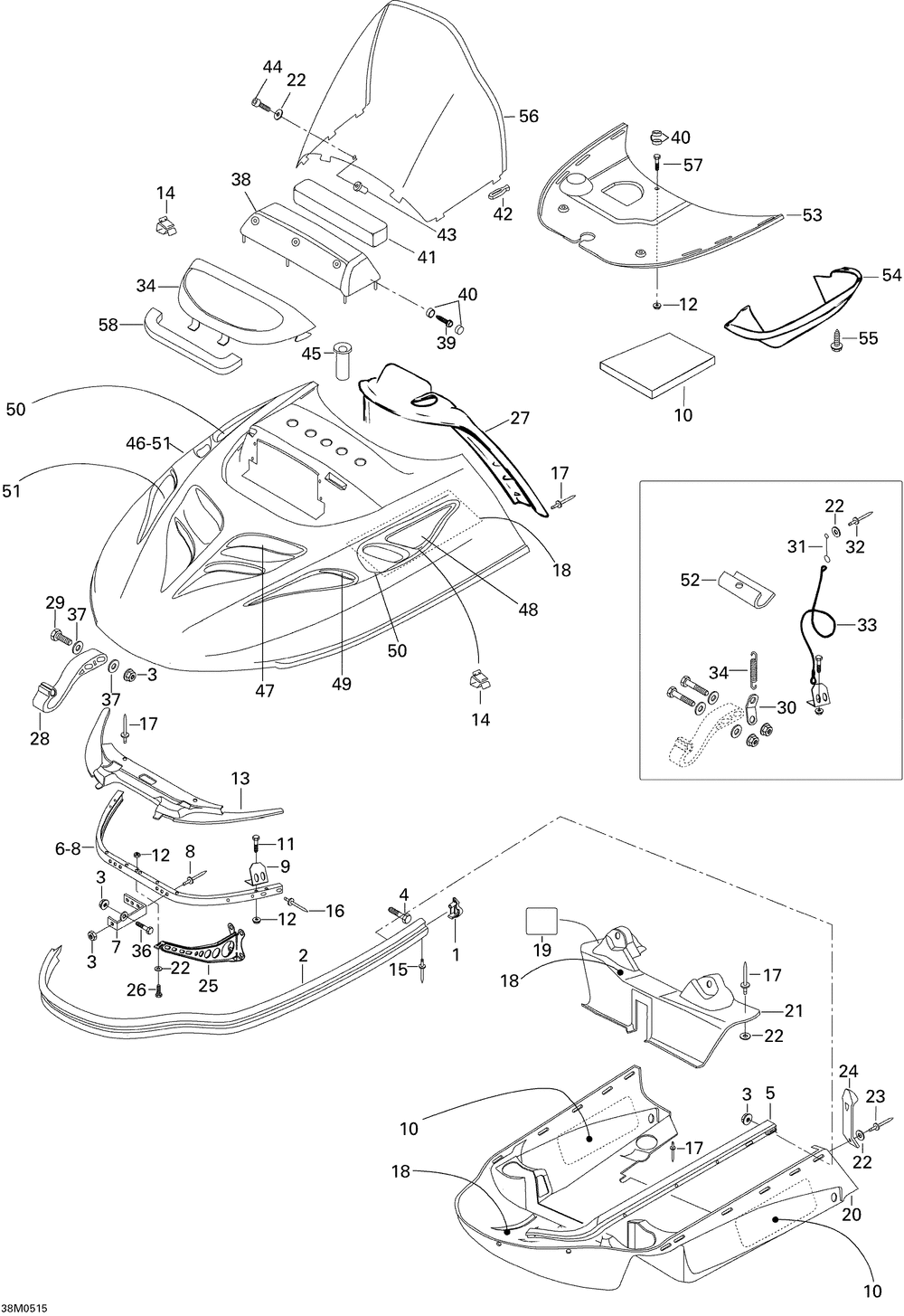

09- Cab And Console 600 SUV

SKI-DOO Skandic SUV 600 Skandic SUV 600 09- Cab And Console 600 SUV

№	Наименование	Кол-во
1	BUMPER CAP L.H.	1
2	BUMPER FRONT	1
3	HEX. FLANGED ELASTIC NUT M6 (10.000 per pack)	20
4	HEX.SCREW M6 X 22 DIN933M8.8ZNE(1=10PCS (10.000 per pack)	14
5	GUIDE CAPOT GA.*GUIDE-HOOD LH	1
5	GUIDE RH	1
6	SUPPORT AVANT *SUPPORT-FRONT Includes 6 to 8	1
7	CHARNIERE*HINGE	1
7	CHARNIERE*HINGE PLATE LEFT	1
8	RIVET STEEL 4.8X8 ZN BRIGHT (1=50PCS) (50.000 per pack)	0
9	GUIDE	1
9	HOOD GUIDE	1
11	SCREW M5 X 16 (5.000 per pack)	4
12	NUT M5	8
13	COVER	1
14	CLIP (10.000 per pack)	0
15	RIVET PROFIX 4.0X13 AL MUSTA(1=50PCS) (50.000 per pack)	0
16	RIVET BLACK 48X16 AL D14(1=50PCS) (50.000 per pack)	0
17	RIVET NOIR *RIVET-BLACK (10.000 per pack)	0
18	REFLECTIVE SHEET (1M X 1M)	1
19	ISOLATION SHEET	1
20	COQUE *BOTTOM PAN SUV LC SUV 600	1
21	COVER	1
22	WASHER A53 DIN9021-ST (1=10PCS) (10.000 per pack)	0
23	RIVET BLACK 4.8X16 AL LONG MAND.(1=25PC (25.000 per pack)	0
24	HOOD LATCH	2
25	BUMBER SUPPORT WELD	1
26	SCREW	2
27	DASH SUV 600	1
28	HINGE	2
29	VIS *SCREW	4
30	SPRING PLATE	2
31	RETENUE CABLE *CABLE-KEEPER SUV 600	1
32	RIVET *RIVET (10.000 per pack)	0
33	CABLE-RETAINER SUV 600	1
34	SPRING	2
35	COUVERCLE *HEADLIGHT COVER	1
36	SCREW M6 X 45	2
37	FLAT WASHER 6 MM (10.000 per pack)	0
38	INTAKE COVER	1
39	SCREW-HEX.	2
40	COUVERCLE *COVER	3
41	FILTER	1
42	WINDSHIELD LATCH (50.000 per pack)	0
43	WELL-NUT S M5 X 14 (1=10PCS) (10.000 per pack)	2
44	SLOT SC. M5 X 20DIN7985M4.6ZNE(1=10PCS) (10.000 per pack)	2
45	SHORT TUBE	6
46	HOOD ASS Y SUV 600 (Black) Includes 46 to 51	1
46	HOOD ASS Y SUV 600 (Yellow) Includes 46 to 51	1
47	MIDDLE GRILL	1
48	LH UPPER GRILL SUV 600	1
48	RH UPPER GRILL	1
49	R.H. LOWER GRILL	1
49	L.H. LOWER GRILL	1
50	RH COVER SUV 600	1
50	COUVERCLE*COVER PLATE LH SUV 600	1
51	COUVERCLE *COVER-FAN SUV 600	1
52	SUPPORT SUV 600	1
53	CONDUIT D AIR*HOOD CENTERPLATE	1
54	COOLING CHANNEL SUV 550	1
55	DART GS Black A19N Model (10.000 per pack)	0
56	WINDSHIELD	1
57	SCREW M5X25	1
58	HEADLIGHT FOAM SEAL SUV 600	1
