SKI-DOO Expedition TUV V800 Expedition TUV V800 07- Front Suspension And Ski

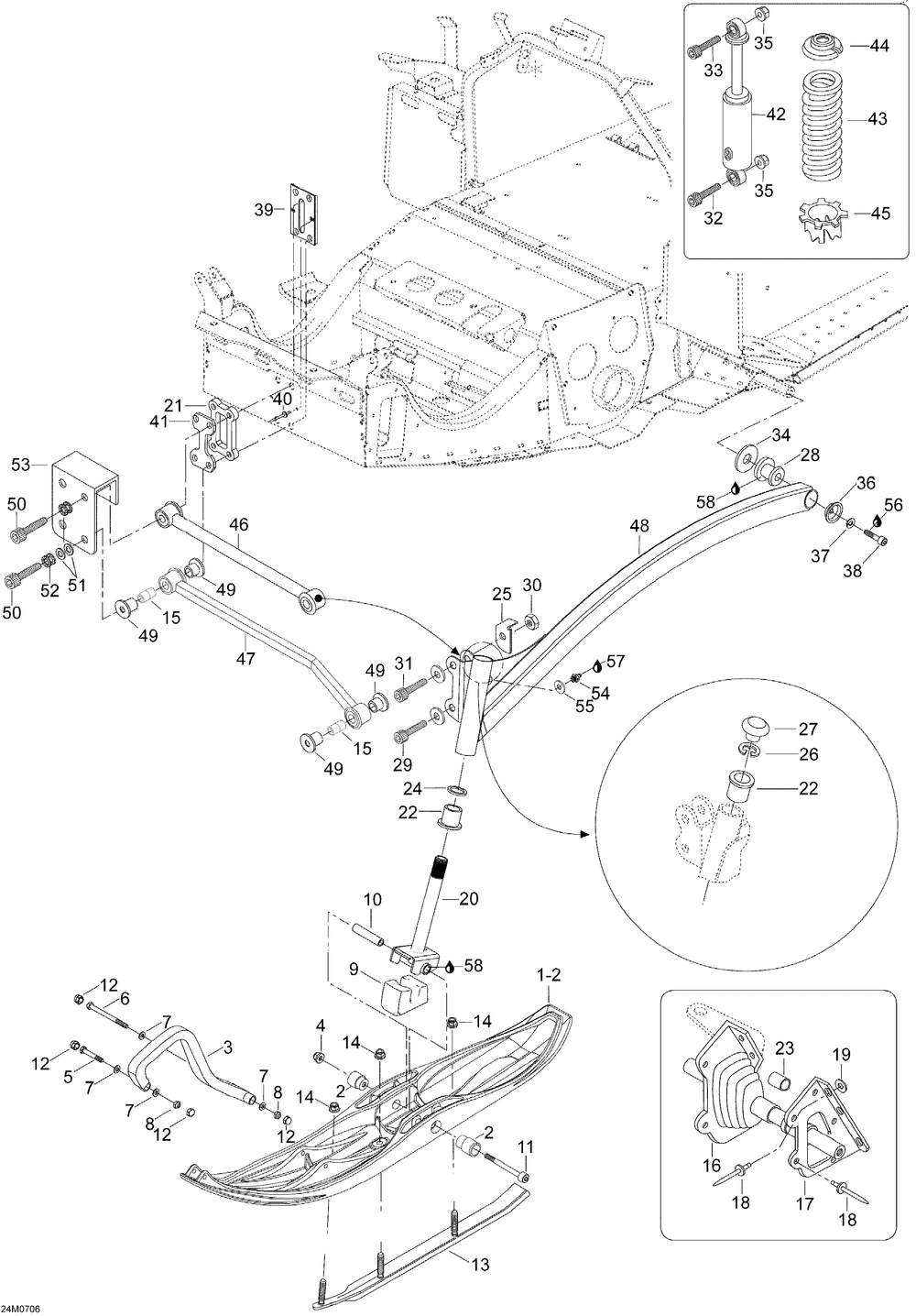

07- Front Suspension And Ski
№ Наименование Примечание Кол-во
1 SKI *ADJ-SKI 2
2 BUSHING 2
3 BLACK HANDLE Model N 2
4 NUT-FLANGE ELASTIC M10X1.5 (1=10PCS) (10.000 per pack) 2
5 HEX. SCREW M8 X 50 (10.000 per pack) 2
6 HEX.SCREW M8X1.25X90 DIN.931 8.8 YIC 2
7 Flat Washer 8 mm 8
8 Hex. Elastic Stop Nut M8 4
9 SKI STOPPER 2
10 SPACER (2.000 per pack) 2
11 ALLEN SCREW M10X140 8.8ZN(1=10PCS) (10.000 per pack) 2
12 COVER 8
13 CARBIDE SKI RUNNER ASS Y 1
15 BUSHING 4
16 RH TIE ROD CAP 1
16 LH TIE ROD CAP 1
17 LH COVER PLATE 1
17 RH COVER PLATE 1
18 RIVET BLACK 4.8X16 AL LONG MAND.(1=25PC (25.000 per pack) 16
19 WASHER A53 DIN9021-ST (1=10PCS) (10.000 per pack) 6
20 SKI LEG 2
21 SPACER 17.5 2
22 CUSHION 4
23 BUSHING 2
24 RONDELLE *WASHER (10.000 per pack) 2
25 RH LOCKING PLATE 1
25 LH LOCKING PLATE 1
26 CIRCLIP (10.000 per pack) 2
27 CAP 2
28 DAMPER 2
29 SCREW ALLEN M12 X 55 2
30 NUT-STOP ELASTIC DIN.985 (5.000 per pack) 4
31 VIS*SCREW M12X60 (10.000 per pack) 2
32 ALLEN SCREW M10 X 50 (1=10PCS) (10.000 per pack) 2
33 ALLEN SCREW M10X55 DIN 912 (1=10PCS) (10.000 per pack) 2
34 RONDELLE *WASHER (10.000 per pack) 2
35 ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 4
36 CUP 2
37 WASHER-LOCK DIN.127B (50.000 per pack) 2
38 SCREW -KOLOR M8X20 DIN912 (1=10PCS) (10.000 per pack) 2
39 PLAQUE *PLATE 1
40 RIVET *RIVET (10.000 per pack) 2
41 MIDDLE PLATE 1
42 AMORTISSEUR*SHOCK 2
43 SPRING 2
44 SPRING STOPPER 2
45 CAME *CAM 2
46 UPPER ARM ASSY 2
47 LOWER ARM 2
48 SWING ARM WELD LH B 2
48 SWING ARM WELD RH 1
49 CUSHION 8
50 SCREW-SOCKET HD.DIN.912 4
51 RONDELLE *WASHER 4
52 WASHER-LOCK 4
53 PLAQUE *PLATE 1
54 GREASE FITTING M6 X 100(1=10PCS) (10.000 per pack) 2
55 RONDELLE *WASHER 2
56 LOCTITE 243 10 ML 0
57 SUSPENSION GREASE 10 X 400 G 0
58 GRAISSE *GREASE 0
