SKI-DOO Skandic WT 600 Skandic WT 600 07- Front Suspension And Ski SWT-WT 600

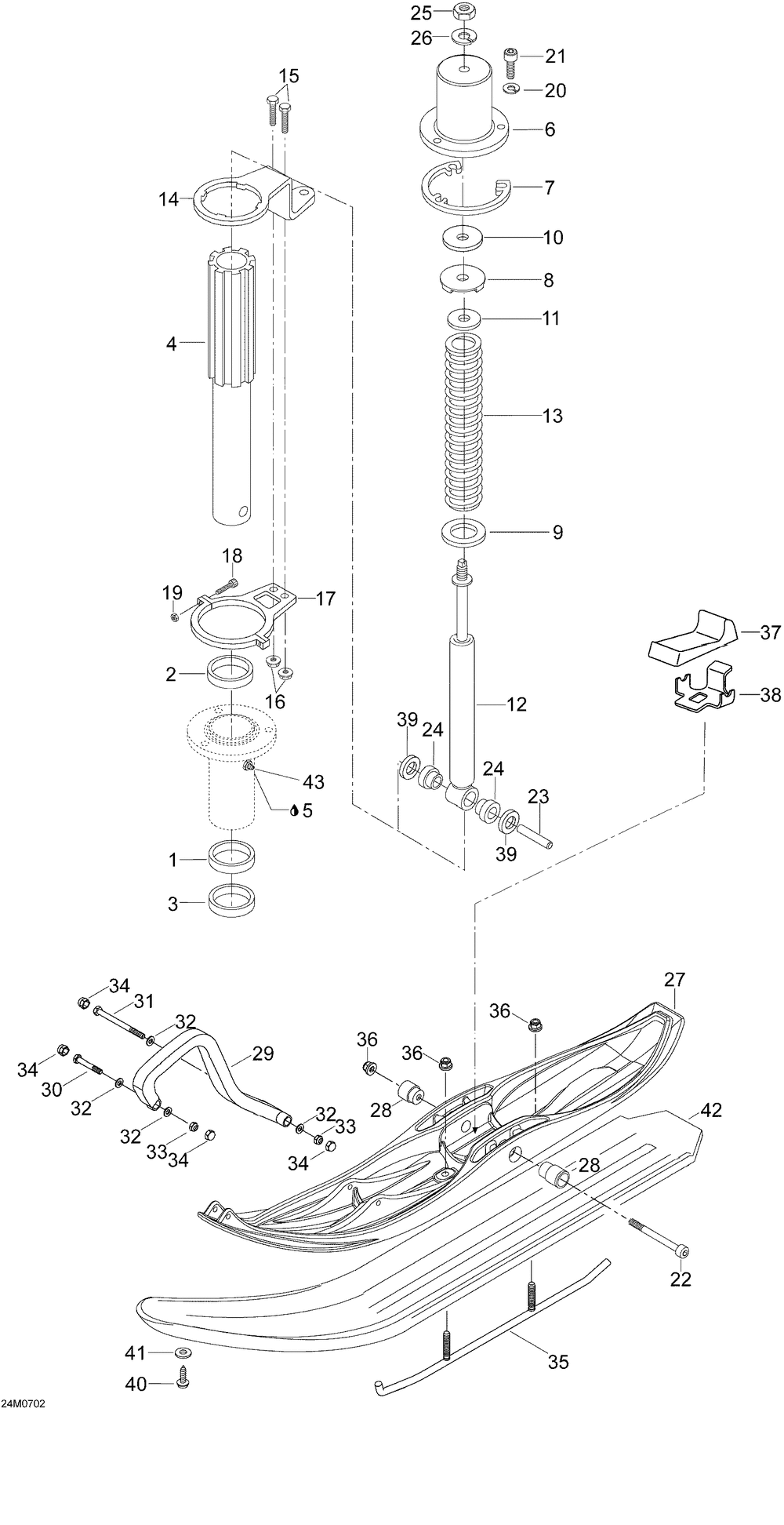

07- Front Suspension And Ski SWT-WT 600
№ Наименование Примечание Кол-во
1 LOWER CUSHION 2
2 UPPER CUSHION 2
3 SEAL 2
4 SKILEG 8 GR 2
5 SUSPENSION GREASE 10 X 400 G 0
6 PAINTED COVER 2
7 SPACER 2
8 STOPPER 2
9 RONDELLE*WASHER 2
10 ABSORBERFIBBER WASHER 2
11 ABSORBERFIBBER WASHER 2
12 AMORT. AV.*SHOCK-FRONT 2
13 SPRING 2
14 STEERING ARM 2
15 HEX. SCREW M6 X 25 (10.000 per pack) 4
16 HEX. FLANGED ELASTIC NUT M6 (10.000 per pack) 4
17 SUPPORT ASS Y 2
18 ALLEN SCR. M4 X 20 DIN 912M8.8 ZNE(1=10P (10.000 per pack) 4
19 Elastic Stop Nut M4 4
20 WASHER-LOCK DIN.127B (50.000 per pack) 6
21 SOCKET HEAD SCREW M8 X 20 (10.000 per pack) 6
22 ALLEN SCREW M10X140 8.8ZN(1=10PCS) (10.000 per pack) 2
23 SKI AXLE 2
24 CUSHION 4
25 ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 2
26 WASHER A10.5DIN 9021-ST MUP(1=10PCS) (10.000 per pack) 2
27 SKI *ADJ-SKI 2
28 BUSHING 2
29 BLACK HANDLE Model N 2
30 HEX. SCREW M8 X 50 (10.000 per pack) 2
31 HEX.SCREW M8X1.25X90 DIN.931 8.8 YIC 2
32 Flat Washer 8 mm 8
33 Hex. Elastic Stop Nut M8 4
34 COVER 8
35 CARBIDE KIT 0
36 NUT-FLANGE ELASTIC M10X1.5 (1=10PCS) (10.000 per pack) 6
37 RUBBER STOPPER 2
38 PLATE SUPPORT 2
39 COUSSINET *BUSHING 4
40 SCREW-HEX. 4
41 WASHERS A43 DIN9021-ST M ZNE(1=10PCS) (10.000 per pack) 4
42 SKI LINER 2
43 GREASE NIPPLE M6 (1=10PCS) (10.000 per pack) 2
