| № | Наименование | Примечание | Кол-во |
|---|---|---|---|

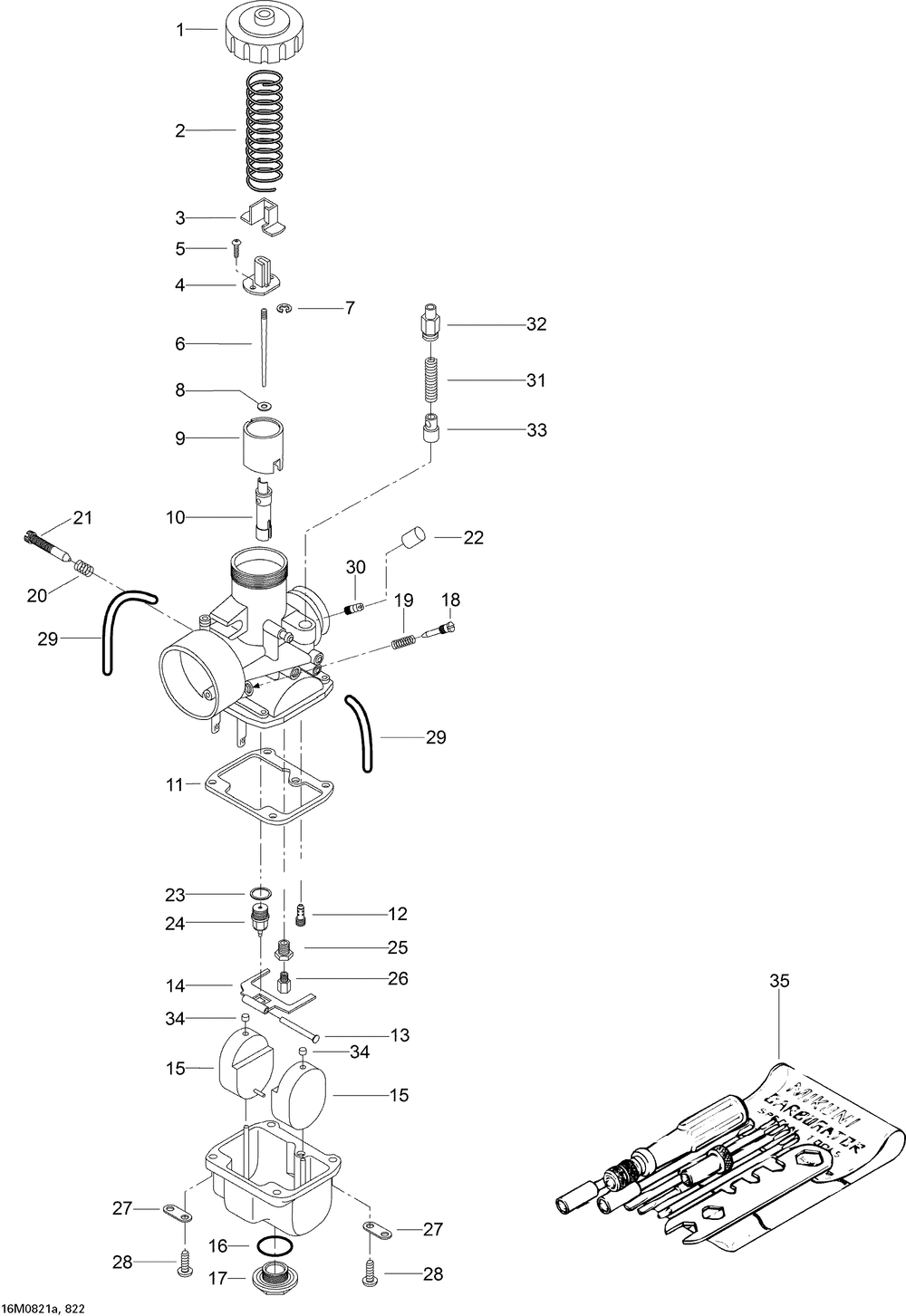

| CARB.VM-38 *CARB-VM-38 SUV 600 Includes 1 to 34 | 2 | ||
| 1 | COUVERCLE CARB.*TOP-MIX.CHAMB. SUV 600 | 1 | |
| 2 | SPRING | 1 | |
| 3 | COVER | 1 | |
| 4 | CONNECTOR | 1 | |
| 5 | SCREW WITH WASHER (5.000 per pack) | 2 | |
| 6 | NEEDLE JET J8-6DGL24 SUV 600 | 1 | |
| 7 | E-RING (2.000 per pack) | 1 | |
| 8 | JOINT TAMPON *PACKING (5.000 per pack) | 1 | |
| 9 | PISTON VALVE 2.5 | 1 | |
| 10 | NEEDLE JET NJ 480 P-9 SUV 600 | 1 | |
| 11 | JOINT *GASKET SUV 600 (5.000 per pack) | 1 | |
| 12 | PILOT JET PJ40 (5.000 per pack) | 1 | |
| 13 | LEVER PIN (5.000 per pack) | 1 | |
| 14 | FLOAT LEVER SUV 600 | 1 | |
| 15 | FLOAT SUV 600 | 2 | |
| 16 | RONDELLE *WASHER SUV 600 (5.000 per pack) | 1 | |
| 17 | DRAIN PLUG SCREW SUV 600 | 1 | |
| 18 | AIR SCREW | 1 | |
| 19 | SPRING | 1 | |
| 20 | SPRING (5.000 per pack) | 1 | |
| 21 | IDLE SPEED SCREW | 1 | |
| 22 | CAP | 1 | |
| 23 | SEAT WASHER (5.000 per pack) | 1 | |
| 24 | NEEDLE VALVE 1.5 SUV 600 | 1 | |
| 25 | GUIDE SCREW | 1 | |
| 26 | MAIN JET 330 | 1 | |
| 27 | PLAQUE *PLATE | 2 | |
| 28 | SCREW WITH LOCK WASHER (5.000 per pack) | 4 | |
| 29 | AIR VENT TUBE | 2 | |
| 30 | NIPPLE | 1 | |
| 31 | SPRING (2.000 per pack) | 1 | |
| 32 | GUIDE HOLDER | 1 | |
| 33 | PLUNGER ASS Y | 1 | |
| 34 | CAP (5.000 per pack) | 2 | |
| 35 | TOOL KIT | 1 |
