SKI-DOO Skandic WT 600 Skandic WT 600 01- Cylinder and Cylinder Head WT 600

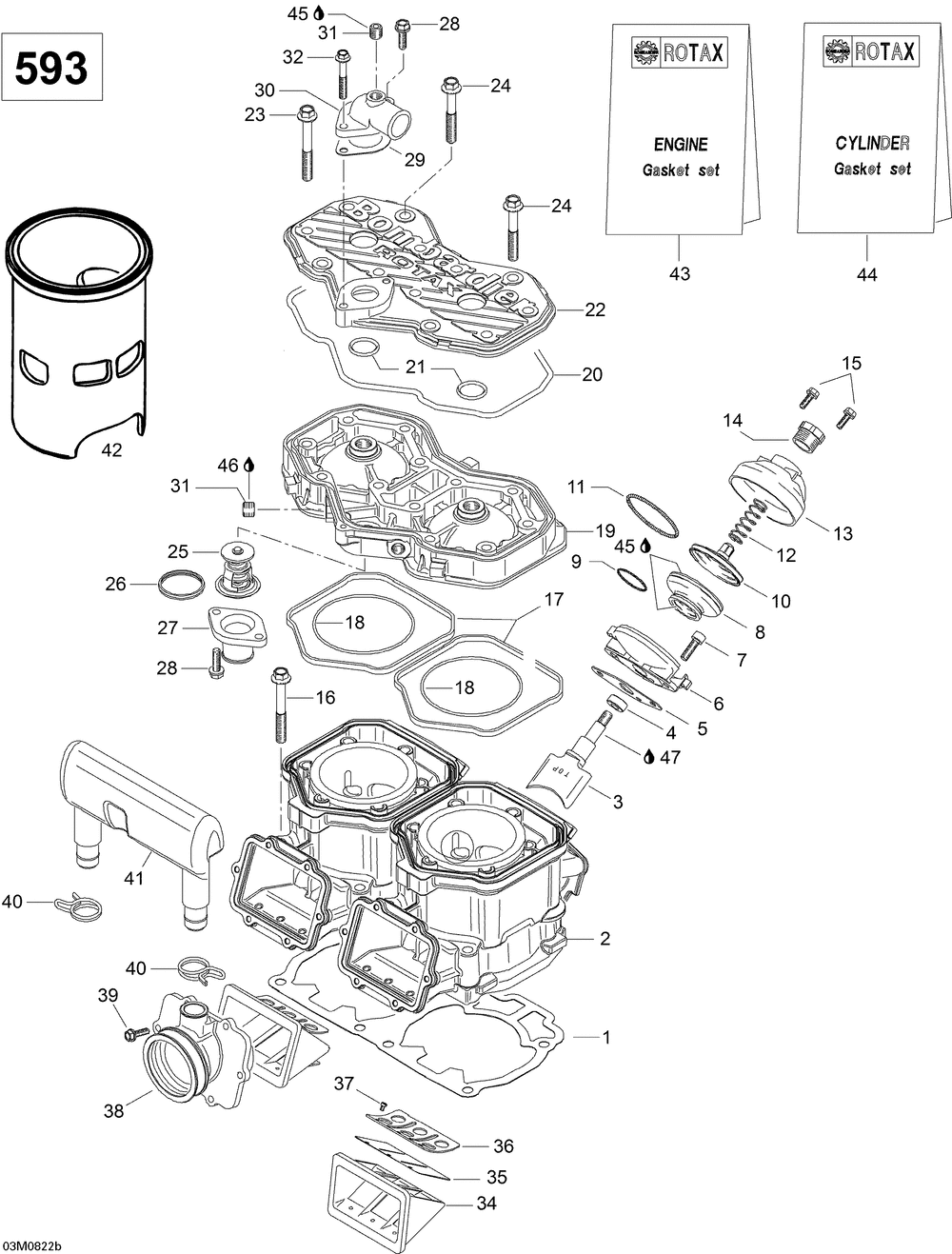

01- Cylinder and Cylinder Head WT 600
№ Наименование Примечание Кол-во
1 JOINT *GASKET 0.7MM 1
1 JOINT *GASKET 0.6MM 1
1 JOINT 04MM *GASKET 04MM 1
1 JOINT *GASKET 0.8MM 1
1 JOINT *GASKET 0.5MM 1
2 CYLINDER WITH SLEEVE 1
3 EXHAUST VALVE 2
4 OIL SEAL (5.000 per pack) 2
5 JOINT *GASKET (5.000 per pack) 2
6 VALVE HOUSING 2
7 SOCKET HEAD SCREW M6 X 20 (10.000 per pack) 4
8 EXHAUST BELLOWS 2
9 HOSE SPRING 2
10 EXHAUST VALVE 2
11 HOSE SPRING 2
12 SPRING (5.000 per pack) 2
13 VALVE COVER 2
14 ADJUSTER SCREW 2
15 SCREW-TAPPING M5 X 20 (10.000 per pack) 4
16 HEX. SCREW M8 X 68.5 (5.000 per pack) 8
17 RUBBER RING 2
18 O-RING 2
19 CYLINDER HEAD 1
20 O-RING 1
21 O-Ring 2
22 CYLINDER HEAD COVER 1
23 HEX. COLLAR SCREW M8 X 65 10
24 HEX. SCREW M8 X 56.5 2
25 THERMOSTAT 1
26 SEALING RING 1
27 BENT OUTLET SOCKET 1
28 SCREW-TAPPING 3
29 JOINT *GASKET 1
30 BENT OUTLET SOCKET 1
31 PLUG SCREW 1
32 HEX. COLLAR SCREW M6 X 40 (5.000 per pack) 1
33 REED VALVE ASS Y Includes 23 to 27 2
35 REED PEDAL 2
36 REED PEDAL STOP 2
37 PHILLIPS SCREW M3 X 5 (10.000 per pack) 6
38 CARBURETOR SOCKET 2
39 TAPPING SCREW M5 X 16 (10.000 per pack) 12
40 CLAMP 2
41 INTAKE RESONATOR 1
43 ENS.JOINT ETAN.*ENGINE GASKET KIT 1
44 ENS.JOINT ETANC*SET-GASKET CYLINDER 1
45 DOW CORNING 111*DOW CORNING 111 0
46 LOCTITE 243 10 ML 0
47 MOLYKOTE G-N 50GR. 0
