SKI-DOO Summit Highmark & Highmark X 1000 SDI Summit Highmark & Highmark X 1000 SDI 09- Frame and Components

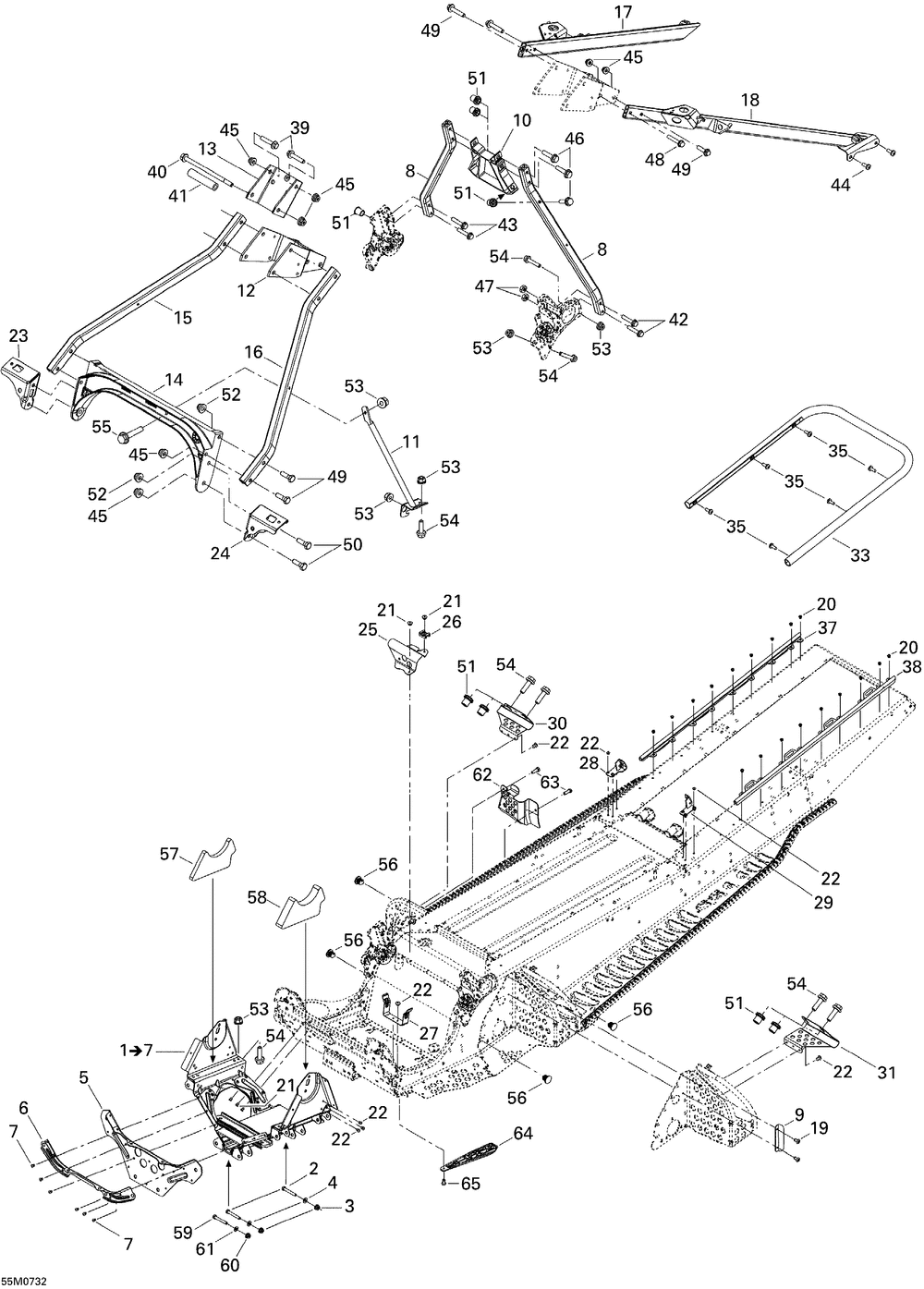

09- Frame and Components
№ Наименование Примечание Кол-во
1 FRONT MEMBER ASS Y Includes 1 to 7 1
2 HEX. SCREW M8 X 55 (10.000 per pack) 2
3 Hex. Flanged Elastic Nut M8 2
4 Flat Washer 8 mm 2
5 FRONT PLATE 1
6 FRONT PLATE REINFORCEMENT 1
7 AVEX RIVET (50.000 per pack) 6
8 HANDLE SUPPORT 2
9 CABLE PROTECTOR 1
10 HANDLE SUPPORT REINFORCEMENT 1
11 BRACE BLACK 1
12 ATTACHMENT BRACKET 1
13 STEERING COLUMN SUPPORT 1
14 UPPER CROSS MEMBER 1
15 RH FRONT BRACE 1
16 LH FRONT BRACE 1
17 RH MEMBER 1
18 LH MEMBER 1
19 Pop Rivet 3/16" 2
20 Pop Rivet 3/16" 20
22 AVEX RIVET (50.000 per pack) 18
23 RH SHOCK BRACKET 1
24 LH SHOCK BRACKET 1
25 HOSE SUPPORT 1
26 CLIP (5.000 per pack) 1
27 BELT GUARD BRACKET 1
28 RH BRACKET BLACK 1
29 LH BRACKET BLACK 1
30 RH TOE HOLD 1
31 LH TOE HOLD 1
33 REAR BUMPER 151" Track 1
33 REAR BUMPER 162" Track 1
35 Hex. Screw M8 X 20 6
37 RH WIRE PROTECTOR 151" Track 1
37 RH WIRE PROTECTOR 162" Track 1
38 LH WIRE PROTECTOR 151" Track 1
38 LH WIRE PROTECTOR 162" Track 1
39 Hex. Flanged Screw M8 X 40 2
40 HEX. FLANGED SCREW M8 X 140 (2.000 per pack) 1
41 SPACER 1
42 FLANGED HEX. SCREW M6 X 30 (5.000 per pack) 2
43 Hex. Flanged Screw M6 X 30, Scotch Grip 2
44 TORX SCREW M8 X 13 (10.000 per pack) 4
47 Elastic Stop Nut M6 2
48 HEX. FLANGED SCREW M8 X 50 Not Shown (10.000 per pack) 1
49 HEX. FLANGED SCREW M8 X 35 (10.000 per pack) 7
50 HEX. SCREW M8 X 25 (10.000 per pack) 4
51 INSERT 11
52 Hex. Elastic Stop Nut M8 4
53 Hex. Flanged Elastic Nut M6 7
54 Hex. Flanged Screw M6 X 20 9
55 Hex. Flanged Screw M6 X 35 1
56 Fastener Panel 4
57 RH FRONT FOAM 1
58 LH FRONT FOAM 1
62 FOOTREST EXTENSION 1
63 Hex. Flanged Screw M6 X 16 2
64 FRONT PROTECTOR 2
65 Pop Rivet 3/16" 2
