SKI-DOO Freestyle Back Country 550F Freestyle Back Country 550F 05- Pulley System

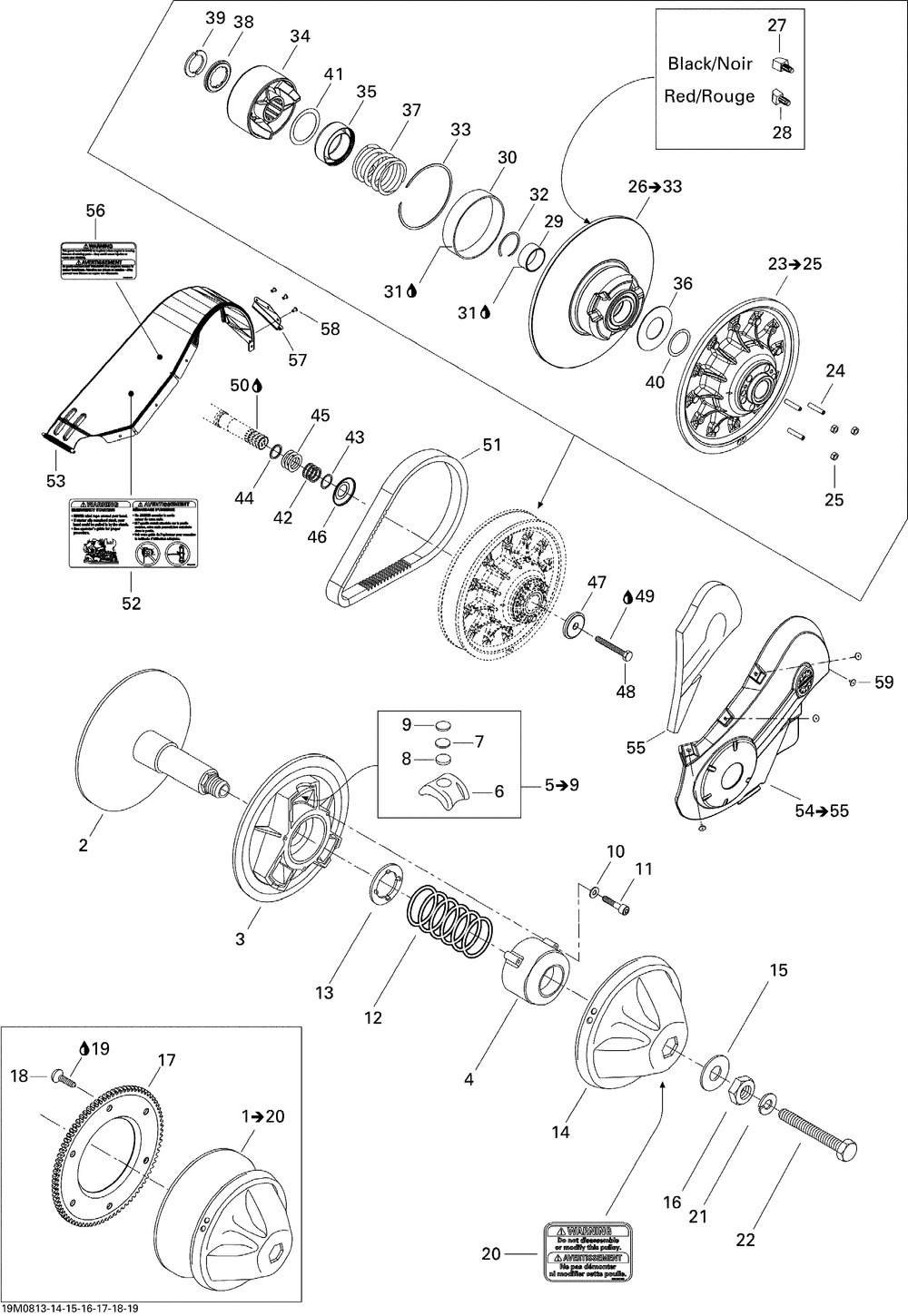

05- Pulley System
№ Наименование Примечание Кол-во
2 INNER FLANGE 1
3 SLIDING FLANGE 1
4 SPRING COVER 1
5 BLOC *UNIT Includes 5 to 8 3
5 BLOC CENTRIFUGE*BLOCK-CENTRIFU 3
7 PESEE CALIBRAT.*WEIGH-ADJUST. (3.000 per pack) 1
8 PESEE CALIBRAT.*WEIGH-ADJUST. (10.000 per pack) 3
9 CAPSULE (3.000 per pack) 1
10 RONDELLE *WASHER (10.000 per pack) 3
11 SOCKET HEAD SCREW M6 X 35 (3.000 per pack) 3
12 SPRING VIOLET-YELLOW-GREEN 1
13 SPRING SEAT 1
14 CAP 1
15 RONDELLE *WASHER 1
16 ECROU *NUT 1
17 RING GEAR 1
18 HEX. SCREW M8 X 16 (10.000 per pack) 6
19 LOCTITE 271 10 ML 0
20 SECURITY LABEL 1
21 WASHER-LOCK HELICAL SPRING (10.000 per pack) 1
22 BOULON *BOLT-PULLEY DRIVE 1
23 FIXED FLANGED ASS Y 1
24 SCREW SOCKET SET DIN.913 S.GRIP (3.000 per pack) 3
25 Hex. Flanged Nut M6 3
26 SLIDING FLANGE ASS Y 1
27 REAR CAM SLIDER SHOE RED (10.000 per pack) 3
28 FRONT CAM SLIDER SHOE BLACK (10.000 per pack) 3
29 COUSSINET *COUSSINET 1
30 COUSSINET *COUSSINET 1
31 LOCTITE BLACK MAX 3 ML 0
32 CIRCLIP (5.000 per pack) 1
33 CIRCLIP 1
34 CAM ASS Y 1
35 GUARD 1
36 STOPPER WASHER 1
37 SPRING 1
38 SPACER 1
39 HALF KEY 2
40 SHIM (10.000 per pack) 1
41 SWIVEL ABUTMENT 1
42 SPACER (Adjustment Part Use If Needed) 3
43 SPACER (Adjustment Part Use If Needed) (5.000 per pack) 1
45 SHIM (Adjustment Part Use If Needed) (5.000 per pack) 3
46 PROTECTOR 1
47 STRENGTH WASHER 1
48 HEX. SCREW M8 X 75 (10.000 per pack) 1
49 LOCTITE 243 10 ML 0
50 LOCTITE 767 ANTISEIZE LUBRICANT 8 OZ 0
51 Ремень приводной 1
52 EMERGENCY STARTING LABEL 1
53 BELT GUARD 1
54 SIDE PROTECTOR ASS Y 1
55 FOAM 1
56 WARNING DECAL SECURITY BELT GUARD 1
57 BELT GUARD BRACKET 1
58 AVEX RIVET (50.000 per pack) 3
59 Black Pop Rivet 3/16" 4
