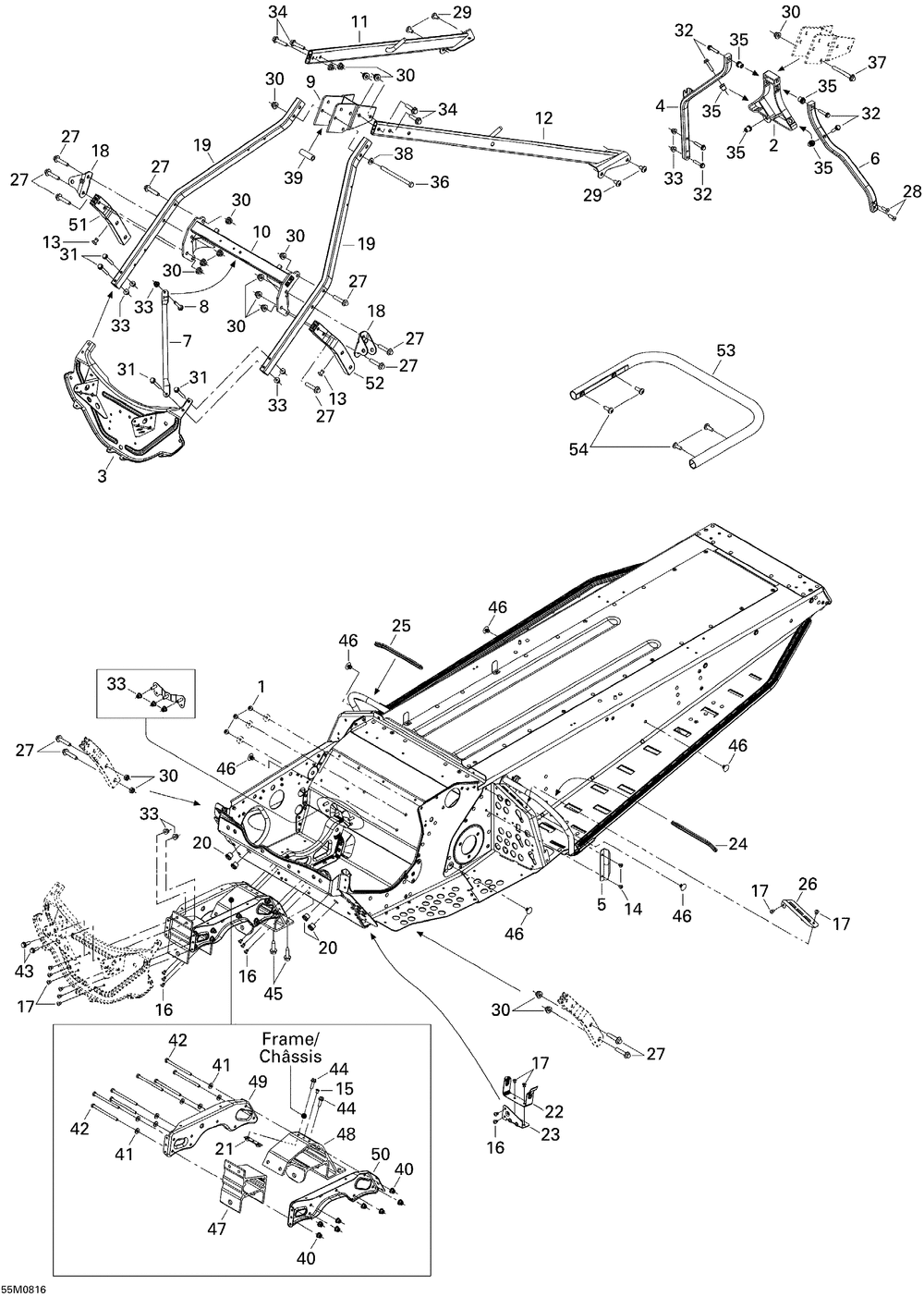

09- Frame and Components

№	Наименование	Кол-во
1	HEMLOCK RIVET 6.5 MM (5.000 per pack)	3
2	CENTER STIFFENER	1
3	FRONT PLATE	1
4	RH HANDLE SUPPORT	1
5	CABLE PROTECTOR	1
6	LH HANDLE SUPPORT	1
7	CROISILLON *BRACE	1
8	Hex. Flanged Screw M6 X 35	1
9	BRACKET BLOCK	1
10	UPPER CROSS MEMBER	1
11	RH MEMBER	1
12	LH MEMBER	1
13	HEMLOCK RIVET 6.5 MM (5.000 per pack)	2
14	Pop Rivet 3/16"	2
15	Pop Rivet 3/16"	1
16	AVEX RIVET (50.000 per pack)	8
17	AVEX RIVET (50.000 per pack)	10
18	ATTACHE AMORT. *BRKT-SHOCK	2
19	UPPER TUBE	2
20	INSERT	4
21	HOLDER PLATE	1
22	GUARD BELT BRACKET BLACK	1
23	GUARD BELT SUPPORT	1
24	PROTECTION TRIM	0
26	PLATE BLACK	1
27	Hex. Flanged Screw M8 X 40	12
28	SOCKET HEAD SCREW M6 X 20 SCOTCH GRIP (4.000 per pack)	2
29	TORX SCREW M8 X 13 (10.000 per pack)	4
30	Hex. Flanged Elastic Nut M8	18
31	FLANGED HEX. SCREW M6 X 45 (25.000 per pack)	4
32	FLANGED HEX. SCREW M6 X 30 (5.000 per pack)	6
33	Hex. Flanged Elastic Nut M6	12
34	HEX. FLANGED SCREW M8 X 35 (10.000 per pack)	4
35	INSERT	5
36	HEX. SCREW M8 X 110 (5.000 per pack)	1
37	HEX. FLANGED SCREW M8 X 70	1
38	Washer	1
39	HOUSING BUSHING	1
41	FLAT WASHER (10.000 per pack)	8
42	HEX. SCREW M6 X 90 (5.000 per pack)	8
43	Hex. Flanged Screw M6 X 20	2
44	Flanged Screw M6 X 20 Scotch Grip	2
45	Cone Screw M8 X 30	2
46	Fastener Panel	6
47	FRONT ATTACHMENT FRONT SUSPENSION	1
48	REAR ATTACHMENT FRONT SUSPENSION	1
49	RH LATERAL REINFORCEMENT	1
50	LH LATERAL REINFORCEMENT	1
51	RH VERTICAL TUBE	1
52	LH VERTICAL TUBE	1
53	REAR BUMPER (Legend Trail )	1
54	Hex. Screw M8 X 20	4
