SKI-DOO MX Z 380F MX Z 380F 07- Front Suspension And Ski MX Z 380F

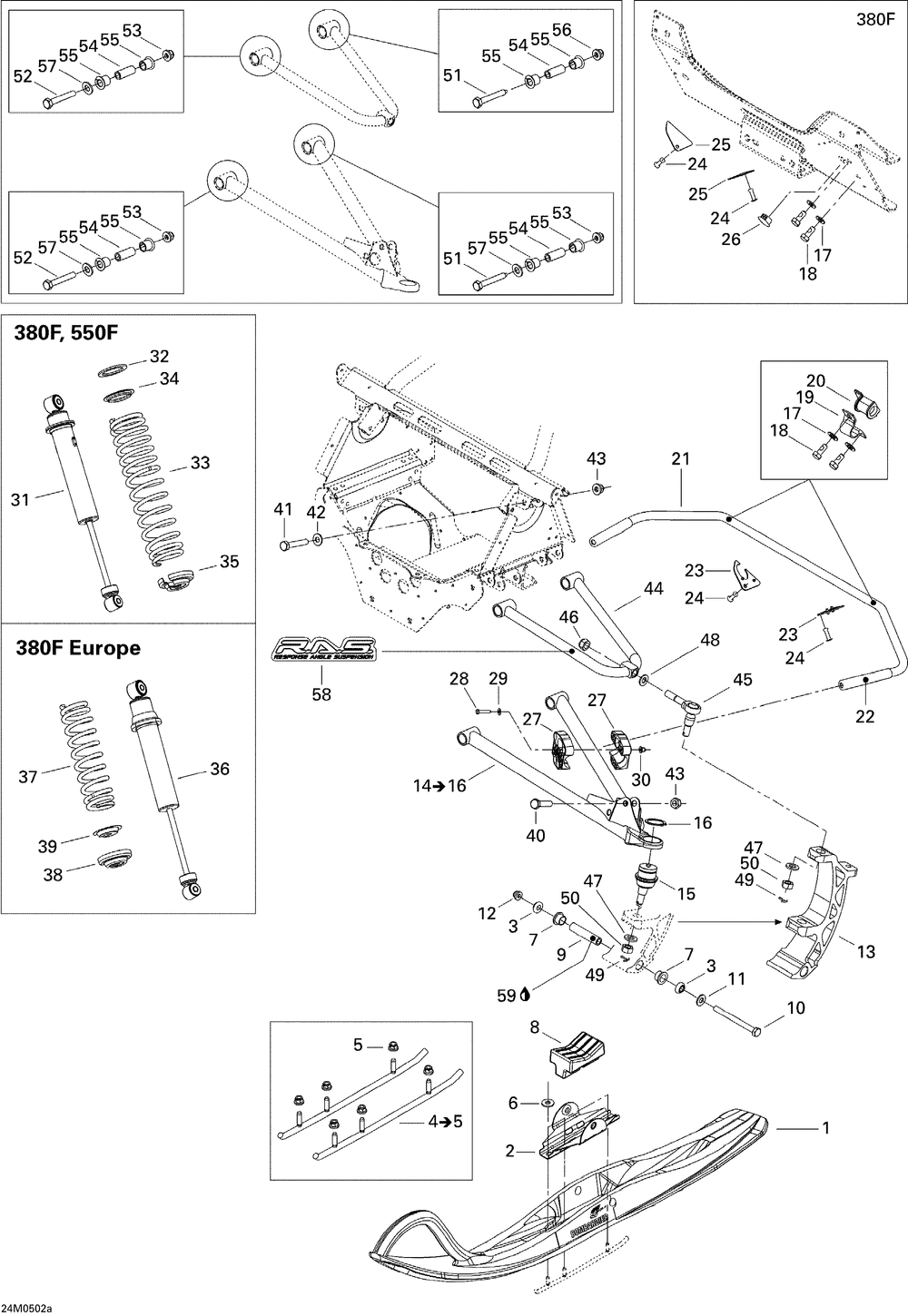

07- Front Suspension And Ski MX Z 380F
№ Наименование Примечание Кол-во
1 SKI *SKI 2
2 BRIDGE ASS Y 2
4 CARBIDE RUNNER KIT 2
5 Hex. Flanged Elastic Nut M8 6
6 Flat Washer 8 mm 2
7 BUSHING 4
8 SKI STOPPER 2
9 SPACER (2.000 per pack) 2
10 HEX. SCREW M10 X 130 (5.000 per pack) 2
11 Flat Washer 10 mm 2
12 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 2
13 SKI LEG 2
14 LH LOWER ARM ASS Y Includes 14 to 16 1
14 RH LOWER ARM ASS Y Includes 14 to 16 1
15 HEX. ELASTIC HEX. NUT M12 (6.000 per pack) 1
16 Circlip 1
17 Flat Washer 8 mm 2
18 HEX. SCREW WITH NYLON (10.000 per pack) 2
19 CLAMP (5.000 per pack) 2
20 LH BUSHING 1
20 RH BUSHING 1
21 STABILISATEUR P*STABILISATOR-P 1
22 STABILISATOR BOOT 2
23 PLUG 2
24 Black Pop Rivet 3/16" 2
25 ALUMINIUM PLUG 2
26 CAP (10.000 per pack) 1
27 RH SLIDER HALF 2
27 LH SLIDER HALF 2
28 HEX. SCREW M5 X 25 (10.000 per pack) 8
29 FLAT WASHER (10.000 per pack) 8
30 FLANGED ELASTIC NUT M5 (4.000 per pack) 8
31 FRONT SHOCK 1
32 RONDELLE *WASHER (10.000 per pack) 1
33 SPRING 1
34 Spring Guide 1
35 SPRING STOPPER 1
36 FRONT SHOCK 380F Europe 1
37 SPRING 380F Europe 1
39 CAP 1
40 HEX. SCREW M10 X 55 (5.000 per pack) 2
41 Hex. Screw M10 X 60 2
42 RONDELLE *WASHER (10.000 per pack) 2
44 UPPER ARM 2
45 UPPER BALL JOINT 2
46 HEX. FLANGED ELASTIC NUT M12 2
47 FLAT WASHER 12 MM (10.000 per pack) 4
48 RONDELLE *WASHER (25.000 per pack) 2
49 COTTER PIN (50.000 per pack) 4
50 HEX. CASTELLATED NUT M12 (5.000 per pack) 4
51 CONE SCREW M10 X 75 (5.000 per pack) 4
52 HEX. SCREW M10 X 75 4
53 ELASTIC FLANGED NUT M10 7
54 BUSHING 8
55 COUSSINET *BUSHING (20.000 per pack) 16
56 Elastic Flanged Nut M10 1
58 R.A.S. SUSPENSION DECAL 2
59 SUSPENSION GREASE 10 X 400 G 0
