SKI-DOO MX Z 380F MX Z 380F 07- Front Suspension (MX Z 380F)

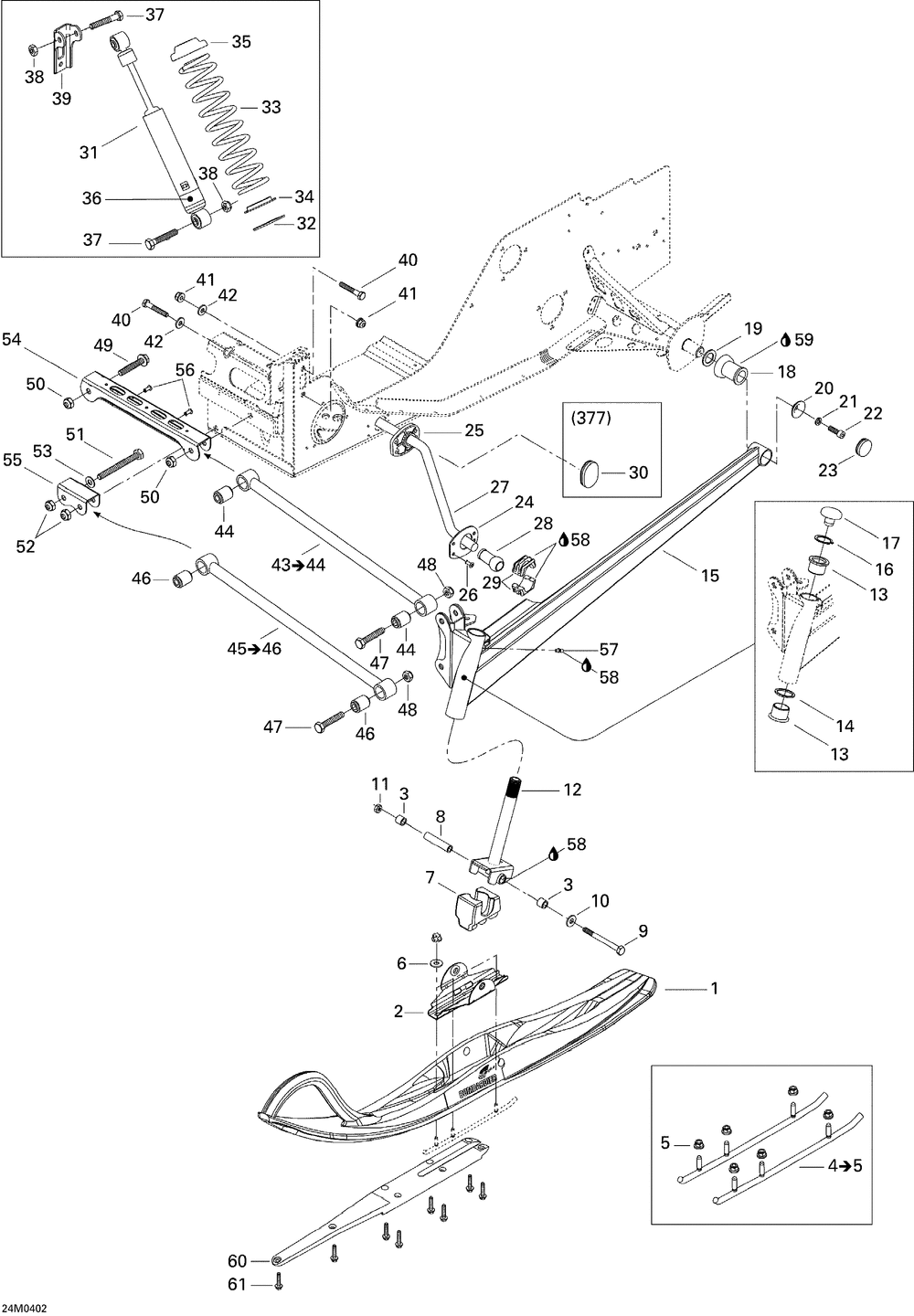

07- Front Suspension (MX Z 380F)
№ Наименование Примечание Кол-во
1 SKI *SKI 2
2 BRIDGE ASS Y 2
4 CARBIDE RUNNER KIT 1
5 Hex. Flanged Elastic Nut M8 6
6 Flat Washer 8 mm 2
7 SKI STOPPER 2
8 SPACER (2.000 per pack) 2
9 HEX. SCREW M10 X 130 (5.000 per pack) 2
10 Flat Washer 10 mm 2
11 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 2
12 SKI LEG 2
13 CUSHION 4
14 RONDELLE *WASHER (10.000 per pack) 2
15 LH ARM 1
15 RH ARM 1
16 CIRCLIP (10.000 per pack) 2
17 CAP 2
18 DAMPER 2
19 RONDELLE *WASHER (10.000 per pack) 2
20 CUP 2
21 WASHER-LOCK DIN.127B (50.000 per pack) 2
22 SOCKET HEAD SCREW M8 X 25 SCOTCH GRIP (4.000 per pack) 2
30 Nylon Cap 2
31 FRONT SHOCK 2
32 RONDELLE *WASHER (10.000 per pack) 2
33 SPRING 2
34 Spring Guide 2
35 SPRING STOPPER 2
37 HEX. SCREW M10 X 55 (5.000 per pack) 4
38 ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 4
39 RH SHOCK BRACKET 1
39 LH SHOCK BRACKET 1
40 HEX. SCREW M8 X 50 (10.000 per pack) 4
42 Washer 4
43 UPPER ARM ASStahos_Y Includes 41 To 42 2
44 COUSSINET *BUSHING 4
45 LOWER ARM ASStahos_Y Includes 43 To 44 2
49 HEX. FLANGED SCREW M10 X 55 (5.000 per pack) 2
51 HEX. SCREW M10 X 95 (5.000 per pack) 2
54 UPPER ARM BRACKET 1
55 LOWER ARM BRACKET 1
56 Pop Rivet 3/16" 2
57 GREASE FITTING (10.000 per pack) 2
58 SUSPENSION GREASE 10 X 400 G 0
59 GRAISSE *GREASE 0
