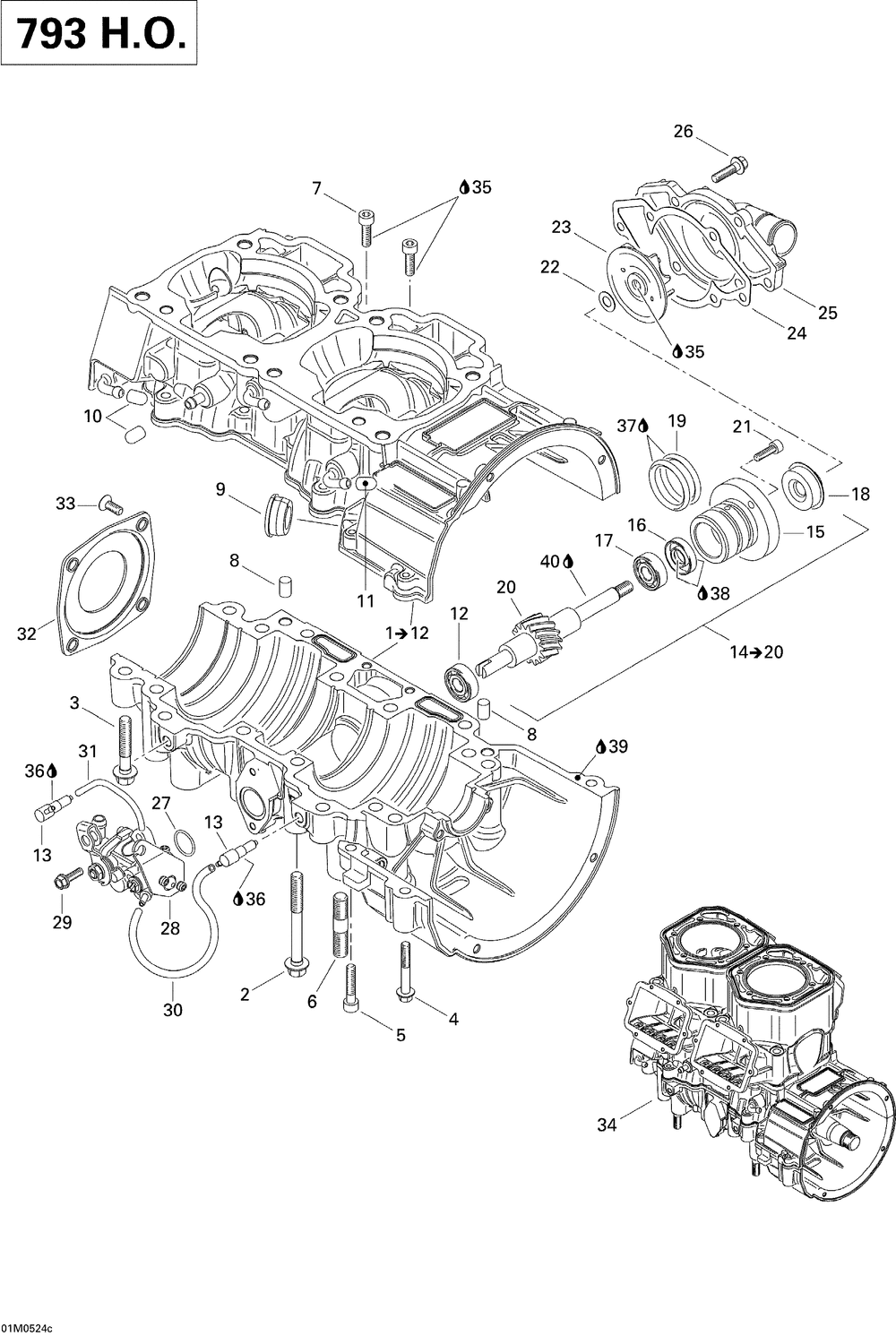

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CRANKCASE ASS Y Includes 1 to 12 | 1 | |
| 2 | HEX. COLLAR SCREW M8 X 75 | 10 | |
| 3 | HEX. COLLAR SCREW M8 X 45 | 6 | |
| 4 | HEX. COLLAR SCREW M6 X 45 (5.000 per pack) | 2 | |
| 5 | Socket Head Screw M6 X 30 | 1 | |
| 6 | STUD M10 X 29 | 4 | |
| 7 | SOCKET HEAD SCREW M6 X 22 (10.000 per pack) | 2 | |
| 8 | Center Pin 8 X 12 | 2 | |
| 9 | CABLE GROMMET | 1 | |
| 10 | Cap | 2 | |
| 11 | CAP | 1 | |
| 12 | BALL BEARING | 1 | |
| 13 | CHECK VALVE | 2 | |
| 14 | WATER PUMP/OIL PUMP ASS Y Includes 14 to 20 | 1 | |
| 16 | OIL SEAL | 1 | |
| 18 | ROTARY SEAL | 1 | |
| 19 | O-RING | 2 | |
| 21 | SOCKET HEAD SCREW M5 X 16 | 2 | |
| 22 | RONDELLE *WASHER | 1 | |
| 23 | WATER IMPELLER | 1 | |
| 24 | JOINT *GASKET | 1 | |
| 25 | WATER PUMP HOUSING | 1 | |
| 26 | HEX. SCREW M6 X 25 | 6 | |
| 27 | O-RING (10.000 per pack) | 1 | |
| 28 | OIL PUMP ASStahos_Y | 1 | |
| 29 | TAPPING SCREW M5 X 16 (10.000 per pack) | 2 | |
| 30 | OIL HOSE (5.000 per pack) | 1 | |
| 32 | COVER | 1 | |
| 33 | SCREW M6 X 20 | 4 | |
| 34 | REBUILD-SHORT-BLOCK PACKAGE | 1 | |
| 35 | LOCTITE 243 10 ML | 0 | |
| 36 | LOCTITE 648 10 ML | 0 | |
| 37 | DOW CORNING 111*DOW CORNING 111 | 0 | |
| 38 | PETAMO GREASE GHY133N 400 G | 0 | |
| 39 | LOCTITE 5910 300 ML | 0 | |
| 40 | HUILE 2T 12X1 *OIL 2T 12X1 MINERAL (12.000 per pack) | 0 |
