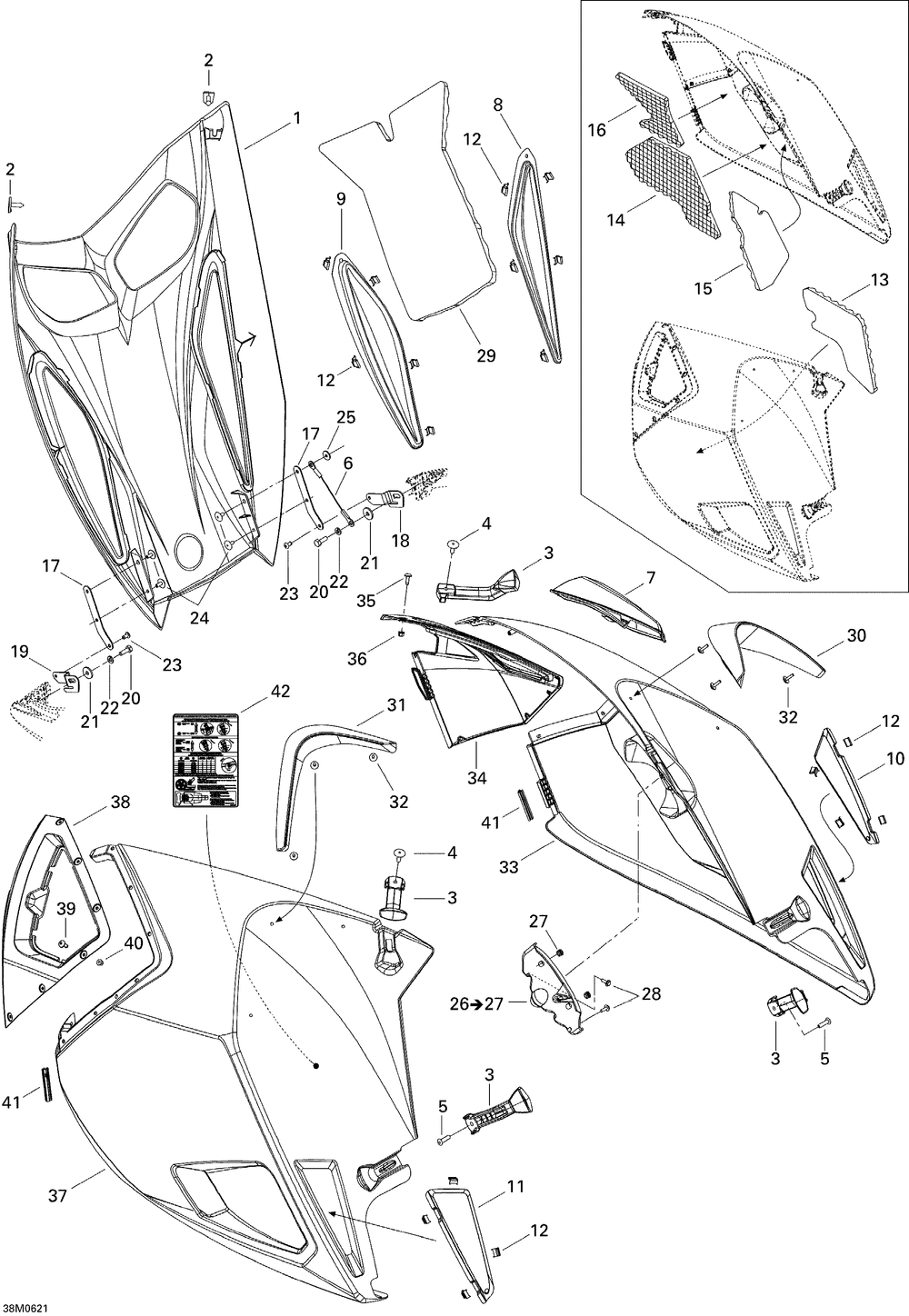

SKI-DOO Summit 1000 SDI, Highmark & Highmark X Summit 1000 SDI, Highmark & Highmark X 09- Hood
09- Hood
№ Наименование Примечание Кол-во
1 HOOD BLACK 1
1 HOOD VOLTAGE BLUE METALLIC B-225 Blue/Black 1
1 HOOD VIPER RED B-206 Red-Black / HM 1
1 HOOD ALLOY GREY B-206 Grey/Black 1
2 TIGE *PIN (10.000 per pack) 2
3 PANEL LATCH 4
4 POP RIVET 3/16tahos_ (25.000 per pack) 2
5 POP RIVET 3/16tahos_ (25.000 per pack) 2
6 RETAINER CABLE 1
7 MUFFLER GRILL X 1
8 RH HOOD GRILL 1
9 LH HOOD GRILL 1
10 RH PANEL GRILL 1
11 LH PANEL GRILL 1
12 CLIP (20.000 per pack) 18
13 LH PANEL FOAM 1
14 RH PANEL FOAM 1
15 RH PANEL FOAM 1
16 RH PANEL FOAM 1
17 RH HINGE ASS Y 2
18 RH HINGE ASS Y 1
19 LH HINGE ASS Y 1
20 HEX. SCREW M6 X 18 (10.000 per pack) 2
21 Flat Washer 2
22 WASHER-LOCK BLACK DIN.127B (10.000 per pack) 2
23 AVEX RIVET (50.000 per pack) 2
24 Pop Rivet 3/16" 4
25 FLAT WASHER (10.000 per pack) 1
26 RH CONSOLE 1
27 BLACK CAP (5.000 per pack) 2
28 HEX. FLANGED SCREW K50 X 16 (5.000 per pack) 2
29 HOOD FOAM 1
30 RH AIR DEFLECTOR KNEES 1
30 RH AIR DEFLECTOR KNEES X 1
31 LH AIR DEFLECTOR KNEES 1
32 SCREW PLASTITE TYPE K-40 M4 X 16 (2.000 per pack) 6
33 RH PANEL ASS Y Includes 33 to 36 1
33 RH PANEL ASS Y Grey-Red / HMX 1
34 RH PANNEL HUB 1
35 TORX SCREW M5 7
36 NYLON SCREW 10/32" (7.000 per pack) 7
37 LH PANEL ASS Y Includes 37 to 40 1
37 LH PANEL ASS Y Grey-Red / HMX 1
38 ENJ. PAN.GAU. *HUB.SIDE PAN. 1
38 ENJ. PAN.GAU. *HUB.SIDE PAN. X 1
41 HINGE LOCK 2
42 DECAL SUSPENSION ADJUSTMENT 1
