SKI-DOO Summit 800 HO, Adrenaline & X Summit 800 HO, Adrenaline & X 09- Frame and Components 800HO

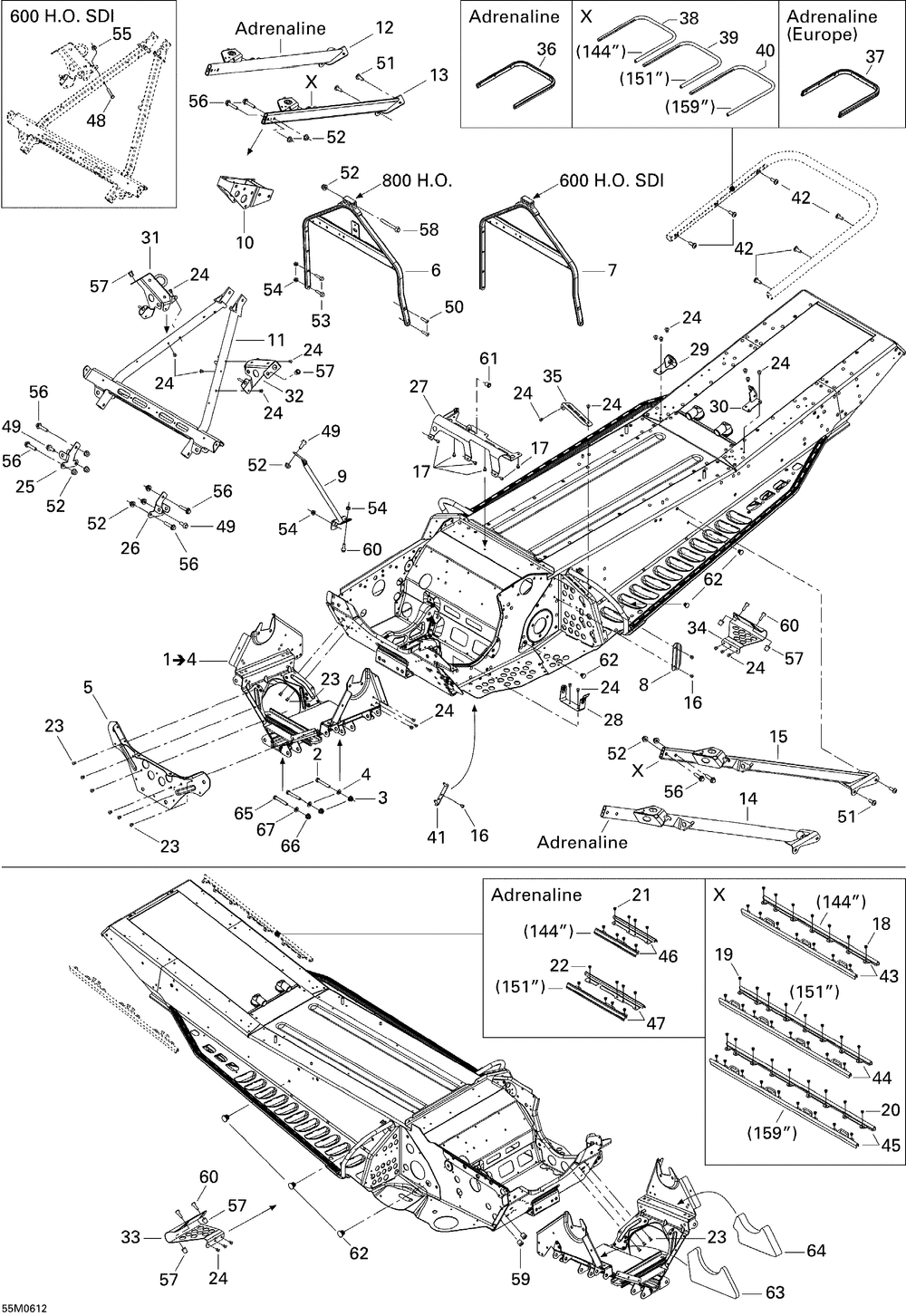

09- Frame and Components 800HO
№ Наименование Примечание Кол-во
1 CROSS MEMBER 1
2 HEX. SCREW M8 X 55 (10.000 per pack) 2
3 Hex. Flanged Elastic Nut M8 2
4 Flat Washer 8 mm 2
5 FRONT PLATE 1
6 HANDLE SUPPORT 1
8 CABLE PROTECTOR 1
9 BRACE BLACK 1
10 BRACKET BLOCK 1
11 UPPER CROSS MEMBER 1
12 RH MEMBER 1
13 RH MEMBER 1
14 LH MEMBER 1
15 LH MEMBER 1
16 Pop Rivet 3/16" 3
17 Pop Rivet 3/16" 6
23 AVEX RIVET (50.000 per pack) 11
24 AVEX RIVET (50.000 per pack) 24
25 RH SHOCK BRACKET 1
26 LH SHOCK BRACKET 1
27 INTAKE AIR ADMISSION SUPPORT 1
28 GUARD BELT BRACKET BLACK 1
29 RH BRACKET BLACK 1
30 LH BRACKET BLACK 1
31 RH CONSOLE SUPPORT 1
32 LH CONSOLE SUPPORT 1
33 RH TOE HOLD 1
34 LH TOE HOLD 1
35 PLATE BLACK 1
36 REAR BUMPER 1
37 REAR BUMPER Europe 1
38 REAR BUMPER Renegade X C/U 1
40 REAR BUMPER 151" Track 1
41 TRUNK BRACKET BLACK 1
42 Hex. Screw M8 X 20 6
43 RH WIRE PROTECTOR Track 144" 1
43 LH WIRE PROTECTOR Track 144" 1
44 RH WIRE PROTECTOR Track 151" 1
44 LH WIRE PROTECTOR Track 151" 1
45 RH WIRE PROTECTOR 151" Track 1
45 LH WIRE PROTECTOR 151" Track 1
46 RH WIRE PROTECTOR Adrenaline with Track 144" 1
46 LH WIRE PROTECTOR Adrenaline with Track 144" 1
47 LH WIRE PROTECTOR Adrenaline with Track 151" 1
47 RH WIRE PROTECTOR Adrenaline with Track 151" 1
49 HEX. FLANGED SCREW M8 X 20 (10.000 per pack) 3
50 SOCKET HEAD SCREW M6 X 20 SCOTCH GRIP (4.000 per pack) 2
51 TORX SCREW M8 X 13 (10.000 per pack) 4
53 Hex. Flanged Screw M6 X 25 2
54 Hex. Flanged Elastic Nut M6 4
56 HEX. FLANGED SCREW M8 X 35 (10.000 per pack) 8
57 INSERT 6
58 HEX. FLANGED SCREW M8 X 70 1
59 INSERT 2
60 Hex. Flanged Screw M6 X 20 5
61 Insert 1
62 Fastener Panel 6
63 RH FRONT FOAM 1
64 LH FRONT FOAM 1
