SKI-DOO Summit 800 HO, Adrenaline & X Summit 800 HO, Adrenaline & X 05- Drive System 800HO

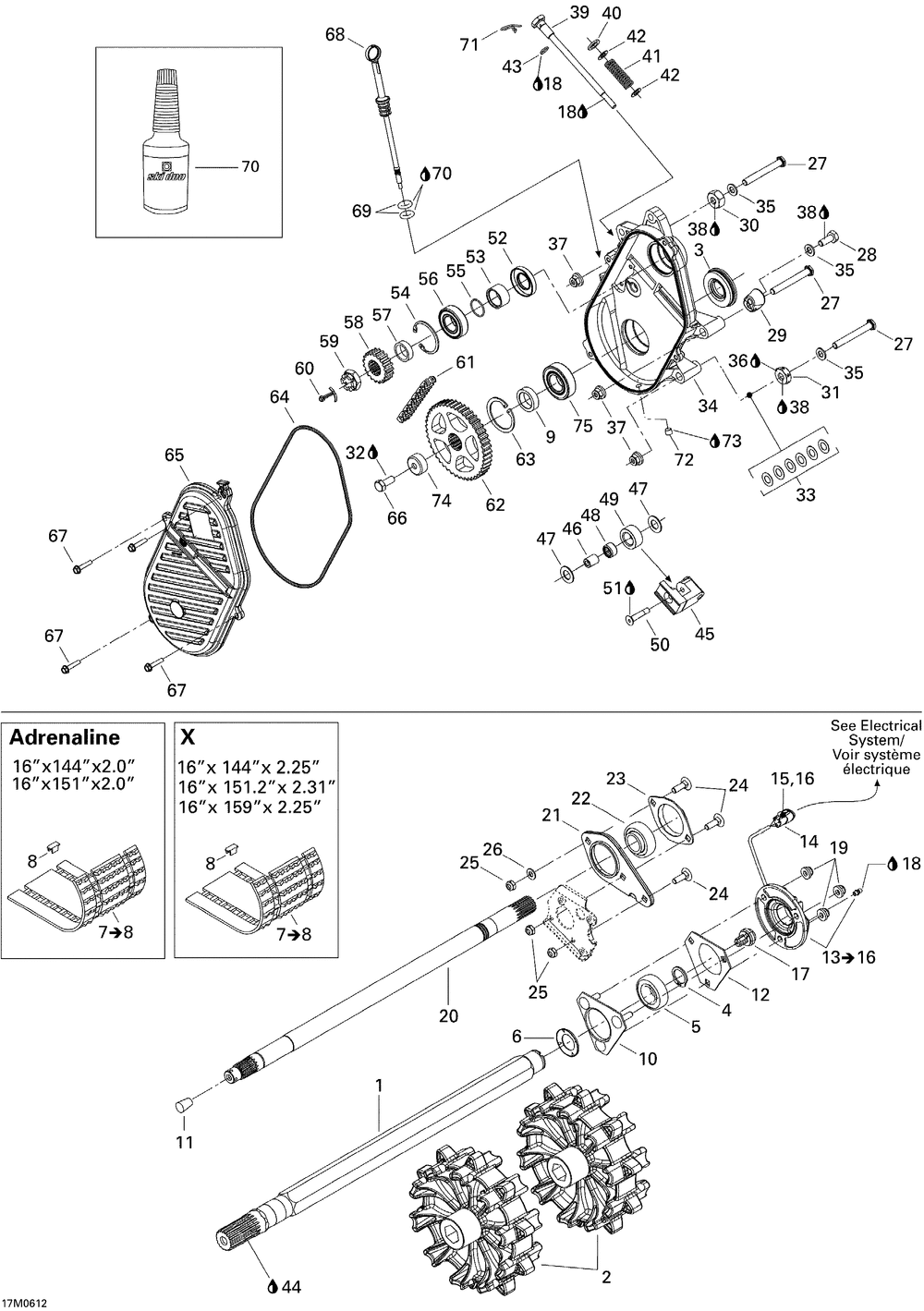

05- Drive System 800HO
№ Наименование Примечание Кол-во
1 DRIVE AXLE 1
2 ARBRE ENTR.ASS.*AXLE-DRIVE ASSY 2
3 OIL SEAL ASS Y 1
4 CIRCLIP (5.000 per pack) 1
5 BALL BEARING 1
6 BEARING PROTECTOR 1
7 TRACK 16" X 159" X 2.25" ASS Y X Includes 7 to 8 1
7 TRACK 16" X 144" X 2.25" ASS Y X Includes 7 to 8 1
7 TRACK 16" X 151" X 2.25. ASS Y (151'') / Includes 7 to 8 1
7 TRACK 16" X 151" X 2.25. ASS Y Europe / Includes 7 to 8 1
8 GUIDE *CLIP 0
9 SHIM 1
10 BEARING HOUSING 1
11 CORK 1
12 FLANGE 1
13 ROTATION SENSOR 1
14 FEMALE TERMINAL HOUSING 3 CIRCUITS 1
15 Female Terminal 0
16 FEMALE LOCK 3 CIRCUITS 1
17 MAGNETIC ADAPTOR 1
18 SUSPENSION GREASE 10 X 400 G 0
19 Hex. Flanged Elastic Nut M8 3
20 COUNTER SHAFT 1
20 COUNTER SHAFT 1
21 SPACER 1
22 ENS ROULEMENT BILLE*BALL BEARING KIT 1
23 FLANGE 1
24 CARRIAGE BOLT M8 X 25 (5.000 per pack) 3
25 Hex. Elastic Stop Nut M8 3
26 Flat Washer 8 mm 1
27 HEX. SCREW M10 X 80 (10.000 per pack) 3
28 HEX. SCREW M10 X 25 (10.000 per pack) 1
29 SPACER 1
30 SPACER 1
31 SPACER 1
32 LOCTITE 271 10 ML 0
33 RONDELLE *WASHER (5.000 per pack) 6
34 CHAINCASE 1
35 RONDELLE *WASHER (10.000 per pack) 3
36 LOCTITE 767 ANTISEIZE LUBRICANT 8 OZ 0
37 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 3
38 LOCTITE 243 10 ML 0
39 ADJUSTMENT SCREW 1
40 RONDELLE *WASHER (5.000 per pack) 1
41 SPRING 1
42 RONDELLE *WASHER (10.000 per pack) 2
43 O-RING (5.000 per pack) 1
45 CHAIN TENSIONER 1
46 SPACER 1
47 RONDELLE *WASHER (10.000 per pack) 2
48 NEEDLE BEARING 1
49 ROLLER 1
50 SCREW 1
52 OIL SEAL 1
53 SPACER 1
54 CIRCLIP (10.000 per pack) 1
55 O-RING (2.000 per pack) 1
56 BALL BEARING 1
57 SHIM 1
58 SPROCKET 19 TEETH Package Sport Egine 800 1
58 SPROCKET 21 TEETH Engine 600 ETEC Package XRS 1
59 HEX. CASTLE NUT M20 X 1.5 1
60 PIN COTTER (10.000 per pack) 1
61 DRIVE CHAIN 74 LINKS 1
62 45 TOOTH SPROCKET 1
63 CIRCLIP INTERIOR 1
64 O-RING 1
65 CHAINCASE COVER 1
67 HEX. FLANGED SCREW M6 X 30 (10.000 per pack) 4
68 FILLER CAP ASS Y 1
69 O-RING (10.000 per pack) 2
70 HUILE *XPS SYNTH OIL CHAINCASE OIL (16.000 per pack) 0
71 GOUP.SURETE *COTTER PIN (5.000 per pack) 1
72 Plug 1/8?-27 1
73 LOCTITE 592 PIPE SEALANT 50 ML Package T 0
74 CAP 1
75 BALL BEARING 1
