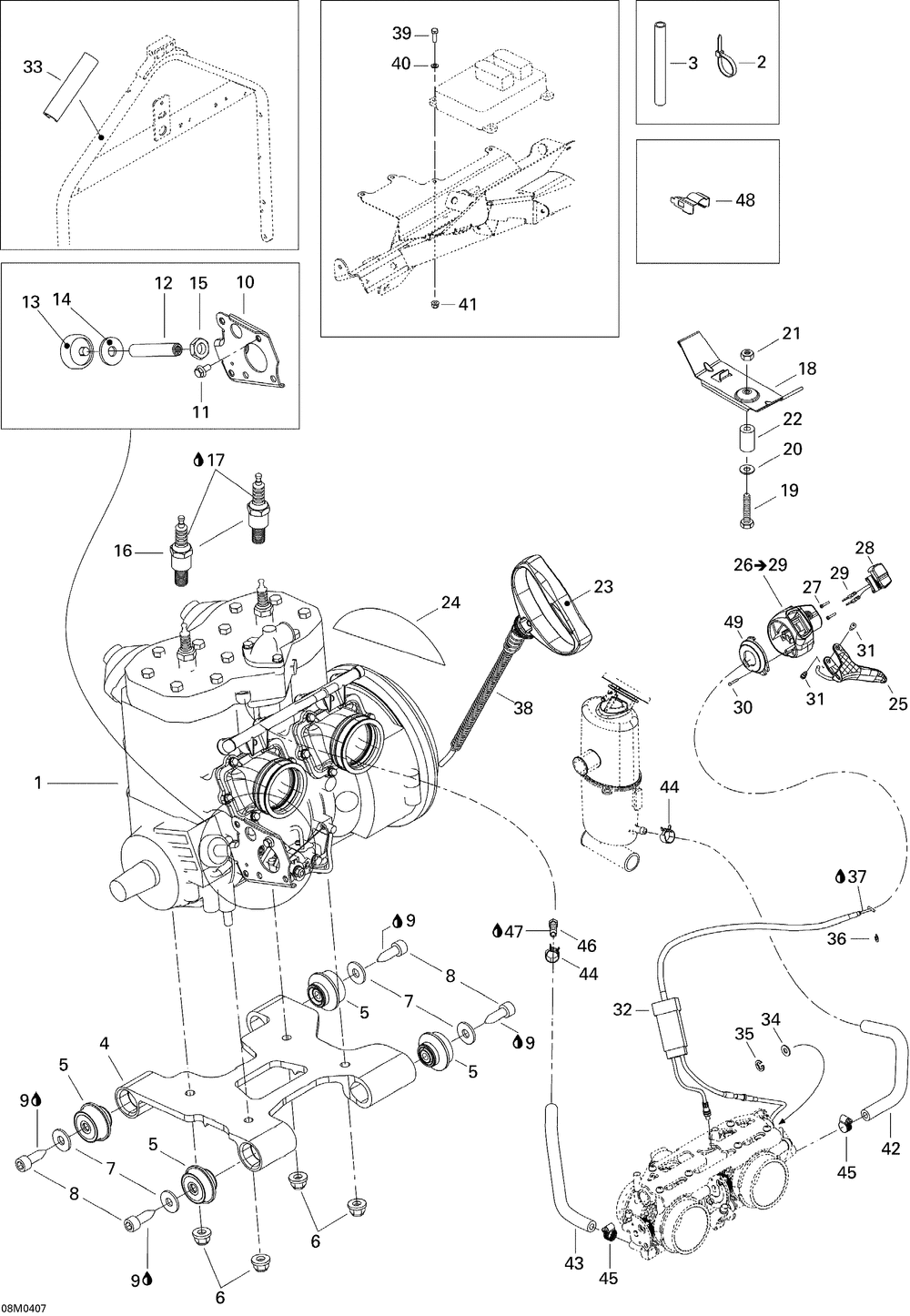

01- Engine Assembly And Support

№	Наименование	Кол-во
2	Tie-Rap 142 mm	1
3	Tubing 16 mm	0
4	ENGINE SUPPORT 600 H.O. & 800 H.O.	1
5	RUBBER MOUNT	4
6	HEX. FLANGED ELASTIC NUT M10 (10.000 per pack)	4
7	RONDELLE *WASHER (10.000 per pack)	4
8	SCREW M10 X 30	4
9	LOCTITE 222 10 CC	0
10	PLAQUE APP.PEIN*PLATE-PAINT	1
11	Hex. Flanged Screw M6 X 12, Scotch Grip	1
12	STOPPER SCREW	1
13	STOPPER	1
14	RONDELLE *WASHER (10.000 per pack)	1
15	HEX. JAM NUT M14 (5.000 per pack)	1
16	SPARK PLUG NGK BR9ECS 0.8 MM (10.000 per pack)	2
17	DIELECTRIC GREASE 150 G	0
18	COIL SUPPORT	1
19	HEX. SCREW M6 X 45 (10.000 per pack)	1
20	FLAT WASHER 6 MM (10.000 per pack)	1
21	Elastic Stop Nut M6	1
22	SPACER	1
23	STARTER GRIP	1
24	REFLECTIVE SHEET	1
25	THROTTLE HANDLE ASS Y	1
26	HOUSING THROTTLE ASS Y Includes items 3 to 6	1
27	PHILLIPS SCREW M2.9 X 16 (5.000 per pack)	2
28	HOUSING THROTTLE ASS Y	1
29	MALE TERMINAL (10.000 per pack)	0
31	FLANGED SCREW (10.000 per pack)	2
32	THROTTLE CABLE Adrenaline	1
33	PROTECTOR	1
34	FLAT WASHER 8 MM NYLON (5.000 per pack)	1
35	CIRCLIP (10.000 per pack)	1
36	CIRCLIP (10.000 per pack)	1
38	ROPE GUIDE	1
39	HEX. SCREW M5 X 16 (10.000 per pack)	2
40	FLAT WASHER M5 (10.000 per pack)	2
41	FLANGED ELASTIC NUT M5 (4.000 per pack)	2
42	FORMED HOSE	1
43	FORMED HOSE	1
44	UNIVERSAL SPRING CLAMP (10.000 per pack)	2
45	TRIDON GEAR CLAMP (10.000 per pack)	2
46	STRAIGHT FITTING No DPM	1
47	LOCTITE 592 PIPE SEALANT 50 ML Package T	0
48	HEATING ELEMENT BRACKET	1
49	COVER	1
