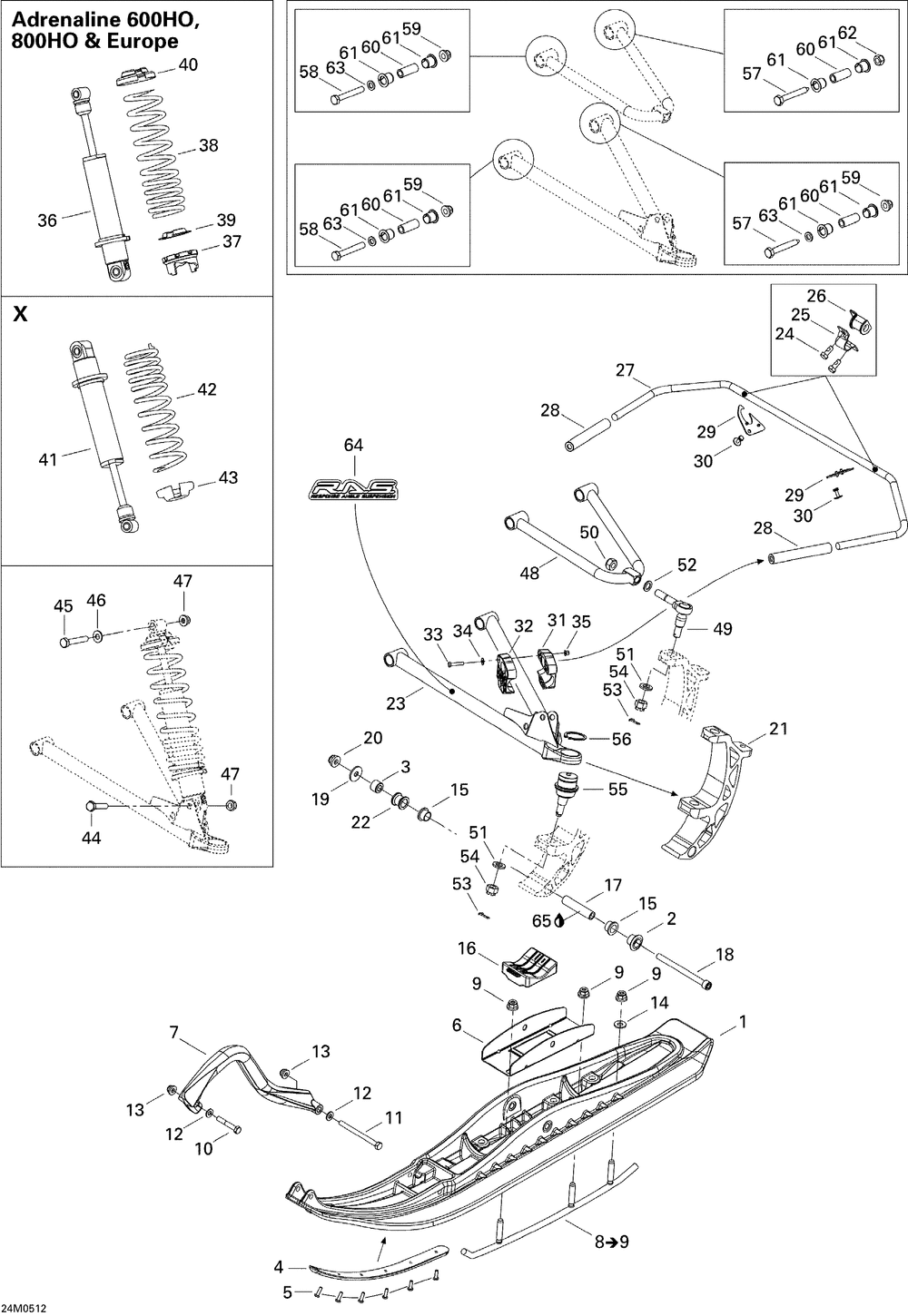

07- Front Suspension And Ski 600HO

SKI-DOO Summit 600 HO Summit 600 HO 07- Front Suspension And Ski 600HO

№	Наименование	Кол-во
1	LH SKI ASS Y Black B-160	1
1	RH SKI ASS Y Black B-160	1
2	CUSHION	2
3	CUSHION	2
4	PROACTIVE CONTROL	2
5	PHILLIPS SCREW tahos_10 X 7/8" (6.000 per pack)	12
6	SKI RENFORCEMENT	2
7	YELLOW HANDLE	2
7	BLACK HANDLE Model N	2
8	LISSE 6 *6 CARBIDE Includes 8 to 9	2
9	HEX. FLANGED ELASTIC NUT M10 (10.000 per pack)	6
10	HEX. SCREW M8 X 50 (10.000 per pack)	2
11	SCREW-HEX. M8 X 100 (10.000 per pack)	2
12	Flat Washer 8 mm	4
13	Hex. Flanged Elastic Nut M8	4
14	FLAT WASHER (10.000 per pack)	2
15	BUSHING	4
16	SKI STOPPER	2
17	SPACER (2.000 per pack)	2
18	SOCKET HEAD SCREW M10 X 125 (5.000 per pack)	2
19	FLAT WASHER 10 MM (5.000 per pack)	2
20	FLANGED NUT M10 (5.000 per pack)	2
21	SKI LEG	2
22	SPACER (2.000 per pack)	2
23	RH LOWER ARM ASS Y Highmark	1
23	LH LOWER ARM ASS Y Highmark	1
24	HEX. SCREW WITH NYLON (10.000 per pack)	4
25	CLAMP (5.000 per pack)	2
26	RH BUSHING	1
26	LH BUSHING	1
27	STABILISATEUR P*STABILISATOR-P	1
28	STABILISATOR BOOT	2
29	PLUG	2
30	Black Pop Rivet 3/16"	2
31	RH SLIDER HALF	2
32	LH SLIDER HALF	2
33	HEX. SCREW M5 X 25 (10.000 per pack)	8
34	FLAT WASHER (10.000 per pack)	8
35	FLANGED ELASTIC NUT M5 (4.000 per pack)	8
36	FRONT SHOCK	1
37	ADJUSTMENT CAM	1
38	SPRING	1
39	SPRING GUIDE	1
40	SPRING STOPPER	1
44	HEX. SCREW M10 X 55 (5.000 per pack)	2
45	Hex. Screw M10 X 60	2
46	RONDELLE *WASHER (10.000 per pack)	2
48	UPPER ARM	2
49	UPPER BALL JOINT	2
50	HEX. FLANGED ELASTIC NUT M12	2
51	FLAT WASHER 12 MM (10.000 per pack)	4
52	RONDELLE *WASHER (25.000 per pack)	2
53	COTTER PIN (50.000 per pack)	4
54	HEX. CASTELLATED NUT M12 (5.000 per pack)	4
55	HEX. ELASTIC HEX. NUT M12 (6.000 per pack)	2
56	Circlip	2
57	CONE SCREW M10 X 75 (5.000 per pack)	4
58	HEX. SCREW M10 X 75	4
59	ELASTIC FLANGED NUT M10	7
60	BUSHING	8
61	COUSSINET *BUSHING (20.000 per pack)	16
62	Elastic Flanged Nut M10	1
64	R.A.S. SUSPENSION DECAL	2
65	SUSPENSION GREASE 10 X 400 G	0
