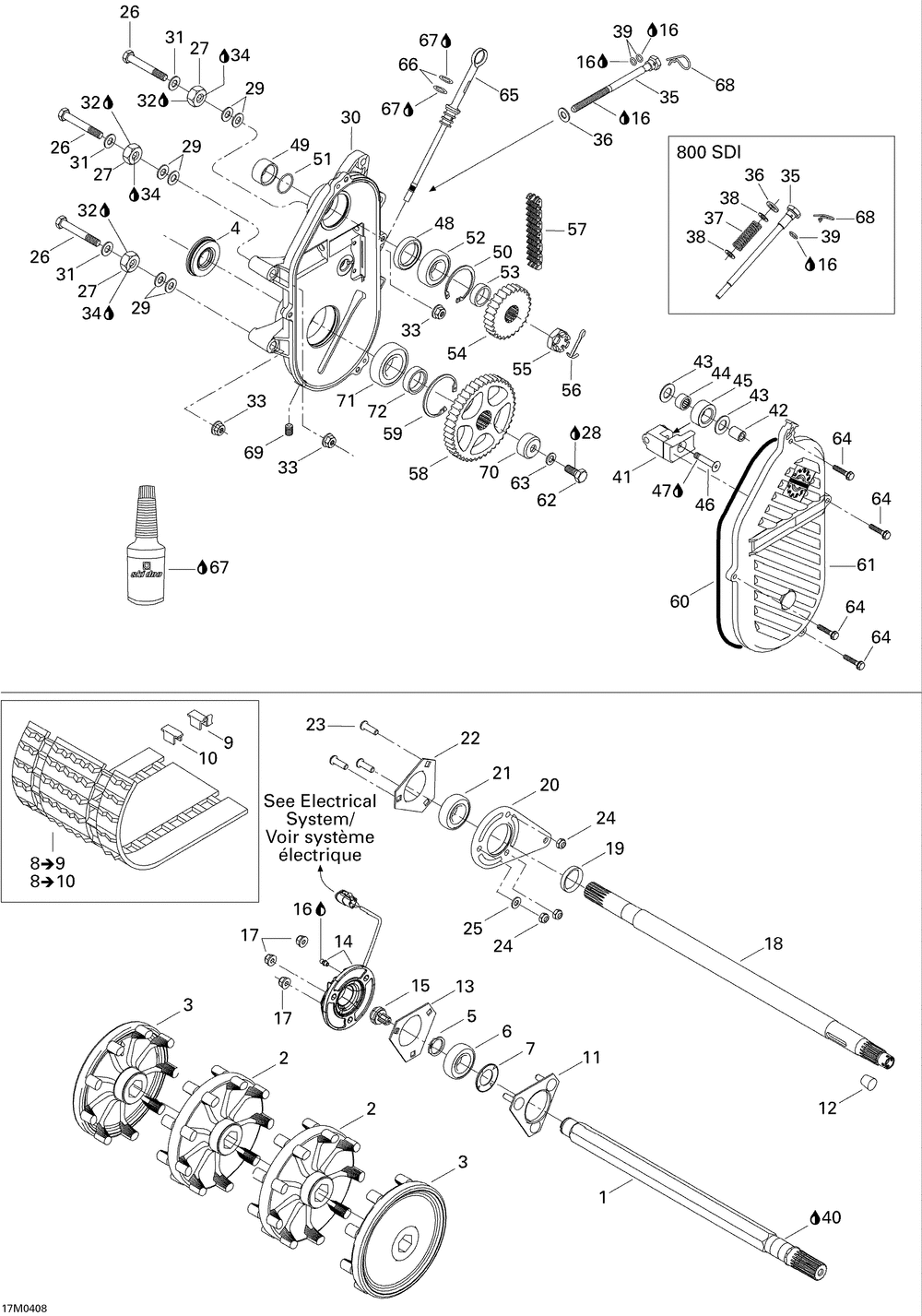

SKI-DOO Legend 800 SDI Legend 800 SDI 05- Drive System
05- Drive System
№ Наименование Примечание Кол-во
1 DRIVE AXLE 1
2 SPROCKET 9 TEETH 2
3 HALF SPROCKET 9 TEETH 2
4 OIL SEAL ASS Y 1
5 CIRCLIP (5.000 per pack) 1
6 BALL BEARING 1
7 BEARING PROTECTOR 1
8 TRACK 15" X 121" X 0.88" ASS Y Includes items 8 to 10 / Legend SE & Legend Sport 1
8 TRACK 15" X 136" X 0.88" ASS Y Includes items 15 to 16 1
9 GUIDE *CLIP Track 16X136X1.7 48
10 CLEAT Legend SE & Legend Sport (50.000 per pack) 48
11 BEARING HOUSING 1
12 CORK 1
13 FLANGE 1
14 FLANGE SPEEDO 1
15 MAGNETIC ADAPTOR 1
16 SUSPENSION GREASE 10 X 400 G 0
17 Hex. Flanged Elastic Nut M8 3
18 COUNTER SHAFT 1
19 SPACER 1
21 ENS ROULEMENT BILLE*BALL BEARING KIT 1
23 SOCKET HEAD SCREW M8 X 25 (5.000 per pack) 3
24 Hex. Elastic Stop Nut M8 3
25 Flat Washer 8 mm 1
26 HEX. SCREW M10 X 80 3
27 SPACER 3
28 LOCTITE 271 10 ML 0
29 RONDELLE *WASHER (5.000 per pack) 6
30 CHAINCASE 1
30 CHAINCASE 1
31 Washer 3
32 LOCTITE 767 ANTISEIZE LUBRICANT 8 OZ 0
33 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 3
34 LOCTITE 243 10 ML 0
35 ADJUSTMENT SCREW 1
35 ADJUSTMENT SCREW 1
36 Flat Washer 10 mm 1
36 RONDELLE *WASHER (5.000 per pack) 1
37 SPRING 1
38 RONDELLE TREMPE*WASHER-HARD GTX LTD (10.000 per pack) 2
39 O-RING (10.000 per pack) 2
39 O-RING (5.000 per pack) 1
41 CHAIN TENSIONER 1
41 CHAIN TENSIONER 1
42 SPACER 1
43 RONDELLE *WASHER (10.000 per pack) 2
44 NEEDLE BEARING 1
45 ROLLER 1
46 SCREW 1
48 OIL SEAL 1
49 SPACER 1
50 CIRCLIP (10.000 per pack) 1
51 O-RING (2.000 per pack) 1
52 BALL BEARING 1
53 SHIM 1
54 SPROCKET 23 TEETH Package Sport 1
54 SPROCKET LARGE 26 TEETH Legend SE 800 SDI 1
54 SPROCKET 24 TEETH Legend SE GT 800 SDI 1
55 HEX. CASTLE NUT M20 X 1.5 1
56 PIN COTTER (10.000 per pack) 1
57 DRIVE CHAIN LARGE 76 LINKS 1
57 DRIVE CHAIN 74 LINKS 1
58 ROUE DENTEE 43D*SPROCKET 43TH 1
59 CIRCLIP INTERIOR 1
60 O-RING 1
61 CHAINCASE COVER 1
62 HEX. SCREW M10 X 25 (10.000 per pack) 1
63 WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) 1
64 HEX. FLANGED SCREW M6 X 30 (10.000 per pack) 4
65 FILLER CAP ASS Y 1
66 O-RING (10.000 per pack) 2
67 HUILE *XPS SYNTH OIL CHAINCASE OIL (16.000 per pack) 0
68 GOUP.SURETE *COTTER PIN (5.000 per pack) 1
69 Plug 1/8?-27 1
70 CAP 1
71 BALL BEARING 1
72 SHIM 1
