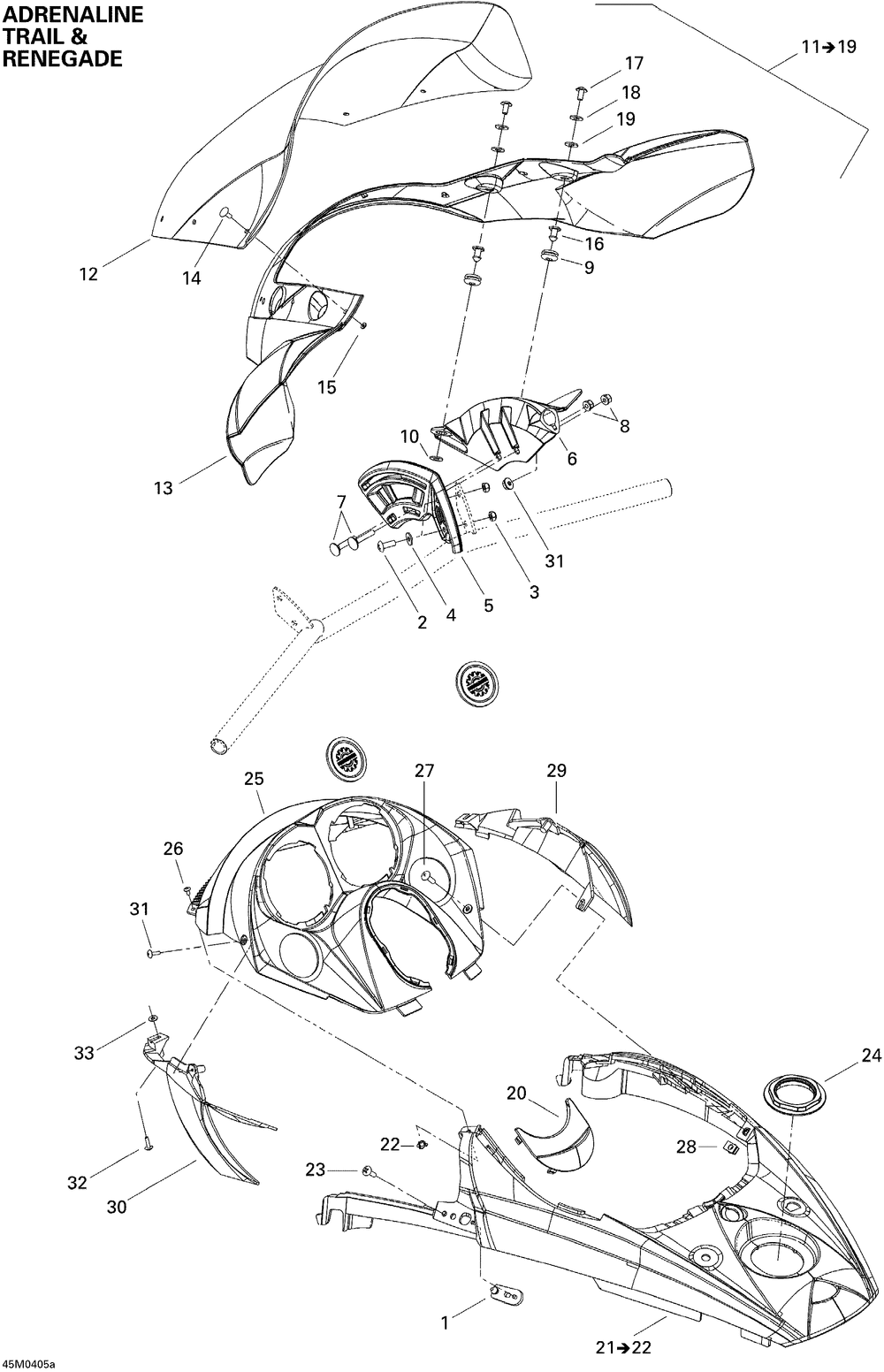

09- Windshield And Console (adrenaline Trail & Renegade)

№	Наименование	Кол-во
	CENTER CONSOLE YELLOW Includes 10 to 11	1
	CENTER CONSOLE Includes 11 to 12 800R (Blue/Black)	1
	LH FIXING PLATE	1
	LH WINDSHIELD SUPPORT	1
1	HOOD LATCH	2
2	TORX SCREW M6 X 16 (12.000 per pack)	4
3	HEX. NUT M6 (25.000 per pack)	4
4	FLAT WASHER 6 MM (10.000 per pack)	4
5	RH FIXING PLATE	1
6	RH WINDSHIELD SUPPORT	1
7	CARRIAGE BOLT M6 X 35 (10.000 per pack)	4
8	Hex. Elastic Flanged Nut M6	4
9	CAP	2
10	RONDELLE *GROMMET (10.000 per pack)	4
11	TORX SCREW M5 X 14 Includes items 11 to 19 (10.000 per pack)	1
12	WINDSHIELD MEDIUM	1
13	AIR DEFLECTOR	1
14	WINDSHIELD DART (10.000 per pack)	8
15	Push Nut	8
16	KNOB (6.000 per pack)	4
17	Torx Screw M5 X 14	4
18	WASHER M5 (10.000 per pack)	4
19	Rubber Washer 5 mm	4
20	CONSOLE CAP	1
21	CENTER CONSOLE BLACK Includes 10 to 11 (Black/Yellow)	1
22	T-NUT M4 (5.000 per pack)	2
23	TORX SCREW M6 X 20 Model-RT STD	2
24	CONSOLE NUT	1
25	SUPPORT	1
26	TORX SCREW M4 X 8 (10.000 per pack)	2
27	TORX SCREW M5 X 20 (10.000 per pack)	2
28	PANEL NUT M5 X 0.8 (10.000 per pack)	2
29	RH AIR DEFLECTOR	1
30	LH AIR DEFLECTOR	1
31	PHILLIPS SCREW K40 X 16 (5.000 per pack)	2
32	SCREW PLASTITE TYPE K-40 M4 X 16 (2.000 per pack)	2
33	Flat Washer 4 mm Stainless	2
