SKI-DOO Skandic WTLC 600 Skandic WTLC 600 09- Frame And Seat (2 Up)

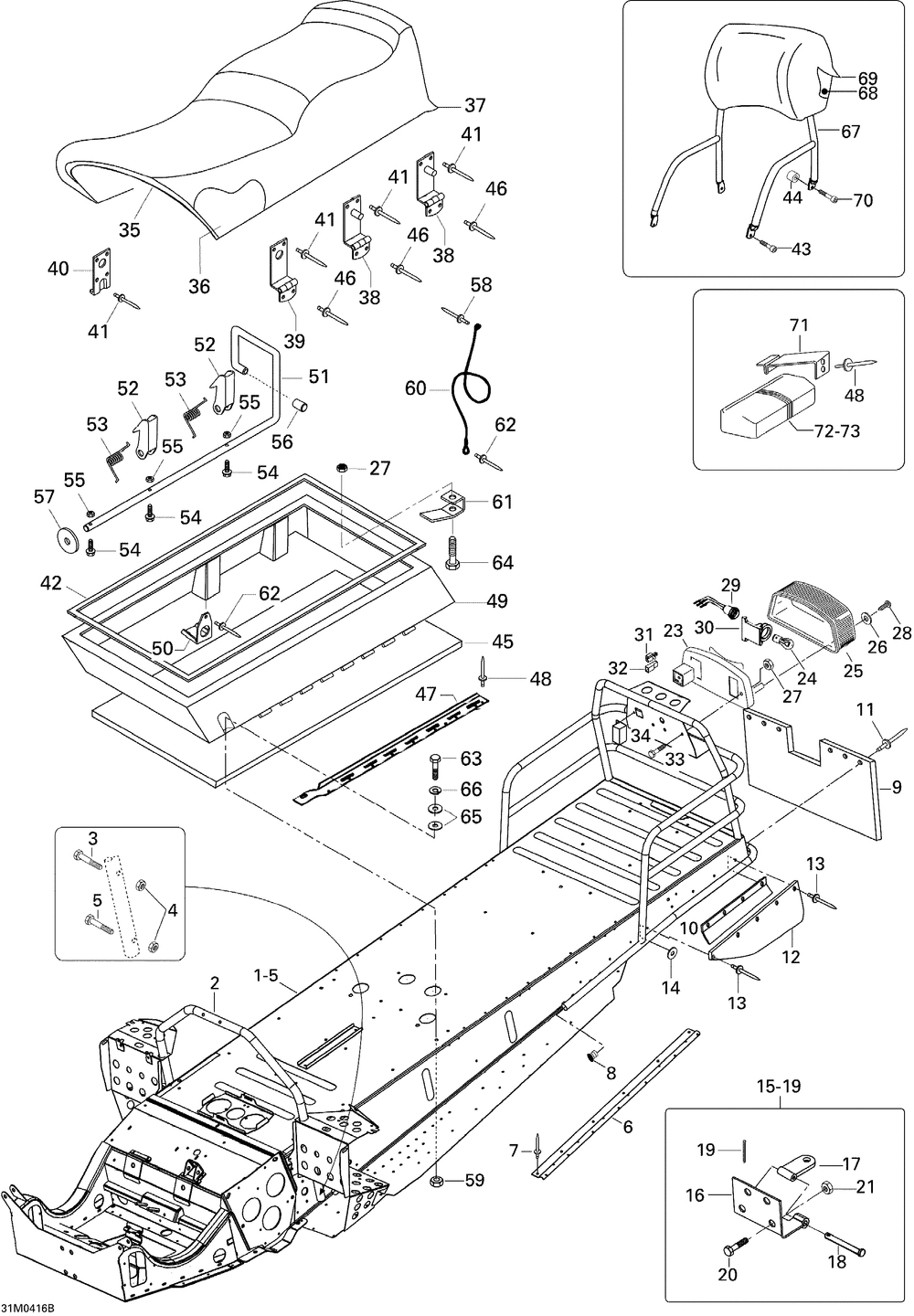

09- Frame And Seat (2 Up)
№ Наименование Примечание Кол-во
1 FRAME ASS Y WTLC Includes Items 1 to 5 1
2 HANDLE SUPPORT 1
3 HEX. SCREW M6 X 30 (10.000 per pack) 0
5 HEX. SCREW M6 X 40 (10.000 per pack) 0
6 BANDE ANTI-DER*ANTISLIP RUNNING BOARD 2
8 CAPUCHON *PLUG 2
9 SNOW GUARD 1
10 SIDE SNOW GUARD GUIDE 2
11 RIVET NOIR *RIVET-BLACK (10.000 per pack) 0
12 SIDE SNOWGUARD 2
13 RIVET PROFIX 4.0X13 AL MUSTA(1=50PCS) (50.000 per pack) 0
14 WASHERS A43 DIN9021-ST M ZNE(1=10PCS) (10.000 per pack) 0
16 FITTING PLATE 1
17 TONGUE WELD 1
18 PIN-RETAINER 1
19 COTTER PIN (10.000 per pack) 1
20 HEX. SCREW M8 X 20 (10.000 per pack) 0
21 Hex. Elastic Stop Nut M8 0
23 LIGHT HOUSING 1
24 BULB (10.000 per pack) 0
25 LENS 1
26 WASHER (10.000 per pack) 0
27 HEX. FLANGED ELASTIC NUT M6 (10.000 per pack) 3
28 PHILLIPS TAPPING SCREW M3.9 X 25 (10.000 per pack) 0
29 BULB SUPPORT 1
31 FEMALE TERMINAL (5.000 per pack) 3
32 FEMALE TERMINAL HOUSING 1 CIRCUIT (5.000 per pack) 3
34 COVER 1
35 SUB SEAT 1
36 FOAM SEAT 1
37 HOUSSE SIEGE *SEAT COVER ST/ SKI-DOOWT 1
38 HINGE PLATE 2
39 CHARNIERE *HINGE 1
40 LOCK PLATE WELD. 2
41 RIVET ACD 616 4.8X23.5 AL BLACK(1=10PCS) (10.000 per pack) 20
42 JOINT *SEALING STRIP PROFIL 1
43 SCREW-SOCKET 2
44 ENTRETOISE*SPACER 2
45 MOUSSE *FOAM SUV 550 1
45 MOUSSE*SEATBOX COVER SUV 600 1
46 RIVET TSPD68 4.8X12 (1 PAC 50 PC) (50.000 per pack) 0
47 RIVET STEEL 4.8X8 ZN BRIGHT (1=50PCS) (50.000 per pack) 0
47 CLIP PLATE L.H. 1
47 CLIP PLATE R.H. 1
48 SEAT BOX 1
49 SUPPORT 2
50 AXE*LOCKING ROD 1
52 RESSORT *SPRING 2
53 ALLEN SCREW M4 X 16 DIN 912M8.8(1=10PCS) (10.000 per pack) 0
54 Elastic Stop Nut M4 0
55 BOUCHON *CAP 1
57 Flat Washer 8 mm 0
59 NUT M6 (5.000 per pack) 0
60 SEAT RETAINER CABLE 1
60 RETAINER CABLE L=570MM SUV 600 1
61 RETAINER CABLE LUG SUV 550 1
62 RIVET BLACK 4.8X16 AL LONG MAND.(1=25PC (25.000 per pack) 0
63 ALLEN SC. M6 X 20 DIN912M8.8ZNE(1=10PCS) (10.000 per pack) 0
64 SCREW M6 X 30 SUV 550 (10.000 per pack) 0
65 FLAT WASHER 6 MM (10.000 per pack) 4
66 WASHER-LOCK BLACK DIN.127B (10.000 per pack) 0
67 BACKREST WELD. 1
68 FOAM BACKREST 1
69 HOUSSE DOSSIER *COVER-BACKREST 1
70 VIS ALLEN*ALLEN SCREW (10.000 per pack) 2
71 RESSORT *SPRING-HOLDER 1
72 TOOL KIT 1
73 COFFRE OUTILS *BOX-TOOL ASSY. 1
