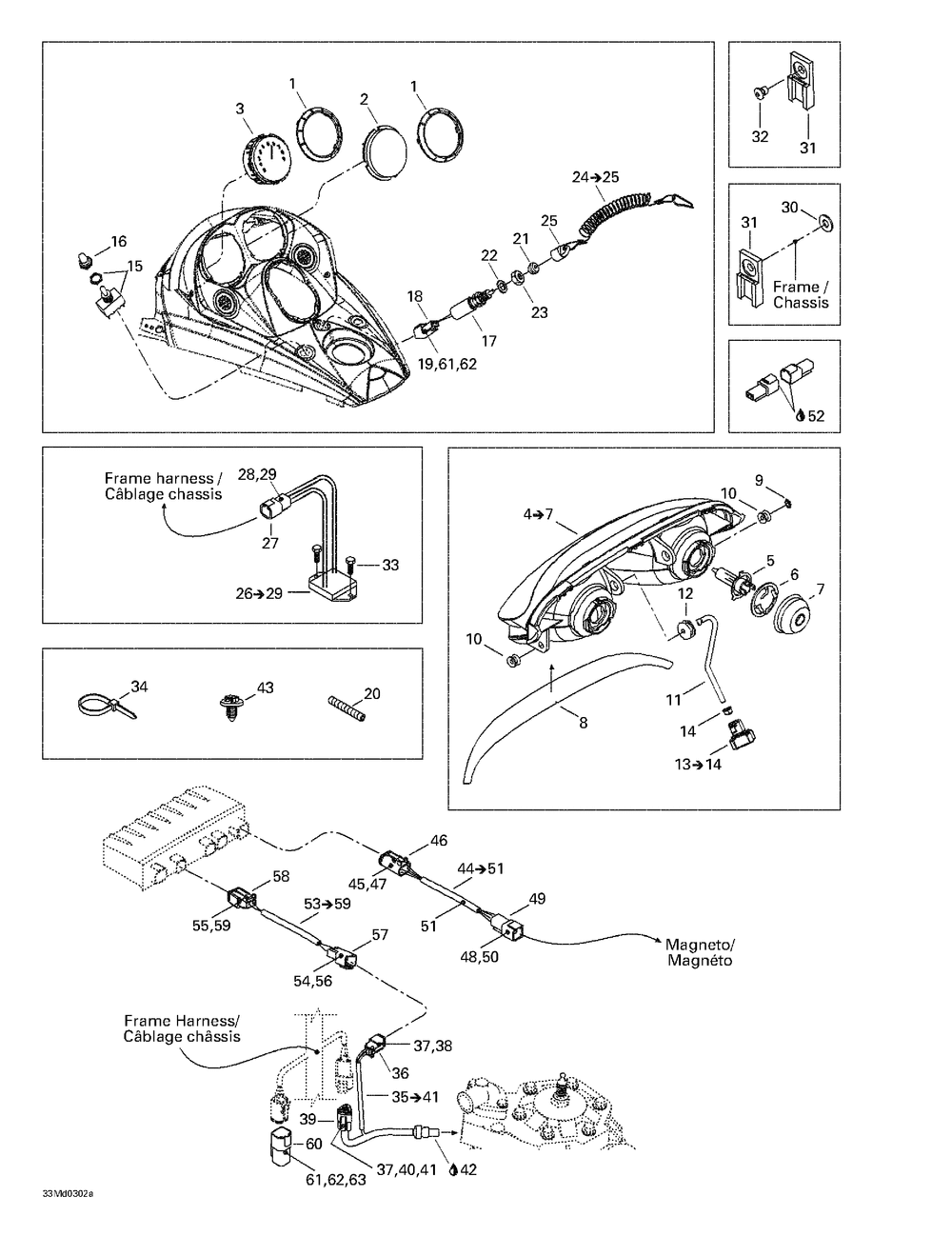

10- Electrical System

№	Наименование	Кол-во
	Tie-Rap 173 mm	0
	Tie-Rap 350 mm	0
	Tie-Rap 180 mm	0
1	GAUGE RING	2
2	GAUGE HOLE COVER	1
4	HALOGEN HEADLAMP ASS Y Includes items 4 to 7	1
5	HALOGEN BULB 60/55 W 12 V	2
6	BULB HOLDER	2
7	COVER	2
8	HEADLAMP DECAL	1
9	Push Nut	2
10	HEADLAMP BUSHING (5.000 per pack)	2
11	ADJUSTER ROD	1
12	GROMMET	1
13	MANETTE *HANDLE Includes 12 to 13	1
14	Hex. Flanged Elastic Nut M6	1
15	SWITCH (HEATING GRIP)	1
16	SWITCH COVER Model-SE (4.000 per pack)	1
17	BRAKE SWITCH	1
18	MALE TERMINAL HOUSING 2 CIRCUITS	1
19	Male Lock, 3 Circuits	1
20	Vinyl Tubing, Low Temperature (3.000 per pack)	0
21	PLUNGER CAP (5.000 per pack)	1
22	Flat Washer 10 mm	1
23	SWITCH NUT (5.000 per pack)	1
24	CAP ASS Y	1
26	VOLTAGE REGULATOR Includes 27 to 30	1
27	BLOC 4 CIRC.FEM*HOUSING-TAB	1
28	MALE TERMINAL	0
29	CALE 4 CIRC.MAL*WEDGE-4 WAYS M	1
30	FLAT WASHER (10.000 per pack)	1
31	CLIP	5
32	Pop Rivet 3/16"	4
33	HEX. FLANGED SCREW M6 X 16 (10.000 per pack)	2
34	Tie-Rap 94 mm	0
36	Female Terminal Housing, 2 Circuits	1
37	Female Terminal	0
38	Female Lock, 2 Circuits	1
39	FEMALE TERMINAL HOUSING 3 CIRCUITS	1
40	FEMALE LOCK 3 CIRCUITS	1
41	Sealing Cap	0
42	LOCTITE 592 PIPE SEALANT 50 ML Package T	0
43	MOUNT DART (5.000 per pack)	1
47	CALE 4 CIRC.MAL*WEDGE-4 WAYS M (10.000 per pack)	1
48	MALE TERMINAL (10.000 per pack)	0
49	MALE TERMINAL HOUSING 4 CIRCUITS	1
50	MALE LOCK 4 CIRCUITS	1
51	Tubing 6 mm (3.000 per pack)	0
52	DIELECTRIC GREASE 150 G	0
53	TEMPERATURE HARNESS Includes 47 to 53	1
54	MALE TERMINAL (10.000 per pack)	0
56	MALE LOCK 2 CIRCUITS	1
60	MALE TERMINAL HOUSING 6 CIRCUITS	1
62	MALE TERMINAL (10.000 per pack)	0
