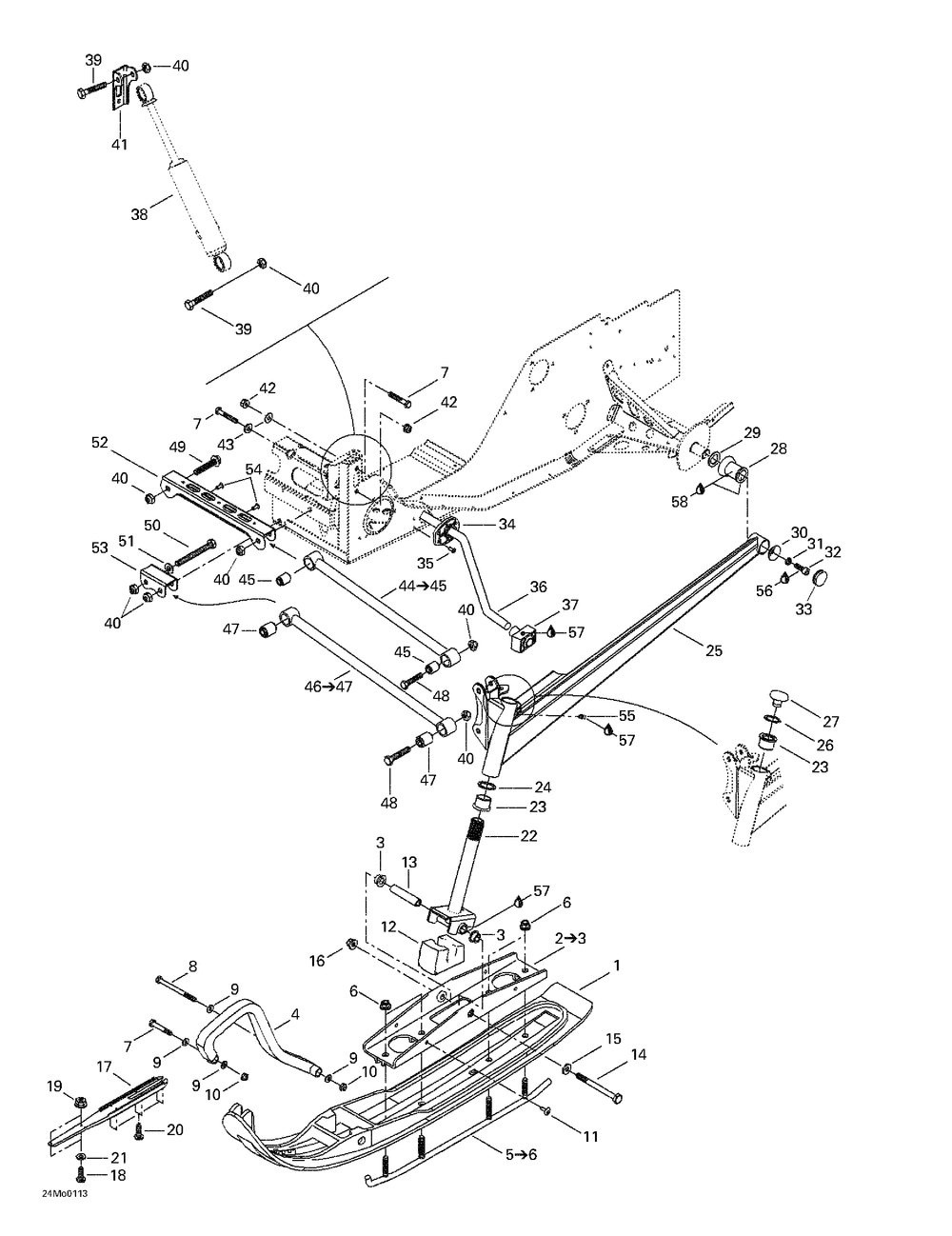

07- Front Suspension And Ski

SKI-DOO Grand Touring 500/600/700 Grand Touring 500/600/700 07- Front Suspension And Ski

№	Наименование	Кол-во
	SKI-LINER FLEX MX-Z 500. MX-Z 600.	2
	LH SHOCK BRACKET	1
	LH ARM	1
1	SKI-LINER FLEX	2
2	BRIDGE Includes 2 - 3.	2
4	BLACK HANDLE	2
5	CARBIDE RUNNER	1
6	ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack)	8
7	HEX. SCREW M8 X 50 (10.000 per pack)	6
8	SCREW-HEX. M8 X 100 (10.000 per pack)	2
9	Flat Washer 8 mm	8
10	Hex. Elastic Stop Nut M8	4
12	SKI STOPPER	2
13	SPACER (2.000 per pack)	2
14	HEX. SCREW M10 X 110 (5.000 per pack)	2
15	RONDELLE *WASHER (25.000 per pack)	2
16	FLANGED NUT M10 (5.000 per pack)	2
17	CON.PROACTIF *CONTROL-PROAC. GT	2
19	FLANGED ELASTIC NUT M5 (4.000 per pack)	4
20	PHILLIPS SCREW tahos_10 X 7/8" (6.000 per pack)	12
21	FLAT WASHER 6 MM (10.000 per pack)	4
22	SKI LEG	2
23	CUSHION	4
24	RONDELLE *WASHER (10.000 per pack)	2
25	RH ARM	1
26	CIRCLIP (10.000 per pack)	2
27	CAP	2
28	DAMPER	2
29	RONDELLE *WASHER (10.000 per pack)	2
30	CUP	2
31	WASHER-LOCK DIN.127B (50.000 per pack)	2
32	Socket Head Screw M8 X 25	2
33	CAP (10.000 per pack)	2
34	BUSHING	2
35	Pop Rivet 3/16"	8
36	STABILISATEUR P*STABILISATOR-P	1
37	SLIDING BLOCK (5.000 per pack)	2
39	HEX. SCREW M10 X 55 (5.000 per pack)	4
41	RH SHOCK BRACKET	1
42	Hex. Flanged Elastic Nut M8	4
43	Washer	4
44	UPPER ARM ASStahos_Y Includes 41 To 42	2
45	COUSSINET *BUSHING	4
46	LOWER ARM ASStahos_Y Includes 43 To 44	2
49	HEX. FLANGED SCREW M10 X 55 (5.000 per pack)	2
50	HEX. SCREW M10 X 95 (5.000 per pack)	2
51	Flat Washer 10 mm	2
52	UPPER ARM BRACKET	1
53	LOWER ARM BRACKET	1
54	Pop Rivet 3/16"	2
55	GREASE FITTING (10.000 per pack)	2
56	LOCTITE 243 10 ML	0
57	SUSPENSION GREASE 10 X 400 G	0
58	GRAISSE *GREASE	0
