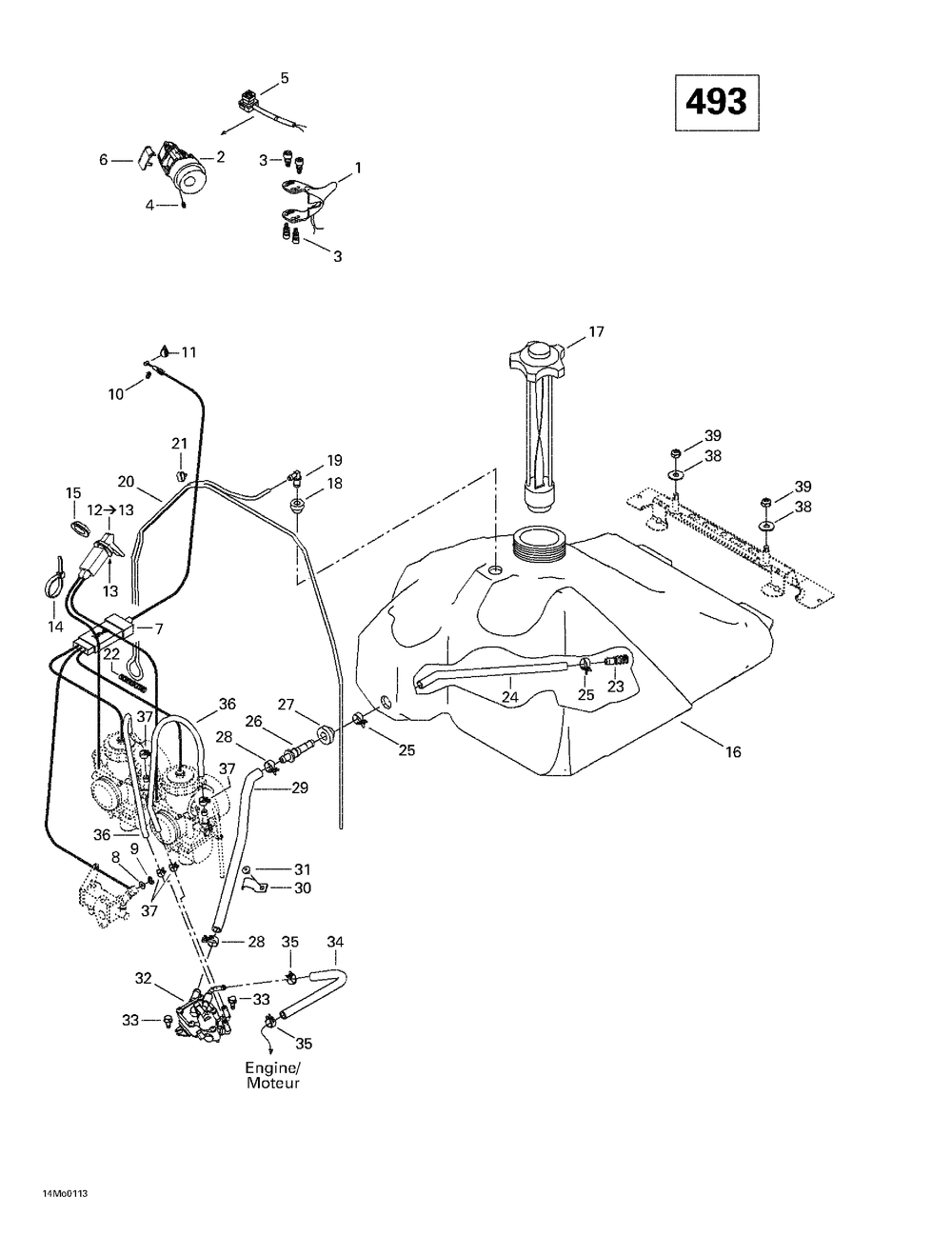

02- Fuel System (493)

№	Наименование	Кол-во
1	MANETTE ASS. *HANDLE-ASSY SUV 600	1
2	THROTTLE HOUSING	1
3	FLANGED SCREW (10.000 per pack)	4
4	SOCKET SET SCREW M8 X 10 (5.000 per pack)	1
5	KILL SWITCH	1
6	SWITCH COVER	1
7	CABLE ACCELERAT*THROTTLE CABLE MX-Z 500.	1
8	FLAT WASHER 8 MM NYLON (5.000 per pack)	1
9	CIRCLIP (10.000 per pack)	1
10	CIRCLIP (10.000 per pack)	1
11	DIELECTRIC GREASE 150 G	0
12	CABLE ETRANG. *CABLE-CHOKE Includes 13 - 14. MX-Z 500.	1
13	WASHER-LOCK INT.TEETH (3.000 per pack)	1
14	Tie Rap	1
15	PLASTIC NUT	1
16	FUEL TANK	1
17	FUEL TANK CAP	1
18	GROMMET (10.000 per pack)	1
19	MALE CONNECTOR (5.000 per pack)	1
20	BOYAU AMORCE *LINE-PRIMER (30.000 per pack)	0
21	TUBE CLAMP	6
22	SPRING	1
23	FUEL FILTER	1
24	BOYAU POLYURE *HOSE-POLYURETHANE	1
25	NORMA SPRING CLAMP (5.000 per pack)	2
26	MALE CONNECTOR (5.000 per pack)	1
27	GROMMET (2.000 per pack)	1
28	UNIVERSAL SPRING CLAMP (50.000 per pack)	2
29	FORMED HOSE	1
30	CLIP	1
31	Pop Rivet 3/16"	1
32	POMPE A ESSENCE*PUMP-FUEL Formula Deluxe 500.	1
33	HEX. SCREW M6 X 12 (10.000 per pack)	2
34	HOSE 1/4	0
35	Spring Clamp	2
36	BOYAU FORME *TUBE-FORMED	2
37	Spring Clamp	4
38	Flat Washer 8 mm	2
39	Hex. Elastic Stop Nut M8	2
