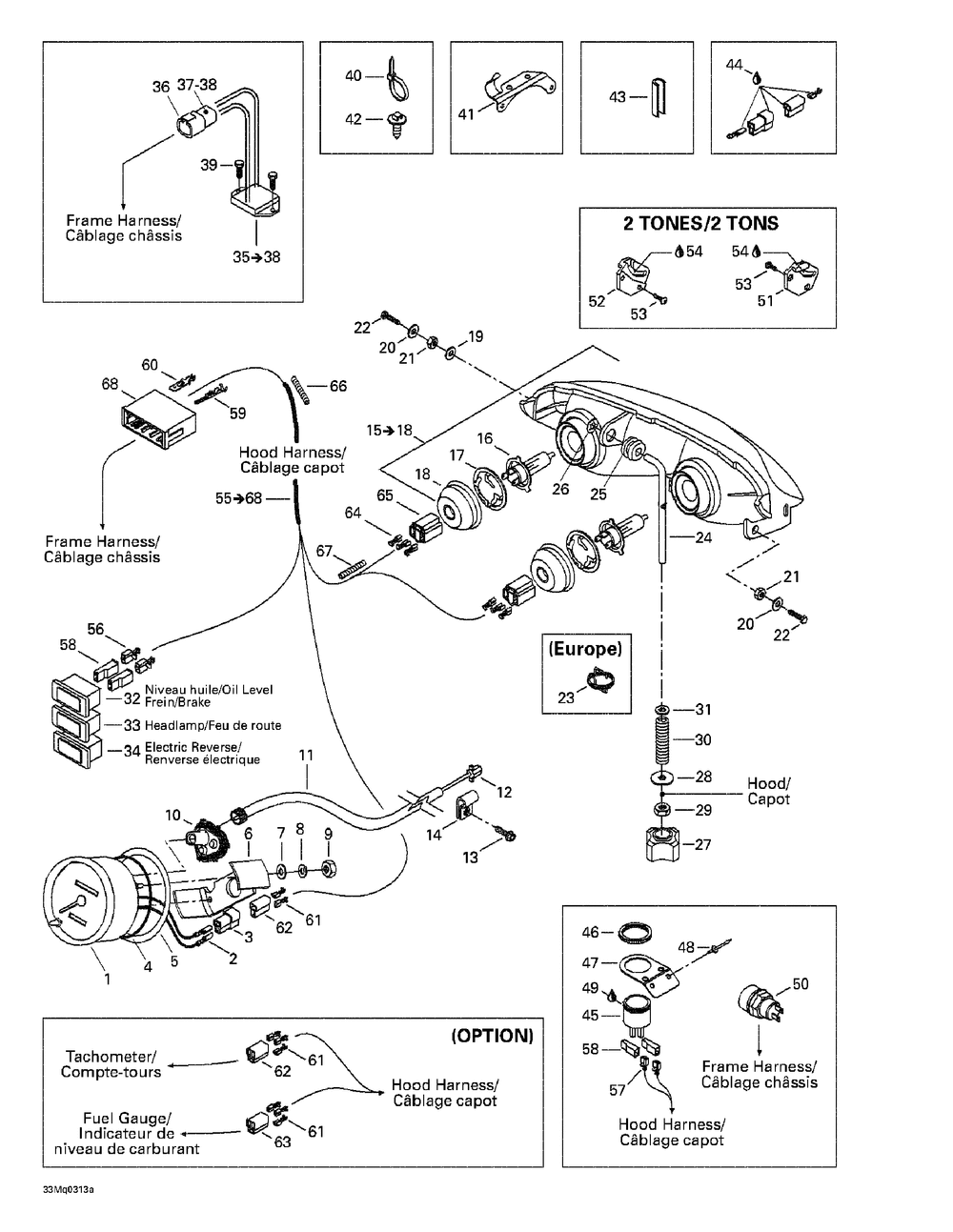

SKI-DOO Summit 550 F Summit 550 F 10- Hood Harness
10- Hood Harness
№ Наименование Примечание Кол-во
Tie-Rap 173 mm 0
Tie-Rap 180 mm 0
SPEEDOMETER MPH 0
1 SPEEDOMETER KMH/MPH 1
2 MALE TERMINAL (10.000 per pack) 2
3 MALE HOUSING (5.000 per pack) 1
4 JOINT TORIQUE *PACKING 1
5 RONDELLE *WASHER 1
6 CASE HOLDER 1
7 FLAT WASHER (10.000 per pack) 2
12 SPEEDO DRIVE INSERT (10.000 per pack) 1
14 Cable clip 3
15 HALOGEN HEADLAMP ASS Y Includes items 4 to 7 1
16 HALOGEN BULB 60/55 W 12 V 2
17 BULB HOLDER 2
18 COVER 2
19 Flat Washer 10 mm 1
20 FLAT WASHER M5 (10.000 per pack) 2
21 NUT M5 2
22 HEX. SCREW M5 X 35 (10.000 per pack) 2
23 SPRING Europe 1
24 ADJUSTER ROD 1
25 GROMMET 1
26 Push Nut 1
27 HANDLE 1
28 RONDELLE *WASHER (25.000 per pack) 1
29 Elastic Stop Nut M6 1
30 SPRING 1
31 FLAT WASHER 6 MM (10.000 per pack) 1
32 PILOT LAMP OIL LEVEL/BRAKE 1
33 PILOT LAMP HEADLAMP 1
34 PILOT LAMP ELECTRIC REVERSE 1
35 VOLTAGE REGULATOR Includes 27 to 30 1
36 BLOC 4 CIRC.FEM*HOUSING-TAB 1
37 MALE TERMINAL 4
38 CALE 4 CIRC.MAL*WEDGE-4 WAYS M 1
39 HEX. FLANGED SCREW M6 X 16 (10.000 per pack) 2
40 Tie-Rap 94 mm 0
42 MOUNT DART (5.000 per pack) 0
43 PROTECTION TRIM 0
44 DIELECTRIC GREASE 150 G 0
45 HORN 1
46 PLASTIC NUT 1
47 PLAQUE PEINTE *PLATE-PAINT 1
48 Pop Rivet 3/16" 2
49 SILICONE SEALANT 51388 300 ML 0
50 PUSH BUTTON 1
51 RH SUPPORT 1
52 LH SUPPORT 1
56 Female Terminal 0
57 FEMALE TERMINAL (5.000 per pack) 0
58 Female Terminal Housing, 1 Circuit 8
59 MALE TERMINAL (10.000 per pack) 0
60 MALE TERMINAL (10.000 per pack) 0
61 FEMALE TERMINAL (10.000 per pack) 0
62 FEMALE TERMINAL HOUSING 24 CIRCUITS (10.000 per pack) 1
63 LOGEMENT FEMEL.*HOUSING-FEMALE (10.000 per pack) 1
64 FEMALE TERMINAL (25.000 per pack) 0
65 FEMALE TERMINAL HOUSING 3 CIRCUITS (10.000 per pack) 2
66 Tubing 13 mm  (10.000 per pack) 0
67 TUBING 10 MM 0
68 MALE TERMINAL HOUSING 11 CIRCUITS 1
