SKI-DOO Skandic 440 Skandic 440 08- Rear Suspension

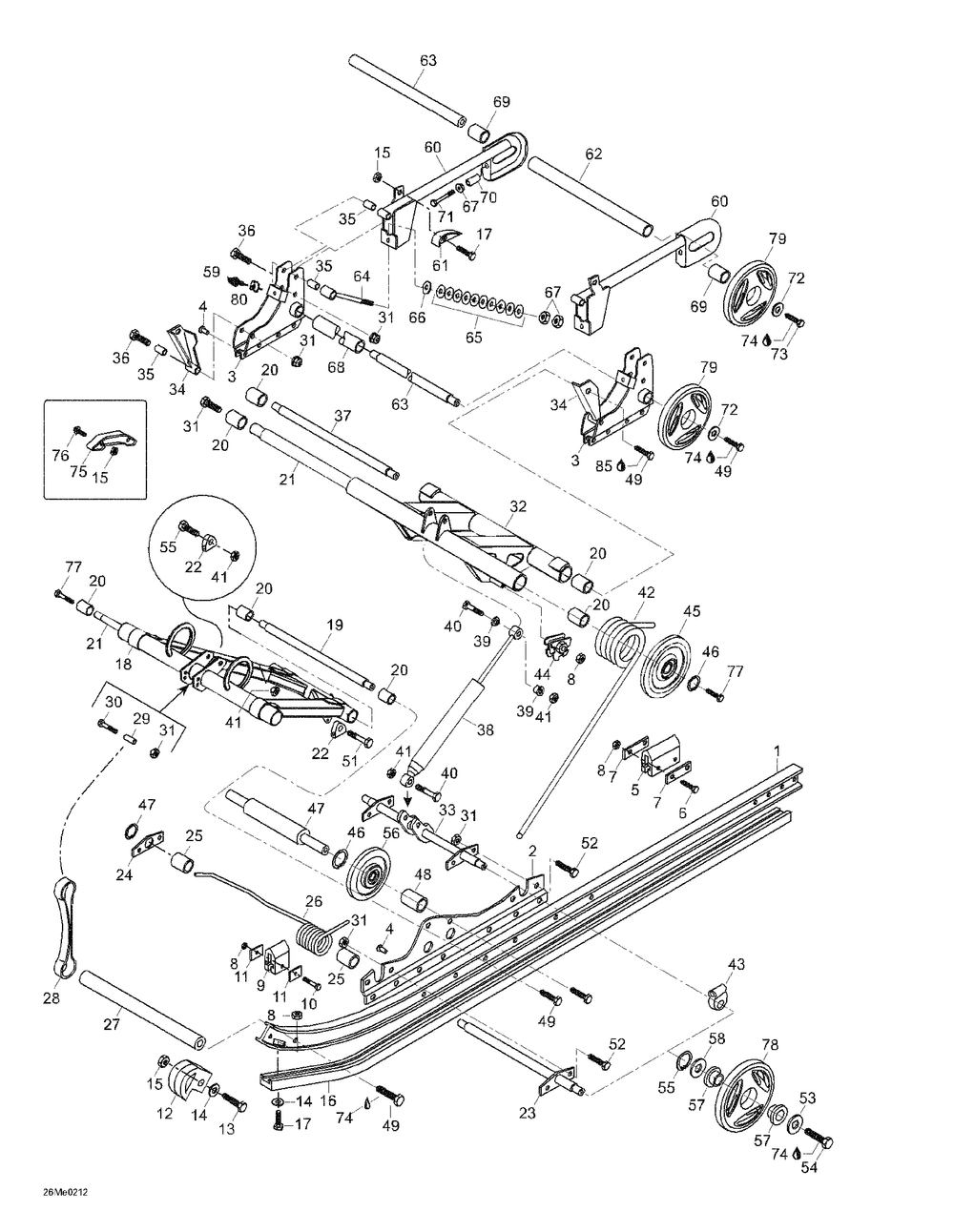

08- Rear Suspension
№ Наименование Примечание Кол-во
RH ADJUST CAM 1
CRANK ARM R.H. 1
RUNNER ASS Y R.H Includes 1 to 4 1
SUPPORT PLATE RH RUNNER 1
SPRING R.H. 1
SPRING R.H. 1
SUPPORT DROIT *SUPPORT RH 1
1 RUNNER 1
1 RUNNER ASS Y L.H Includes 1 to 4 1
2 SUPPORT PLATE LH RUNNER 1
3 SUPPORT FOR REARAXLE LH 1
4 RIVET 0
5 RUBBER STOPPER 2
6 HEX. SCREW M6 X 40 (10.000 per pack) 4
7 SUPPORT PLATE 4
8 Elastic Stop Nut M6 8
9 BUTEE CAOUT. *STOPPER-RUBBER 2
10 HEX. SCREW M6 X 30 (10.000 per pack) 2
11 PLAQUE *PLATE 4
12 RUNNER PROTECTOR 2
13 HEX. SCREW M6 X 25 (10.000 per pack) 2
14 FLAT WASHER 6 MM (10.000 per pack) 4
15 HEX. FLANGED ELASTIC NUT M6 (10.000 per pack) 8
16 RUNNER SHOE 2
17 HEX. SCREW M6 X 20 (10.000 per pack) 4
18 FRONT ARM WELDING 1
19 ARM SHAFT 1
20 BEARING 8
21 ARM SHAFT 2
22 SPRING ROLLER 4
23 ESSIEU *AXLE 1
24 SUPPORT PLATE 1
25 SUPPORT SPACER 4
26 SPRING L.H. 1
27 AXLE 1
28 STOPPER STRAP 1
29 SLEEVE 1
31 Hex. Elastic Stop Nut M8 15
32 REAR ARM 1
33 REAR IDLER AXEL 1
34 CRANK ARM LH 1
35 SPACER 6
36 HEX. SCREW M8 X 45 (10.000 per pack) 6
37 SWING SHAFT 1
38 AMORTISSEUR*SHOCK 1
39 SHOCK SPACER 2
40 HEX. SCREW M10 X 50 (10.000 per pack) 2
41 ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 5
42 SPRING L.H. 1
43 SPRING ROLLER 2
44 LH ADJUST CAM 1
45 BLACK WHEEL ASS Y 165 MM WT 550/WT 600 2
46 RETAINING RING 25X2 DIN471(1=10PCS) (10.000 per pack) 4
47 AXE SUPPORT *SHAFT-SUPPORT 1
48 SPACER 2
49 HEX SC. M10X 30 BN73 M8.8 ZNE(1=10PCS) (10.000 per pack) 10
50 HEX. SCREW M10 X 55 (5.000 per pack) 1
51 HEX. SCREW M10 X 35 (10.000 per pack) 2
52 HEX. SCREW M8 X 16 Manual Start (10.000 per pack) 8
53 RONDELLE *WASHER (10.000 per pack) 4
54 HEX SC. M8 X 16 BM73 M8.8 ZN(1=10PCS) (10.000 per pack) 4
55 CIRCLIP 20X1.75 DIN471 4
56 WHEEL 135 Skandic 500F. 2
57 CUSHION (10.000 per pack) 8
58 SHIM RING 20X28X1 DIN 988(1=10PCS) (10.000 per pack) 4
59 RUBBER STOPPER 2
60 EXTENSION TUBE RH 1
60 EXTENSION TUBE LH 1
61 TRACK STOPPER 2
62 SLEEVE 1
63 REAR SHAFT 2
64 BOULON AJUSTE.*BOLT-EYE ADJUSTER 2
65 CUP SPRING 28X10.2X1.25 (1=10PCS) (10.000 per pack) 42
66 FLAT WASHER 10 MM (5.000 per pack) 2
67 Hex. Nut M10 6
68 SLEEVE L=176 1
70 SPACER 2
71 HEX. SCREW M10 X 100 (5.000 per pack) 2
72 RONDELLE *WASHER (10.000 per pack) 4
73 HEX. SCREW WITH NYLON (10.000 per pack) 2
74 LOCTITE 243 10 ML 1
75 SLIDING PAD 2
76 BOLT CARRIAGE DIN.603 (2.000 per pack) 4
77 HEX SC. M10X 30 BN73 M8.8 MUP(1=10PCS) (10.000 per pack) 4
78 WHEEL 135 YELLOW Skandic 500F. Skandic 500F (SWT). 4
79 WHEEL 165 MM YELLOW 4
80 ADJUSTMENT PLATE EXTENSION 4
