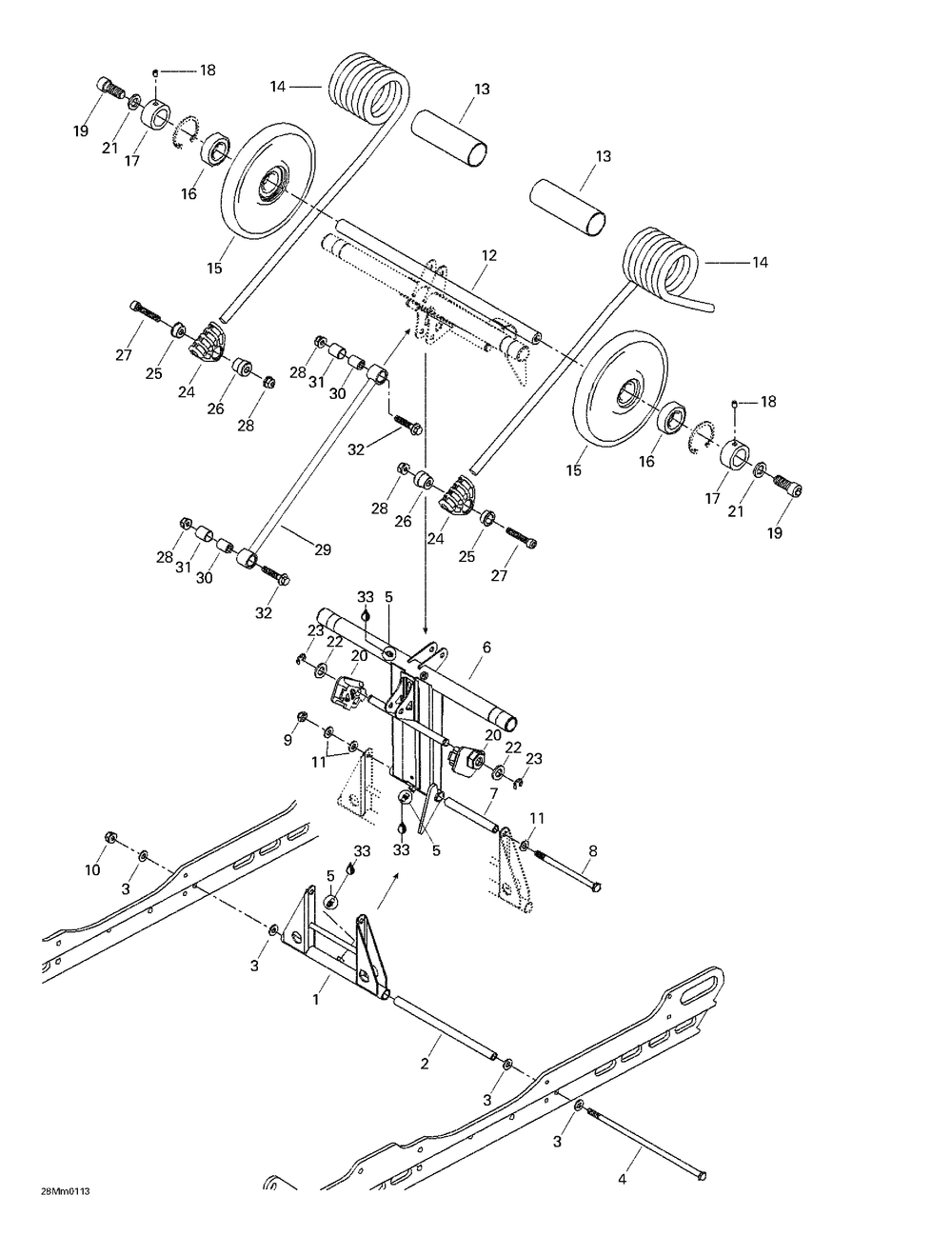

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| LH SPRING | 1 | ||
| RH SPRING | 1 | ||
| RH CAM ADJUSTER | 1 | ||
| RESSORT PEINT *SPRING-PAINT MX Z 380 F. MX Z 550 F. | 1 | ||
| 1 | PIVOT ARM | 1 | |
| 3 | Washer | 4 | |
| 4 | BOLT M8 X 248MM | 1 | |
| 5 | GREASE FITTING (10.000 per pack) | 3 | |
| 6 | REAR ARM | 1 | |
| 7 | UPPER AXLE PIVOT ARM | 1 | |
| 8 | BOLT M8 SHORT | 1 | |
| 9 | Hex. Elastic Stop Nut M8 | 1 | |
| 10 | Hex. Flanged Elastic Nut M8 | 1 | |
| 11 | Flat Washer 8 mm | 3 | |
| 12 | AXE TRANSV.ARR.*SHAFT-CROSS RR | 1 | |
| 13 | BUSHING | 2 | |
| 14 | RESSORT PEINT *SPRING-PAINT MX Z 380 F. MX Z 550 F. | 1 | |
| 16 | BALL BEARING | 2 | |
| 17 | RETAINING RING | 2 | |
| 18 | SOCKET SET SCREW M6 X 8 (5.000 per pack) | 2 | |
| 19 | Hex. Screw M10 x 35 (Scotch Grip) | 2 | |
| 20 | LH CAM ADJUSTER | 1 | |
| 21 | RONDELLE *WASHER (25.000 per pack) | 2 | |
| 22 | FLAT WASHER 12 MM (10.000 per pack) | 2 | |
| 23 | E-Circlip | 2 | |
| 24 | SPRING SUPPORT | 2 | |
| 25 | SPRING GUIDE AXLE | 2 | |
| 26 | COUSSINET RETEN*CUSHION-RETAIN. | 2 | |
| 27 | SOCKET HEAD SCREW M8 X 45 (25.000 per pack) | 2 | |
| 29 | THROTTLE ROD | 1 | |
| 30 | ROD AXLE (2.000 per pack) | 2 | |
| 31 | CUSHION | 2 | |
| 32 | Hex. Flanged Screw M8 X 40 | 2 | |
| 33 | SUSPENSION GREASE 10 X 400 G | 0 |
